Lower noise level mining mobile air compressor

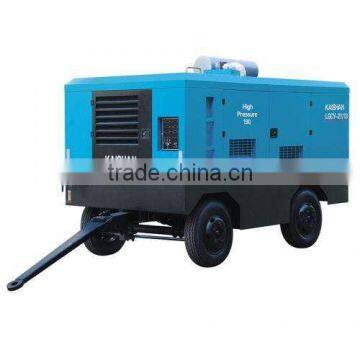

KAISHAN High Efficiency Two Stage Compression High Pressure Diesel Engine Portable Screw Air Compressor for Drilling Rig

Helps save oil consumption by 100 L per day.

Three-level air filtration system

Three-level oil and air separation system

Lubricant filter with a precision of 10 μ

Highly efficient refrigeration system

Axial flow valve

Fully enclosed chassis and soundproof enclosure

A single hanging ring on top is easy for loading and unloading purposes

Heavy-duty portable chassis

Microcomputer-controlled interface

Special lubricant for air compressors

Patented SKY2 Compressors

Designed with a maximum pressure of 40 bar

Rotary: The SKY 2 Screw Engine is a patented rotary with the highest efficiency. Its high pressure ensures its large displacement.

Two-stage compression: its flexible design, which is a world-class patented invention, is compatible to poppet valves.

With the heavy-duty SKF bearing and the direct drive in place, it provides noiseless gearwheels.

With its optimal structure, it provides the most reliable performance.

With a switch design for dual working conditions, users may choose the working conditions of 33 m3 at a pressure of 2.5 MPa, or the working conditions of 25 m3 at a pressure of 3.5 MPa. The switch can be done easily and quickly.

Heavy-duty electric diesel injection engine

Variable fuel injection system: direct fuel injection of high pressure common rail.

It can be equipped with heavy-duty electric diesel injection engines, including Cummins and Yuchai. Based on the loading conditions, oil injection can be electronically and precisely controlled, thus ensuring the best combustion state during the entire operation of an engine. This product features combustion that is more economical with better reliability and stronger dynamic performance.

Standard configuration

Patented SKY 2-40 Air Compressors

Heavy-duty electric diesel injection engine

Compressor controller

Soundproof enclosure

Eco-friendly and fully-enclosed chassis

Heavy-duty air filter

High-capacity fuel tank

Selective configuration

Air compressors with dual working conditions

Diesel engine

After-cooler

Air and water separation and drain valve

Fuel heating system

Remote control system

The Specifications for Two-stage Compression High-pressure Diesel-engine Portable Screw Air Compressor

Photoes Detailed:

Application:
