600cfm / 100psig diesel Portable mining Air Compressors for mining and drlling dig

KAISHAN  Diesel Engine Portable Screw Air Compressor for mine/construction/ water well

Diesel-engine Portable Screw Air Compressors

Diesel-engine Portable Screw Air Compressors are widely used in various industries for roads, railways, mines, water conservation and supplies, shipbuilding, city development, energy development, military services, and others. Kaishan’s Portable Screw Air Compressors (Diesel power series) are highly efficient and reliable with a full range of selections. The power range falls between 37 kW to 300 kW, the displacement covers up to 40 m³/min, and the discharge pressure amounts up to 2.5 MPa.

Features of Kaishan’s Portable Screw Air Compressors (Diesel power series):

1. Compressor: With our patented large diameter, the master engine is directly connected to the diesel engine through highly flexible coupling. Without overdrive gear, the master engine rotates in parallel with the diesel engine, resulting in higher efficiency, better reliability, and longer service.

2. Diesel engine: Diesel engines under such domestic and overseas brands as Cummins and Yuchai comply with the national Tier 2 motor vehicle emission standards. These diesel engines have strong impetus with a low level of fuel consumption. They are also covered under the national after sales network, so users may quickly access complete services.

3. The air capacity control system is simple and reliable. Based on the size of the air capacity, air injection, as well as the automated diesel accelerator, can be automatically adjusted from 0% to 100%. As a result, diesel oil consumption can be optimized.

4. With an intelligence microcomputer in place, many types of operating data can be effectively monitored, including discharge pressure, discharge temperature, diesel rotational speed, oil pressure, water temperature, and oil capacity. In addition, it is built with an automated alarm system and protective shutdown mechanism.

5. With multilevel air filters, our products can operate in a dusty working environment. Our multilevel fuel filters are also built to accommodate the current oil quality in the domestic market. Featuring an oil and water cooler with an ultra-high capacity, our compressors are also suitable for environments with a high temperature or high pressure.

6. With vast maintenance and repair space, all components and parts that require maintenance are completely accessible, including maintenance work on air filters, oil filters, fuel tanks, batteries, and oil coolers, thus reducing shutdown time.

7. Despite adverse topographic conditions, our products can be flexible and portable. Each compressor is equipped with a hanging ring for safe loading and transporting purposes.

The Parameters of Diesel-engine Portable Screw Air Compressor:

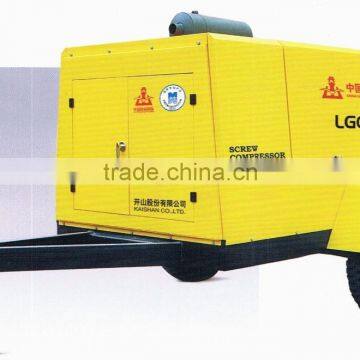

Photoes detailed:

Application:

For more details, pls contact me.
