Home > Products > Piston Air Compressor > Pisiton Type Compressor Mini Compressor Air Mining Compressor
Pisiton Type Compressor Mini Compressor Air Mining Compressor
US$ 1,140 - 1,290
/ Set
1 Set(Min. Order)
- Guangzhou
- T/T Credit Card
You May Like
-
Lower Noise Level Mining Mobile Air Compressor
-
Cost Efficiency, Mining Diesel Mobile Screw 20 Bar Air Compressor
-
Exquisite Workmanship Mining Piston Air Compressor 20 Bar
-
Portable Mining Piston 25KW Air Compressors 35HP
-
Belt--driven Air Compressor With 11kw/15HP,mining Air Compressor
-
Various Good Quality Mining Air Compressor
Product Details
| Condition | New | Type | Piston | |
| Configuration | Portable | Power Source | Diesel | |
| Lubrication Style | Lubricated | Mute | No | |
| Place of Origin | Zhejiang, China | Brand Name | KAISHAN | |
| Model Number | W-2.6/7;W-3/5;W-1.8/5... | Voltage | 380v/3ph/50hz(or Customized) | |
| Dimension(L*W*H) | 1800*870*1235mm | Weight | 480KG | |
| Certification | IAF; GC | Warranty | 1year | |
| After-sales Service Provided | No overseas service provided |
Product Description
KAISHAN digging,construction,mining air compressor,diesel portable piston air compressor
Diesel-engine Portable Mining Piston Air Compressor
Main Features:
-Value plate and spring strip: Made of special steel from Sweden and after special treatment; high efficient and reliable.
-Piston ring:Special design, integral casting; excellent flexibility, lowest lubricating oil consumption.
-Cylinder:Made of boron cast iron; wear resistant; special suitable for dust condition.
-Cylinder cover: Extrution process adopted; streamlined external appearance; good heat emission performance
-Crankshaft: Made from ductile cast iron, rare magnesium alloy after heat treatment and surface quenching; excellent performance.
The specification of Diesel-engine Portable Mining Piston Air Compressor
| Model | Working pressure | Capacity | Motor power | Cylinder Dia.φ * Qty | Air tank | Weight | Dimension | |
| bar | m³/min | kw | hp | mm * pcs | L | kg | mm | |
| W-1.8/5-J | 5 | 1.80 | 15 (S1100) | φ100*3 | 75 | 300 | 1700*710*1000 | |

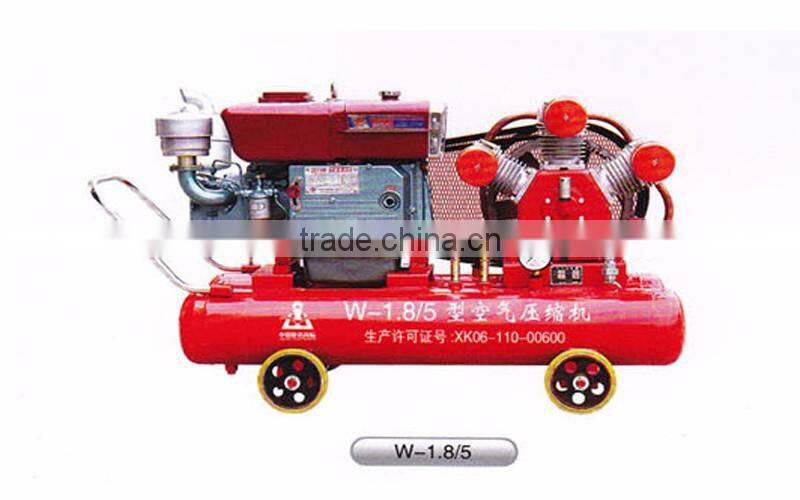

| W-1.8/5 | 5 | 1.80 | 15 (S1100) | φ100*3 | 100 | 320 | 1700*710*1000 | |

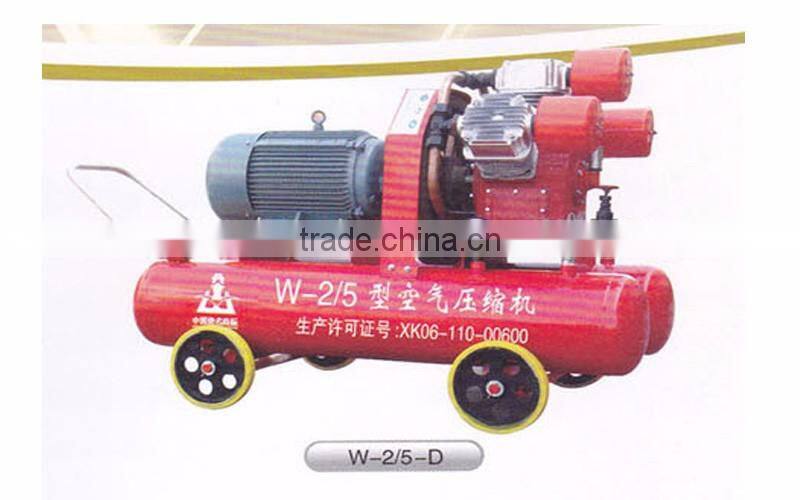

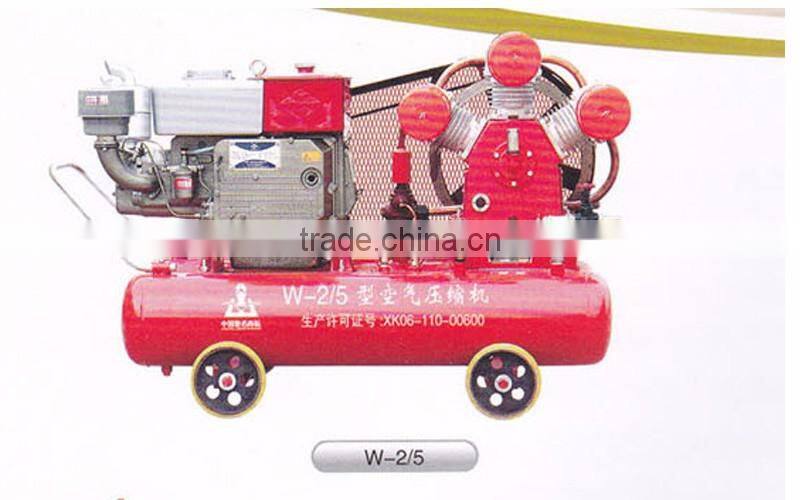

| W-2/5 | 5 | 2.00 | 15 (S1100) | φ115*3 | 140 | 450 | 1700*810*1050 | |
| W-2.6/5 | 5 | 2.60 | 20 (S1110) | φ115*3 | 140 | 490 | 1780*870*1235 | |

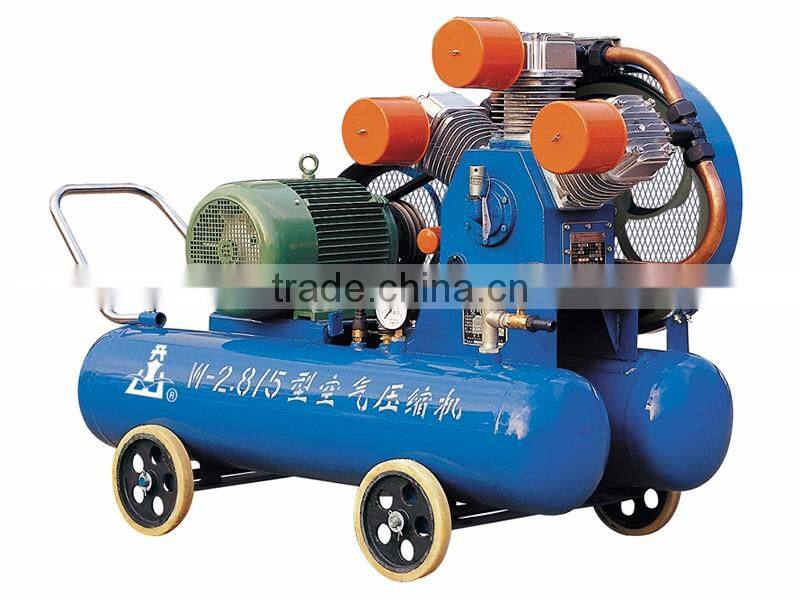

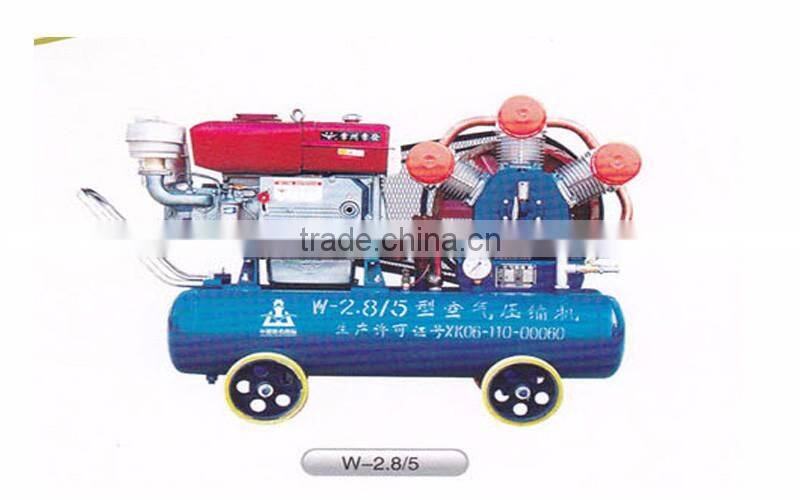

| W-2.8/5 | 5 | 2.80 | 22 (S1115) | φ115*3 | 200 | 550 | 1780*870*1235 | |
| W-2.8/5G-D | 5 | 2.80 | 15 | φ115*3 | 200 | 550 | 1780*870*1235 | |
| W-2.8/5G-ZD | 5 | 2.80 | 15 | φ115*3 | 200 | 550 | 1780*870*1235 | |
| W-3/5 | 5 | 3.00 | 22 (S1115) | φ125*3 | 220 | 600 | 1800*900*1300 | |
| 2V-3.5/5 | 5 | 3.50 | 25 (S1125) | φ115*4 | 240 | 650 | 1800*950*1300 | |
| 2V-3.5/5-ZD | 5 | 3.50 | 18.5 | φ115*3 | 240 | 650 | 1800*950*1300 | |
| 2V-4/5 | 5 | 4.00 | 25 (S1125) | φ120*4 | 240 | 700 | 1800*950*1300 | |
| 2V-4/5-ZD | 5 | 4.00 | 18.5/22 | φ120*4 | 240 | 700 | 1800*950*1300 | |
| W-3.2/7-ZD | 7 | 3.20 | 18.5 | φ125*3 | 230 | 550 | 1920*960*1350 | |
| W-3.2/7-D1 (single vessel) | 7 | 3.20 | 18.5 | φ125*3 | 230 | 550 | 1960*800*1390 | |
| W-1.8/7 | 7 | 1.80 | 15 (S1100) | φ100*3 | 140 | 450 | 1100*820*1100 | |
| W-1.8/7-D | 7 | 1.80 | 11 | φ100*3 | 140 | 450 | 1100*820*1100 | |

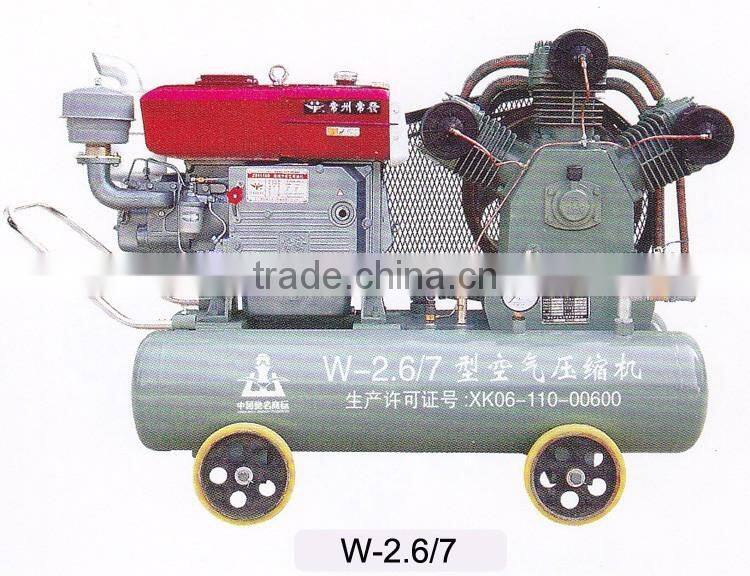

| W-2.6/7 | 7 | 2.60 | 22 (S1115) | φ125*3 | 200 | 480 | 1800*870*1235 | |
| W-2.6/7-D | 7 | 2.60 | 15 | φ125*3 | 200 | 480 | 1800*870*1235 | |

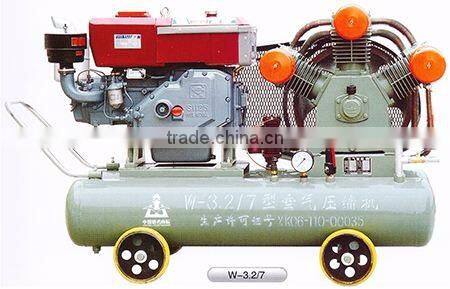

| W-3.2/7 | 7 | 3.20 | 25 (S1125) | φ125*3 | 230 | 550 | 1920*960*1350 | |
| W-3.2/7-D | 7 | 3.20 | 18.5 | φ125*3 | 230 | 550 | 1920*960*1350 | |
Detailed Photoes:

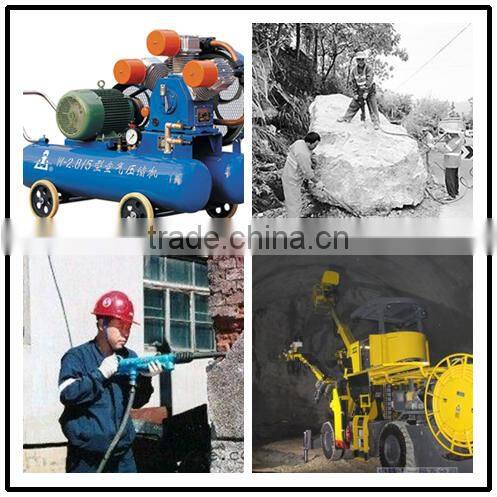

Application:
For more details, pls contact me.
