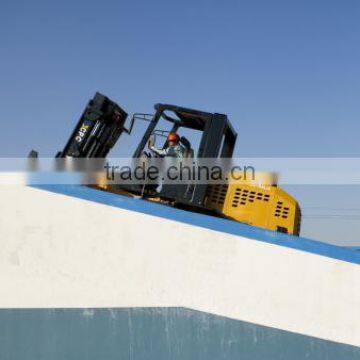

CPCY100 battery forkliftprices

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	SWLTD	Model Number	CPCY100
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	14500kgs	Max. Lifting Height	4500 mm
Min. Lifting Height	210 mm	Fork Length	1200-1800 mm
Fork Width	150 mm	Overall Dimensions	6650mm2620mm3400mm
Certification	CE ISO	After-sales Service Provided	Overseas service center available

Product Description

Specifications

1.Luxurious cabin
2.Air condition
3.3 stage 4.5m mast
4.Optional accessory

Features

Parameter

The main parameters CPCY100 CPCY100
No	item		unit	standard model	optional model
1	Limit load		KG	10000	10000
2	length	No fork	MM	5425	5425
2	length	Belt fork	MM	6650	6650
3	width		MM	2620	2620
4	height	Door frame height	MM	3035	3035
		Height bridge	MM	3400	3400
		When maximum lifting height	MM	4430	5880
5	wheelbase		MM	2745	2745
6	Before hanging distance		MM	930	930
7	Front wheel tread		MM	1850	1850
8	Wheel track after		MM	1805	1805
9	Ground clearance		MM	390	390
10	Maximum lifting height		MM	3000	4500
11	The door frame top rake/door frame caster Angle		(°)	6/12	6/12
12	Standard no load state of the overall quality		KG	14500
13	Load maximum lifting speed		MM/s	187	187
14	minimum turning radius		MM	5500	5500
15	With its maximum speed		KM/H	24	24
16	Gradeability		%	20	20
17	Load maximum traction hook		KN	75.0	75.0
18	Load center distance		MM	600	600
19	Engine model		----	Deutz WP6G125E22	Deutz WP6G125E22
