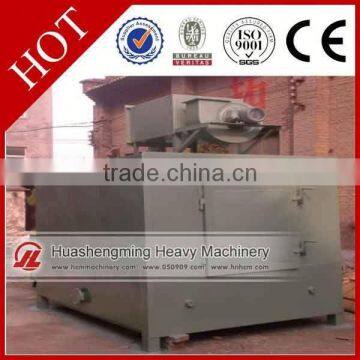

Charcoal stove wood sawdust carbonization furnace machine

wood sawdust carbonization furnace machine profile:
Our company charring furnace has increased carbonizing ratio (increased from 88%-99%) greatly and shorten the carbonization time form about 24 hours to 6-8 hours, easy to
operation and maintain,high efficiency, perfect working performance, energy-saving and environment protection.
Charring furnace adopts the structure of unique air storage chamber to fully reuse the smoke produced during the process of carbonization And 95%of the redundant smoke can
be used in drying and carbonizing,saving much fuel during the whole process,and prompt the quality of the final products.

wood sawdust carbonization furnace machine Features:
1. High carbonization rate ,no smoking ,little pollution,high efficiency
2. Newly developed carbonization kiln,which can dry the materials with the superfluous energy produced in the charring process.6-8 hours per stove and can work continuously.
3. The tube of fume extraction will recycle the gas-flow which come from the carbon basket during the charring process for continue warming the stove ,and it will save 70%
energy consumption and recycle 95% smoking
4. It can connect to the drying equipment directly to get more heating to dry the powder

wood sawdust carbonization furnace machine introduction
Carbonization Stove is used in the charcoal making line to carbonizing the dried bits of wood so as to improve the calorific value of the wood. Carbonization furnace for biomass
charcoal which greatly increased carbonizing ratio (increased from about 88% to 99%) and shortened the carbonizing time (from 24 hours to 6 hours), and shows the features of
easy operation, higher safety, high efficiency, and energy saving. This furnace is ideal equipment for wood briquettes to have anoxic distillation carbonization.

wood sawdust carbonization furnace machine advantages
1. Save the labor and energy.
2. Operation is easy, one person can operate 3-5 set carbonization stove.
3. Continuous operation, can working 24 hours continuously.
4. It will need 12 hours for carbonizing and Wait for about 8-12hours to make sure the burning briquettes are then open the furnace to check the quality the charcoal.
5. Advanced smoke-free energy-saving oven, equipped with high class filter than can quickly decompose the moisture and tar from smoke. To achieve no smoke and environment-
protection, this equipment has achieved China National Awards of Science and Technology.
6. Heater can be reuse and larger effective volume.
7. No-leak Gas, storage tar, long time life.


wood sawdust carbonization furnace machine main parts and functions
l main furnace, furnace body is formed by adding the greenhouse, thermal insulation layer.
l charring tank is made of high temperature resistant steel made tank, a sealing cover of the cylindrical tank body, in order to long-distance transport respectively to the
whole set, three tank volume respectively for the diameter of a:1460mm, b:1430mm, c:1400mm, height is2040mm.
l smoke recovery pipe is passed through the pipe, with the logs charring tank in the main furnace heating carbonization time ( carbonization ) smoke enters into the purifying
device for cooling purification, purification ( combustible gas ) into the main combustion chamber of the furnace combustion airflow carbonization.
l purification treatment system: the purification device is a double isolation type U channel, its purpose is in the carbonization chamber smoke in the absence of combustible
gas is produced before drainage points, filtering tar. It beat out the smoke basically does not pollute the air, mostly water vapor.
l With hoisting equipment: the main role is to facilitate loading and unloading, safety, reducing the labor intensity, complete the cooling carbonization preventing high
temperature burns.
