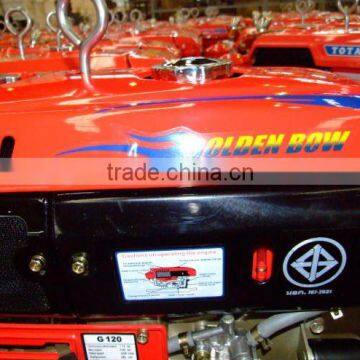

engines for tractor

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Usage	Other, agriculture	Fuel	Diesel
Stroke	4 Stroke	Cylinder	Single Cylinder
Cold Style	Other, Water-cooled	Start	Other, electric start&handle start
Place of Origin	Chongqing, China	Brand Name	golenbow
Model Number	G120A

1.Type: water-cooled
2.Certificate: ISO9001:2008
3.Maximum output: 12(8.82)/2400
4.Fuel: diesel

Technical Specifications

NO.	ITEMS	UNIT	MODEL
NO.	ITEMS	UNIT	G120A
1	Type		Single cylinder, horizontal, water-cooled, 4-cycle
2	Bore×stroke	mm×mm	94×90
3	Displacement	cc	624
4	Rated speed	r/min	2400
5	Continuous rated output	Hp	10.5
6	Max. output	Hp	12
7	Idle speed	r/min	≤600
8	Compression ratio		21:1
9	Cooling system		Radiator
10	Combustion system		(TVCS) Three vortex combustion system
11	Fuel delivery position		19~21
12	Fuel injection pressure	kgf/cm2	120~125
13	Lubricating system		Forced lubrication with trochoid pump
14	Starting system		Electric startup,Speed doubling handle hand
15	Direction of rotation		Counter clockwise facing flywheel
16	Cooling water capacity	L	2.1
17	Fuel tank capacity	L	10
18	Crankcase oil capacity	L	2.3
19	Measurement	mm	765×350×520
20	Net weight	kg	111

certification

Chongqing Goldenbow Group Power Co., Ltd.: Contact nameJeff Liu
Chat Now; Phone86-23-63202152; AddressNo. 337, Jinkai Ave.
