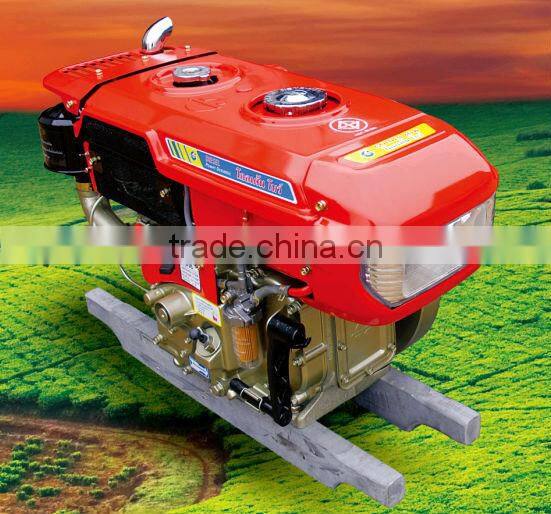

12HP New Lamp Type Water Cooled Diesel Engine

FOB Price

US$ 400 - 500 / Set

5 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Usage	Other, Agriculture
Fuel	Diesel	Stroke	4 Stroke
Cylinder	Single Cylinder	Cold Style	Other, Water-cooled
Start	Kick Start	Place of Origin	Chongqing, China
Brand Name	Golden Bow	Model Number	New Lamp Type G120c
Dimension(LWH)	765x350x520mm	Weight	113kg
Certification	ISO 9001:2008	After-sales Service Provided	Engineers available to service machinery overseas

1.Entirely new design,with the adoption of more than 20 kinds of latest techniques and craft.
2.Fuel and machine oil saving.

Product Description

Model	Unit	G120C	G120CE
Type		Single cylinder, Horizontal,water-cooled,4-cycle
Bore x Stroke	mm	94x90
Displacement	cc	624
Maximum output	Hp(kW)/rpm	12(8.82)/2400
Continuous rated output	Hp(kW)/rpm	10.5(7.72)/2400
Fuel consumption	g/Hp(kW).h	190(258)
Rated speed	rpm	2400
Idle speed	rpm	≤600
Compression ratio		21:1
Maximum torque	kgf.m/rpm	4.0/1600
Valve clearance(cold engine)	mm	0.195-0.235
Cooling system		Radiator
Governor system		Flying hammer centrifugal speed type
Fuel injection pressure	kgf/cm2	120-125
Fuel delivery position		19-21º
Combustion system		(TVCS) Three vortex combustion system
Lubricating system		Forced lubrication with trochoid pump
Lubricating oil		SAE 40 API CF
Fuel		Light diesel oil (SAE No.2-D)
Fuel tank capacity	l	10
Cooling water capacity	l	2.1
Crankcase oil capacity	l	2.8
Starting system		Speed doubling handle by hand / Electric start
Direction of Rotation		Counterclockwise facing flywheel
Measurement	mm	765×350×520
Net weight	kg	111	113
