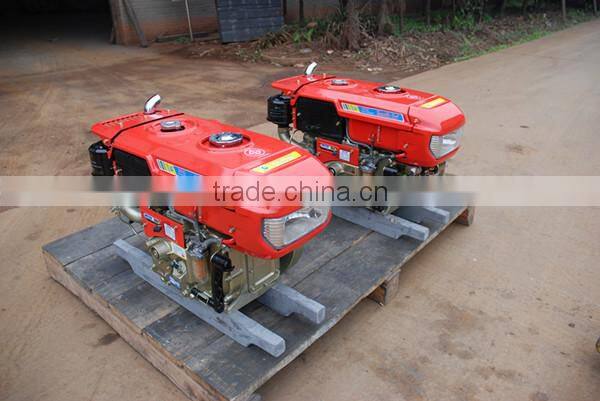

11HP Single Cylinder Water Cooled Diesel Engine

FOB Price

US$ 400 - 500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Usage	Other, Agriculture
Fuel	Diesel	Stroke	4 Stroke
Cylinder	Single Cylinder	Cold Style	Other, Water-cooled
Start	Other, electric Start&handle Start	Place of Origin	Chongqing, China
Brand Name	Golden Bow	Model Number	G110C
Dimension(LWH)	765x350x520mm	Weight	110kg
Certification	ISO9001:2008	After-sales Service Provided	Engineers available to service machinery overseas

1.Type: water-cooled
2.Certificate: ISO9001:2008
3.Rated output: 6.99 (9.5) kw(Hp)
4.Rated speed: 2400 r/min
Fuel: diesel

Technical Specifications

NO.	ITEMS	UNIT	MODEL
NO.	ITEMS	UNIT	G110C
1	Type		Single cylinder, horizontal, water-cooled, 4-cycle
2	Bore×stroke	mm×mm	92×90
3	Displacement	mL	598
4	Rated speed	r/min	2400
5	Continuous rated output	Hp	9.5
6	Max. output	Hp	11
7	Idle speed	r/min	≤600
8	Compression ratio		21:1
9	Cooling system		Radiator
10	Combustion system		(TVCS) Three vortex combustion system
11	Fuel delivery position		20°~22°
12	Fuel injection pressure	kgf/cm2	125~130
13	Lubricating system		Forced lubrication with trochoid pump
14	Starting system		Electric startup,Speed doubling handle hand
15	Direction of rotation		Counter clockwise facing flywheel
16	Cooling water capacity	L	2.1(Radiator)
17	Fuel tank capacity	L	10
18	Crankcase oil capacity	L	2.3
19	Measurement	mm	765×350×520
20	Net weight	kg	115
