DongFeng XBW Aviation Platform Truck,aerial Working Truck
- Any port of China
You May Like
-
JMC High-altitude Operation Truck,working Platform Truck
-
JMC High-altitude Operation Truck,platform Operation Truck
-
JMC 4x2 High Lifting Platform Truck,platform Operation Truck
-
JMC 14m High-altitude Operation Truck,aerial Operation Vehicle
-
JMC 16m Chinese Aerial Platform Truck,overhead Working Truck
-
Foton 4x2 High-altitude Operation Truck,hydraulic Aerial Cage
Product Details
| Transmission Type | Manual | Condition | New | |
| Emission Standard | Euro 2 | Fuel Type | Diesel | |
| Dimensions (L x W x H) (mm) | 6470*1980*3000 | Place of Origin | Hubei, China | |
| Brand Name | CLW | Model Number | CLW5050JGKZ |
Product Description
Specifications
DongFeng XBW aviation platform truckWith 3C
Passed the ISO9001-2000
12-16M
OEM

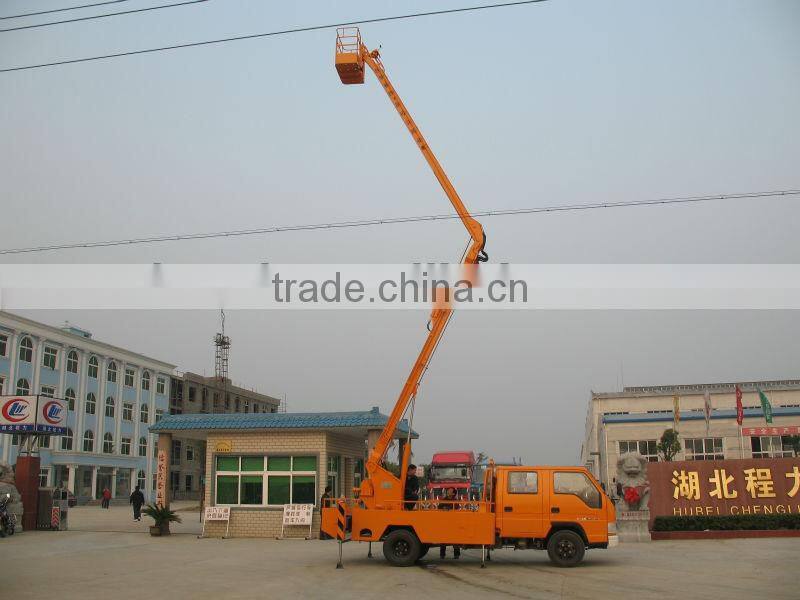

DongFeng XBW aviation platform truck
Below is specifi parameters:
Item | unit | parameter | |
Vehicle model |
| CLW5050JGKZ High-altitude Operation Truck | |
Chassis model |
| EQ1051G51DJ3A | |
Overall dimensions | mm | 6470×1980×3000 | |
Factual loading | kg | 200 | |
GVW | kg | Appro×5455 | |
Rated loading capacity | 160 | ||
Body internal dimensions | mm | - | |
Wheel base | 3300 | ||
F/R track base | 1506/ 1466 | ||
Approach/departure angle | . | 23/15 | |
Exhaust/hp | ml/kw | 3707/95 | |
Max speed | km/h | 95 | |
Tire specification | 7.00R15-10PRLT,7.00R16-10PRLT | Engine type | CY4100ZLQ |
Traction system | 4×2 | transmission | 5-speed with over drive |
Number of axles | 2 | Electric system | 24v |

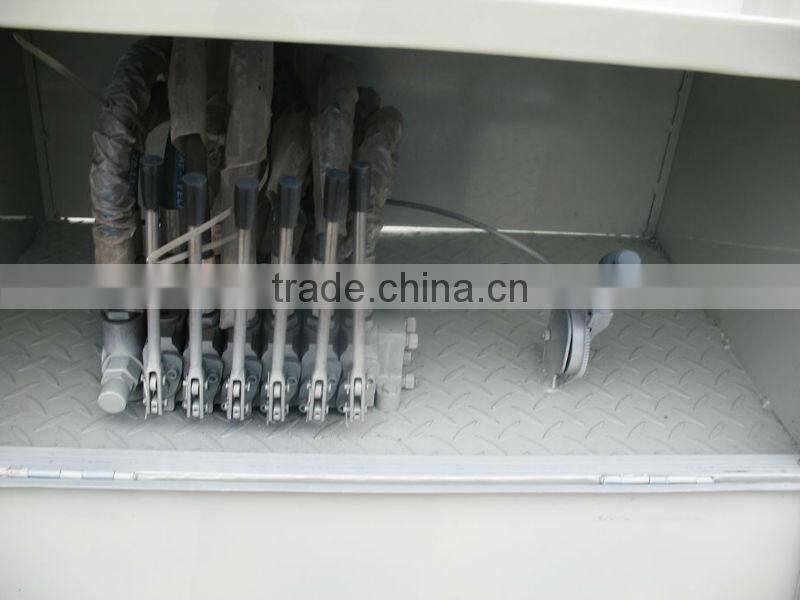

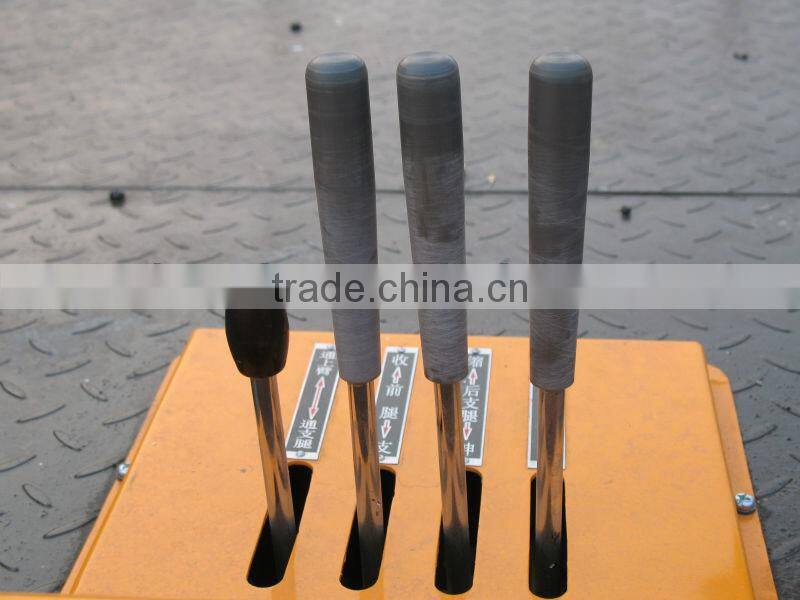

Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 |

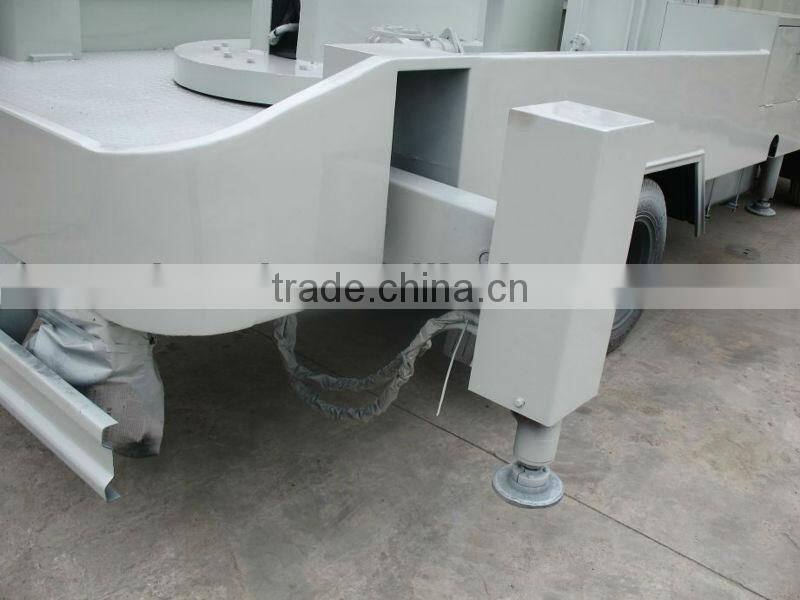

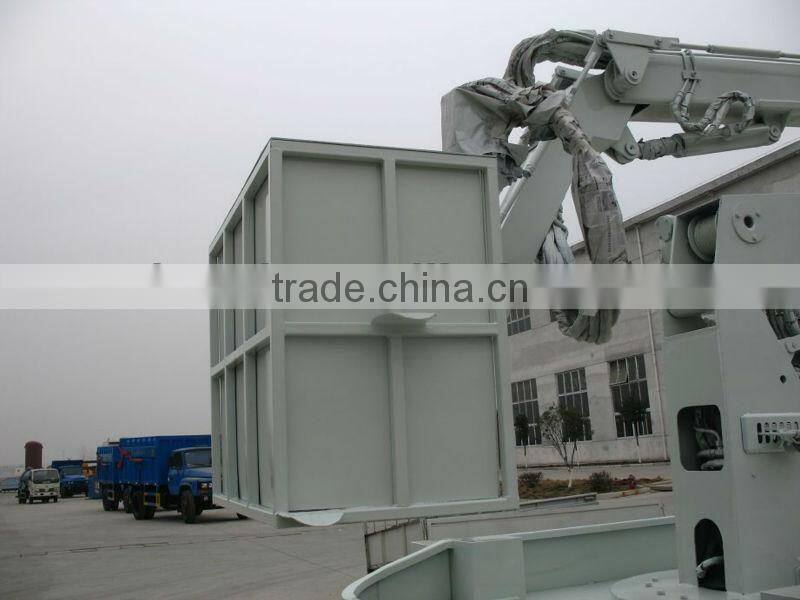

Equipment | Max operation height=13m,max operation radius≥5.7m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm,60°turning(left or right),4 H-shape legs. Clients can choose hydraulic parts made in China, with hook | ||
Engine | CY4100ZLQ diesel engine | ||
Production cycle | 25-30 days | ||
1. Contact Information

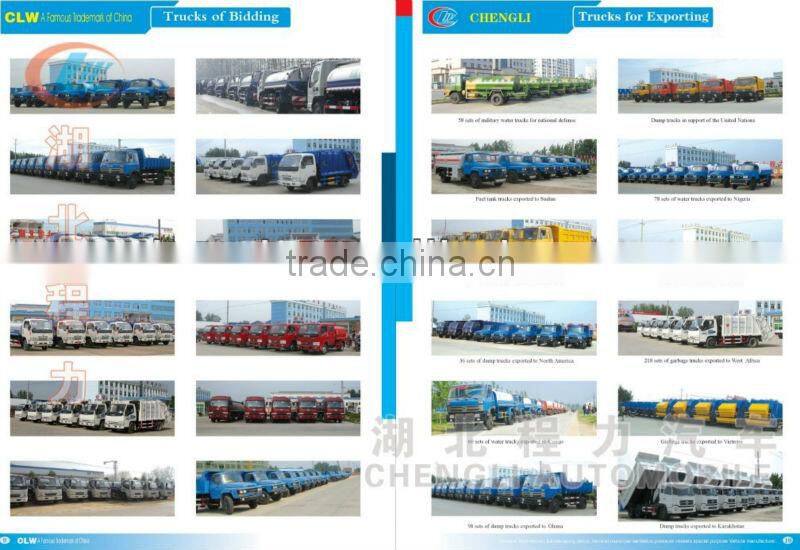

2. Factory Certifications
3. Production Pictures:
