Pengpu Excavator Machine 46T SW460E FOR SALE

FOB Price

US$ 1 - 100,000 / Unit

1 Unit(Min. Order)

Port China port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	PENGPU
Model Number	SW460E	Condition	New
Moving Type	Crawler Excavator	Operating Weight	45500KG
Bucket capacity	2.1CBM	Maximum Digging Height	10960mm
Maximum Digging Depth	7490mm	Machine Weight	45500KG
Max Digging Radius	11945mm	Rated Speed	3.0-5.0km/h
Certification	CIQ BV SGS	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Pengpu excavator machine 46T SW460E FOR SALE

Product Description

Main features:

With mechanical and electrical integrated design and updated computer-controlled system, the 460E hydraulic excavator enables the hydraulic pump power to perfectly match with the power of engine. Its critical components are all from international recognized suppliers. Cummins engine complied with Tier 2 Emission Standard ensures the powerful torque, high reliability and low fuel consumption. Advanced KAWASAKI hydraulic system offering precise proportional control and instant pressure rising function acquires significant productivity. With the extendable track, the hydraulic excavator is suitable for operations under various working conditions. The cab has ample internal room, high strength and excellent visibility. All function keys are of fingertip type to further smooth the operation.

Our updated high-efficiency, energy saving and low-emission hydraulic excavator features high quality.

Technical parameters

Model	460E
Specification	Operating weight of total machine	45500Kg
	Bucket capacity	2.1M³
	Width of track shoes	600mm
Performance	Ground pressure	85.9Kpa
	Swing speed	8.7r/min
	Traveling speed (high/low)	5.0/3.0Km/h
	Gradeability	70°
	Bucket digging force	265KN
	Arm crowd force	205KN
Engine	Model	QSM11-335 Cummins
	Type	4-Stroke, direct injection, turbocharged.
	Rated power	274KW/1800rpm
Hydraulic system	Type of hydraulic pump	2× Variable flow axial piston pump+1× Gear pump
	Method of power adjustment	Gross power adjustment+variable power+ negative flow control
	Main safety valve adjusted power	34.3Mpa
	Travel axial piston motor	2×Variable flow axial piston motor
	Motor for swing	2×Fixed flow axial piston motor
Working range (mm)	Max. working radius	11945
	Max. digging depth	7490
	Max. digging height	10960
	Max. dump height	7700
	Min. swing radius	4033
Overall dimensions (mm)	Length of track on ground	4033
	Length of track	2495
	Ground clearance of counter weight	720
	Tail swing radius	1650
	Total length	5900
	Total height	2660
	Min. ground clearance	340
	Track gauge	1600
	Total width	2025
	Width of track shoes	400
	Height of track shoes	610
	Total height (Cab)	2660
	Top width	2000

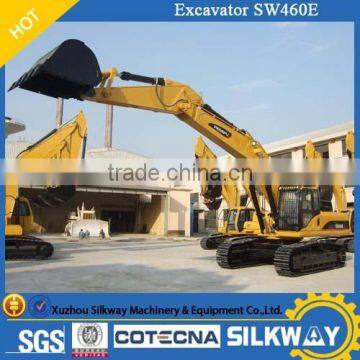

Machine Picture
