Home > Products > Concrete Machinery > Concrete Mixer Truck, Concrete Mixer HOWO/SINO Brand 10CBM 6x4

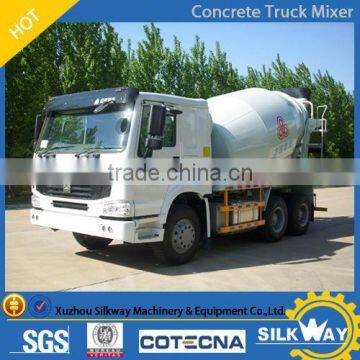

Concrete Mixer Truck, Concrete Mixer HOWO/SINO Brand 10CBM 6x4
- shanghai
- T/T D/P D/A Credit Card
You May Like
-
5CBM to 12CBM HOWO 6*4 chasiss Mix Concrete Truck Concrete Mixer
-
High Quality FYG Motor Driven Concrete Trailer Pump
-
150m FYG trailer mounted pump HBTS80-16-181 for sale
-
FYG trailer mounted pump HBTS80-16-181in stock
-
9m3 Concrete Mixer Machine FYG5257GJBC with OMAN Chasssis for sale
-
Concrete Paver 1220MAXI
Product Details
Condition | New | Place of Origin | Jiangsu, China | |
Brand Name | FY | Model Number | FYG5255GJB | |
Weight | 13155kgs | Dimension(L*W*H) | 9020*2496*3860 | |
Power(W) | 247kw | Certification | ISO,CIQ SGS | |
Warranty | one year or 2000 working hours which ever comes first from the BL dat | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
10m3 Concrete Mixer FYG5255GJB
Fangyuan Truck Mixer
Stable, Reliable, Environmental Friendly, Energy Efficient |
|
Fangyuan Truck Mixer has the following advantages:
1. The mixing drum and the helical blades adopt high-intensity wear-resistant material, improving the service life by over 59%.
2. The unique space helical blades improve the mixing efficiency by 35%, reducing the mixing time.
3. Small volume truck mixer is optimal in small volume concrete and mortar construction. Its using with large volume truck mixer can save the operating costs by 80%~200%.
4. Adopt the box structure design and made by the 8mm-thickness rectangle high-intensity steel pipe. Compared with the same industry (5-6mm thickness), the service life improves by 50%, and the concrete transportation cost of each ton reduces by 1.6%.
5. The humanized 3-point linkage operation allows various operations of mixing drum in the cab.
6. The convenient and high-efficient water supply by air pressure cleans clearly and thoroughly. Adopt the parts of famous brand. The service life of the steel water pipe is five times of common water pipe.
7. Higher safety performance and optimal axle load distribution improve the service life of the truck by over 30%.
8. Three kinds of salvage disposing schemes prevent the residual mud polluting the roads, which is environmental friendly and practical.
9. The automatic temperature control radiating oil tank with vacuum meter effectively ensures the stability and reliability of the hydraulic system.
Specifications for 10 CBM Concrete Truck Mixer
Model | FYG5255GJB | |
Mixer | Geometric volume m3 | 17.5 |
Mixing volume m3 | 10 | |
Mixer Material | Intensive wear-resistant manganese plate | |
Angle of slope (°) | 12 | |
Rotation speed (r/min) | 0~14 | |
Rotation direction (view from back side) | Clockwise feeding, anticlockwise discharging | |
Blade | double helix blade,Intensive wear-resistant manganese plate (with wear-resistant protection strip) | |
Discharge capacity | Slump degree=5cm, ≥2 m3/ min | |
Feeding Discharging Device | Hopper (Length×Width mm) | 950×1000;Material:Intensive wear-resistant manganese plate |
Main slot length (mm) | 1600;Material:Intensive wear-resistant manganese plate | |
Extension slot length (mm) | 780;Material: Intensive wear-resistant manganese plate | |
The hydraulic system | Oil pump and Motor | American Eton or German Rexroth |
Reducing gearbox | Italian Bonfiglioli | |
Chassis | Engine Model | WD615.69 |
Rated engine power kW /speed (r/min) | 247/1350(336HP)) | |
Chassis model | HOWO ZZ1257N3841W | |
Emission | GB17691-2005 EURO II | |
Max. Traveling speed (km/h) | 75 | |
Wheel base | 3825/1350 | |
Tire | 12.00-20 | |
Overall size | L×W×H(mm) | 9020×2496×3860 |
Weight | Curb Weight (kg) | 13155 |
Max. Load weight (kg) | 11850 | |
Gross weight (kg) | 25000 |
01 WHAT ARE OUR ADVANTAGES COMPARED WITH ?
♦Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedbacks from clients, our price is more competitive than manufacturer /factories.
♦ Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.
02 WHICH TERMS OF PAYMENT CAN WE ACCEPT ?
♦ On T/T term, 30% down payment should be paid in advance, and 70% balance should be paid within 5 days before departure goods from factory.
♦ On L/C term, a 100% irrevocable L/C at sight by our acceptable bank.
03 HOW LONG WILL OUR PRICE BE VALID ?
♦ We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remain s stable through the year. We only adjust our price based on two situations:
♦ The rate of USD /RMB varies significantly according to the international currency exchange rates.
Manufacturers/factories adjusted to the machine price, because of the increasing of labor cost and raw material cost.
04 WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
♦ We can ship construction machinery by various transportation tools.
For 90% of our shipment, we will go by sea, for other machinery, like truck crane, big bulldozer and road roller, either by RO/RO and Bulk shipment.
♦ For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan, etc., we can ship construction machinery by road or railway.
♦ For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
05 HOW LONG IS OUR GUARANTEE TIME?
♦ 2000 working hours or one year from the date of B/L, which comes first.
♦ Engineers available to service machinery overseas.
