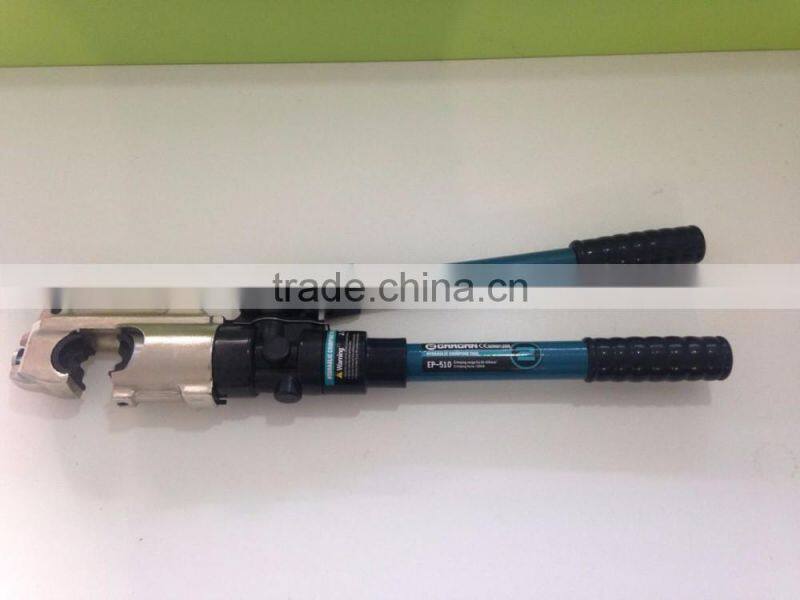

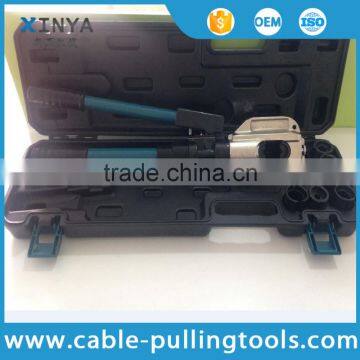

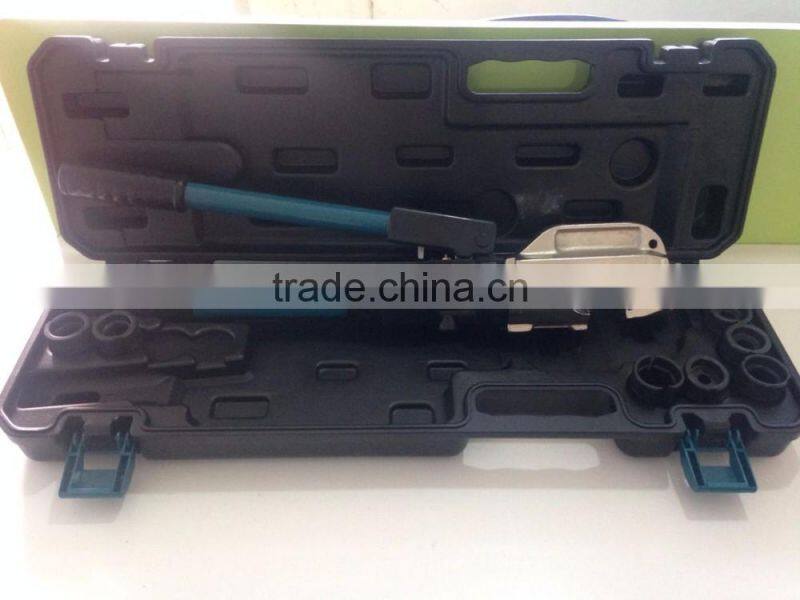

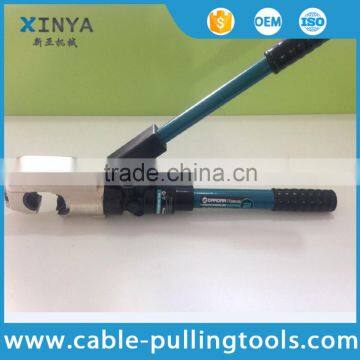

EP-510 Hydraulic Wire Rope Crimping Tools for Crimping Cable Lug

FOB Price

US$ 200 - 300 / Piece

2 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Xinya
Model Number	CYQ		Type	Hydraulic Crimping Tools

EP-510 Hydraulic Wire Rope Crimping Tools for Crimping Cable Lug

Characteristics

1.Compression mould can be replaced, quick and safe operation;

2.Compression configuration: 50,70,95,120,150,185,240,300,400mm²

Press tools is suitable for DIN.AWG.JIS.

There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

Only one person can work.

Pump is connected to the tools, it can turn 180 degree when pressed on the head.

Technical Data for EP-510 Hydraulic Wire Rope Crimping Tools

Product No.	Model Type	Output (KN)	Crimping Range(mm2)	Working Stroke(mm)	Packing Term	Oil Capacity (cc)	Weight(kg)
80079	EP-510	130	400	38	plastic box	145	6.8
