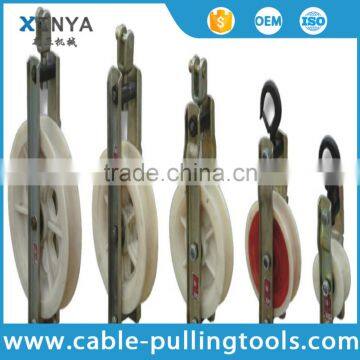

5-20KN Hook type earth wire stringing pulley block
USD $25 - $600
/ Piece
10 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
916mm MC Nylon large diameter stringing pulley block and tackle
-
Large diameter bundled conductor pulley stringing block for 822 model
-
660mm Nylon Large Diameter Bundled Conductor Pulley Stringing Block Suitable For ACSR
-
508mm Large diameter bundled conductor pulley stringing block
-
Coir Rope Aluminum Wheel Hoisting Pulley Block
-
Large 660mm Diameter Bundled Conductor Pulley Stringing Block with Nylon Wheel
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Xinya | |
| Model Number | SHT, SHTN | Type | Other, stringing block |
Product Description
5-20KN Hook type earth wire stringing pulley block
Application
5-20KN Hook type earth wire stringing pulley block is used as hanging pulley and skyward stringing pulley.It is used to release lightning shield line or cross steel strand.
Technical Data of 5-20KN Hook type earth wire stringing pulley block
| Model | Applicable stranded wire | Rated load(KN) | Weight(kg) | Remark |
| SHT-120*30 | GJ35 | 5 | 2.2 | Cast steel sheave |
| SHT150*32 | GJ70 | 10 | 3.6 | Cast steel sheave |
| SHT165*50 | GJ120 | 20 | 4.5 | Cast steel sheave |
| SHT-200*60 | GJ150 | 20 | 5.2 | Cast steel sheave |
| SHTN-120*30 | GJ35 | 5 | 1.6 | Nylon sheave |
| SHTN150*32 | GJ70 | 10 | 2.4 | Nylon sheave |
| SHTN165*50 | GJ120 | 20 | 3.3 | Nylon sheave |
| SHTN200*60 | GJ150 | 20 | 3.8 | Nylon sheave |
