Fiberglass Cable Duct Rod Equipment/Fish Tape

FOB Price

US$ 180 - 500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	XINYA
Model Number	BCD	Application	cable pulling operations, power construction
Surface Treatment	Smooth	Technique	Pultrusion
Dimensions	Diameter 4-18mm

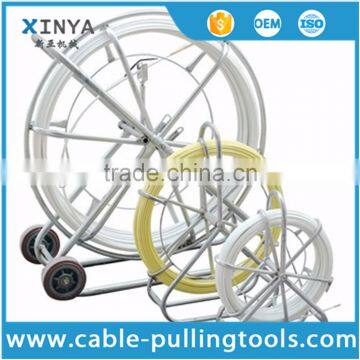

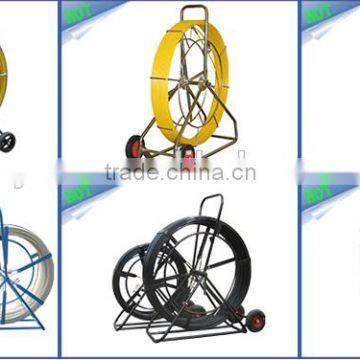

Fiberglass Cable laying Fishing rod Equipment

Application

1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.

2.Fiberglass rod is lightweight and flexible.

3.Dia of duct rod:4mm;4.5mm;6mm;8mm;9mm;10mm;11mm;12mm;13mm;14mm;15mm;16mm;18mm;
4.Length of pulling rod:50m/100m/ 150m/ 200m/250m/300m

Features

Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.

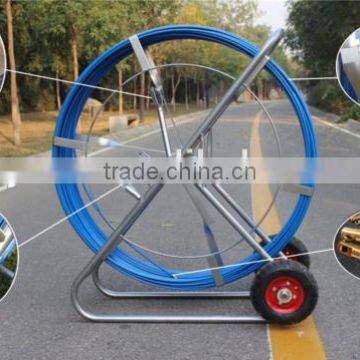

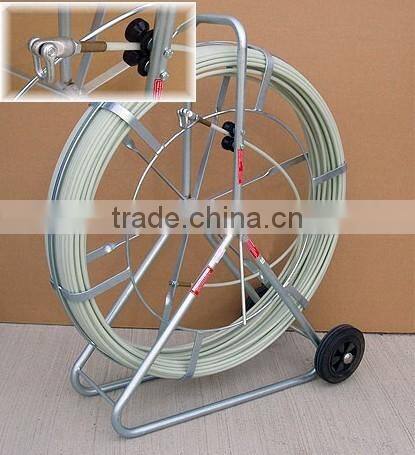

Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.
There is copper wire inside for tracing easily.
Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables.
Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod.
Feed device allows rod to feed out or be back with easy push or pull of rod
Rugged tubular steel reel with adjustable positioning
Rustproof bull-nose pulling eye for longer conduit run and underground duct
Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod

Technial Data of Fiberglass Cable laying Fishing rod Equipment

Specification	Rod Diameter (mm)	Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16, Φ18
	Rod Length (m)	30~500
	Frame Spec.(mm)	1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
	Wheel Diameter(mm)	300mm
	Wall thickness of Metal Frame	2.2mm
	Color	blue, yellow, red, white etc
Material	Rod Inner	Extruded by fiber glass and high strength resin at high temperature
	Rod Outer	High Density polyethylene coating
	Iron Frame	Steel with high-temperature sprayed plastic or Spray coating
	Wheel	rubber
	Brake	Yes
	Drawing head	copper
Physical Characters	Density	55g/m
	Working temperature	-40°C to +80°C
	Breaking tension	100kg
	Bending Radius	295mm
	Technology	Pultrusion
Packaging	Inside	plastic woven strip wind around the frame
Packaging	Outside	Wooden pallet and Wooden box

Please tell us the following information in your enquiry:

1. Dia of duct rod(mm) ?

2. Length of pulling rod(KN) ?

3. Quantity?

We'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
