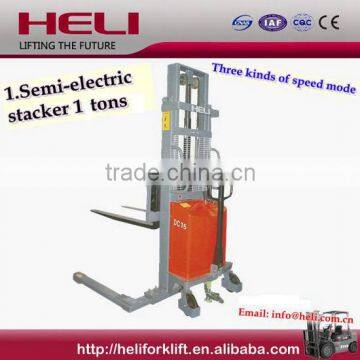

China Top1 Manufacturer Brand 1 ton Heli semi electric stacker
- Shanghai
- T/T Credit Card
You May Like
-
China Top1 Manufacturer New Condition HELI pallet stacker electric
-
Anhui HELI Small electric pallet truck
-
HELI FORKLIFT BACKHOE WHEEL LOADER 5T ZL50 WITH CE FOR SALE
-
HELI BRAND BACKHOE WHEEL LOADER HL920 WITH CE FOR SALE
-
HELI FORKLIFT WHEEL LOADER 3.5T ZL35E WITH CE FOR SALE
-
HELI FORKLIFT 5T HL956II WITH CE FOR SALE Heavy-duty Wheel Loader
Product Details
Condition | New | Place of Origin | Anhui, China | |
Brand Name | HELI | Model Number | CBS10 | |
Type | Powered Pallet Truck | Power Souce | AC Motor | |
Rated Loading Capacity | 1000kg | Max. Lifting Height | 2500mm | |
Min. Lifting Height | 90mm | Fork Length | 1580mm | |
Fork Width | 730mm | Overall Dimensions | 1484*1160*1820mm | |
Certification | ISO9001,ISO14001,OHASA18001,CE | After-sales Service Provided | No overseas service provided |
Product Description
Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
Feature | unit | ||
1 | Model | CBS10 | |
2 | Config No. | Z160 | |
3 | Type | Narrow legs | |
4 | Mast type | 2-Stage | |
5 | Load capacity | kg | 1000 |
6 | Load center | mm | 500 |
7 | Operating type | Walkie | |
Wheels | |||
9 | Front wheel Diameter | 80 | |
10 | Rear wheel Diameter | 180 | |
Dimension | |||
11 | Standard lift height | mm | 2500 |
12 | Lowered fork height | mm | 90 |
13 | Fork size(length/width/thickness) | mm | 1150/160/60 |
14 | Overall length | mm | 1580 |
15 | Overall width | mm | 730 |
16 | Outside width between legs | mm | - |
17 | Inside width between legs | mm | - |
18 | Min.Turning radius | mm | 1240 |
19 | Min.Aisle width for pallets 800×1200 | mm | 1890 |
20 | Min.Aisle width for pallets 1000×1200 | mm | 1932 |
21 | Min.ground clearance | mm | 30 |
Performance | |||
22 | Travel speed,laden/unladen | km/h | - |
23 | Lift speed,laden/unladen | mm/s | 65/105 |
24 | Lowering speed,laden/unladen | mm/s | 145/80 |
25 | Gradeability,laden/unladen | % | -- |
Electrical configuration | |||
26 | Motor | KW | 1.6 |
27 | Battery voltage | V | 12 |
28 | Battery capacity | Ah | 100 |
29 | Brake | -- | |
30 | Controller | -- | |
Weight | |||
31 | Battery weight | kg | 28 |
32 | Service weight with battery | kg | 360 |
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
