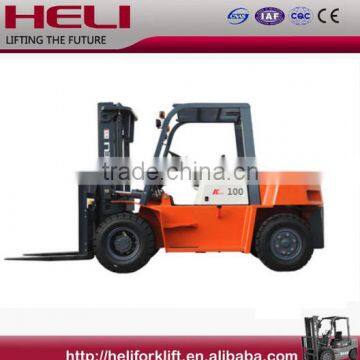

China Top1 Forklift Manufacturer Heli forklift 10 ton
- SHANGHAI
- T/T Credit Card
You May Like
-
Heli Brand Diesel Forklift
-
Heli 20 ton 25 ton diesel forklifts truck
-
China Top1 Material Handing Equip Manufacturer heli forklift 2.5 ton
-
China Top1 Forklift Automatic Transmission H Series 12Ton 12000KG Heli Brand Forklift Truck Price
-
China Top1 Manufacturer HELI New H3 Series with Japanese Engine 1ton 1.5ton 1.8ton 2ton 2.5ton 3ton 3.5ton forklift truck price
-
China Top1 Manufacturer HELI New H3 Series with Japanese Engine 1.5ton forklift diesel
Product Details
Condition | New | Place of Origin | Anhui, China | |
Brand Name | HELI BRAND | Model Number | CPCD100 | |
Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
Rated Loading Capacity | 10000kg | Max. Lifting Height | 3000mm ( Optional ) | |
Min. Lifting Height | 85mm | Fork Length | 1220mm | |
Fork Width | 150mm | Overall Dimensions | 4260*2165*2850mm | |
Certification | ISO9001,ISO14001,OHASA18001,CE | After-sales Service Provided | No overseas service provided |
Product Description
Shanghai heli forklift truck co.,ltd (Shanghai Hanli )is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china".
Specification | Forklift Manufacturer Heli 10 ton forklift | |
Model | CPCD100 | |
Powe type | Diesel | |
Load capacity | kg | 3000 |
Load center | mm | 600 |
Operating type | Sit-Down | |
Size | ||
Standard lifting height | mm | 3000 |
Overall height | mm | 2560 |
Overall length(with fork) | mm | 5497 |
Wheel Base | mm | 2800 |
Min Ground clearance | mm | 250 |
Overall width | mm | 2164 |
Min.turning radius | mm | 4100 |
Mast tilt angle | % | 6° / 12° |
Fork size | mm | 1220x175x80 |
Performance | ||
Max. travel speed(loaded/unloaded) | km/h | 26/30 |
Lifting speed | mm/s | 330/350 |
Lowering speed | mm/s | <=600/>=300 |
Max. Draw-bar pull,with load | k/N | 58 |
Max.Negotiable Gradient (loaded/unloaded) | % | 22/20 |
Weight | ||
Service weight | 12510 | |
load wheel with load(front/rear) | kg | 20380/2130 |
load wheel without load(front/rear) | kg | 5700/6810 |
Wheel and Tyre | ||
Wheels Number front/rear(x=driven) | 4x/2 | |
Tyre Type | pneumatic | |
Tyre size (front) | 9.00-20-14PR | |
Tyre size (rear) | 9.00-20-14PR | |
Service brake | Hydraulic- foot pedal | |
Parking brake | Mechanical- hand Brake Rod | |
Drive | ||
Engine model | Chinese Engine(Optional) | |
Rated power | kW/rpm | 85/2200 |
Rated torque | Nm/rpm | 488/1500 |
Engine cylinder number | 4 | |
Engine displacement | L | 4/4.75 |
Transmission Type | Power Shift |
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
