Home > Products > Shaper / slotter > SHAPING MACHINE

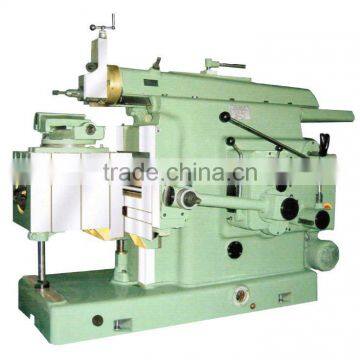

SHAPING MACHINE
- China Port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Brand Name | TIMEWAY | |
| Model Number | B6050 | Dimension(L*W*H) | 1943x1160x1533mm | |
| Weight | 1800kg | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
On narrow and long workpieces, the machine will obtain much higher productivity.
With the equipment of a special vice or a dividing head, the machine can be send for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
Specification | B6050 | |
Max. Shaping length | 500 mm | |
Max. distance from lower edge of ram to table | 370 mm | |
Max. travel of table | Horizontal | 500 mm |
Vertical | 300 mm | |
Max. swivel angle of table | Without vice | ±90° |
With vice | ±50° | |
Max. vertical travel of tool head | 110 mm | |
Frequency of ram stroke | 15, 24, 37, 51, 64, 80, 102, 126, 158 times/min | |
Table feed per ram stroke | ||
Pawl riding over 1 ratchet tooth | Vertical | 0.0845 mm |
Horizontal | 0.133 mm | |
Pawl riding over 10 ratchet teeth | Vertical | 0.845 mm |
Horizontal | 1.33 mm | |
Motor | 3 kw, 1420 r/min | |
Vice measurements (Width xDepth xMax. Opening) | 240x64x215 mm | |
Overall dimensions (LXWXH) | 1943x1160x1533 mm | |
Packing size (LXWXH) | 2150x1340x1470 mm | |
Net weight | 1800 kg | |
Gross weight | 2100 kg | |
