Pneumatic Forging Hammer (Air Hammer)
- China Port
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | TIMAC | |
| Model Number | AH-15 AH-25 AH-40 AH-55 AH-75 AH-150 | Condition | New |
Product Description
Specifications
1. Pneumatic forging hammer, air hammer;2. Drawing-out, upsetting, punching, chiseliry, ect;
3. Special oil pump is provided;

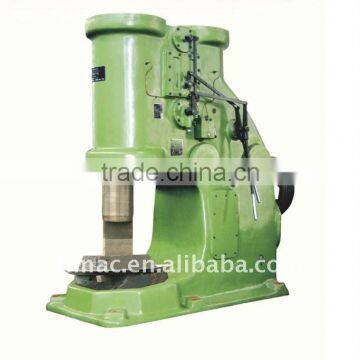

Pneumatic Forging Hammer (Air Hammer)
Applications:
This pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forging in bolster dies.
Features:
1. Ready operation is economic and convenient.
2. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
3. A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.
Specification | AH-15 | AH-25 | AH-40 | AH-55 | AH-75 | AH-150 | |
Weight of falling parts (kg) | 15 | 25 | 40 | 55 | 75 | 150 | |
Maximum hit energy(kj) | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 2.5 | |
Hit number(min-1) | 245 | 250 | 245 | 230 | 210 | 180 | |
Heigh of working area (mm) | 160 | 240 | 245 | 270 | 297 | 370 | |
Tup axis to frame front (mm) | 140 | 200 | 235 | 270 | 280 | 350 | |
Forges | Square (mmxmm) | 30×30 | 40×40 | 52×52 | 60×60 | 65×65 | 130×130 |
Round (mm) | Φ35 | Φ48 | Φ68 | Φ75 | Φ85 | Φ145 | |
Motor | Type | Y100L1- 4-B3 | Y132S1- 6-B3 | Y132M1- 6-B3 | Y132M2- 6-B3 | Y160M- 6-B3 | Y180M- 4-B3 |
Power(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 18.5 | |
Weight | Hammer(kg) | 270 | 720 | 710 | 1150 | 2300 | 3260 |
Anvil block(kg) |
|
| 420 | 600 | 950 | 1500 | |
Overall Dimension(mm) | 700×450 ×980 | 1100×500 ×1300 | 1200×600 ×1500 | 1300×700 ×1600 | 1480×800 ×1853 | 2390×1085 ×2150 | |
