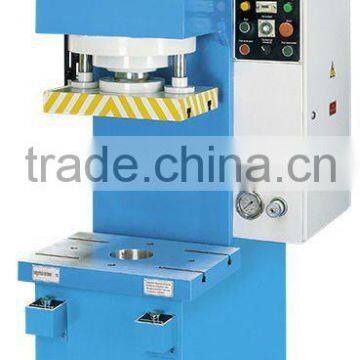

63Ton Hydraulic C-frame Press

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	TIMAC
Model Number	YC63T		Condition	New

1.C-frame hydraulic press machine
2. Medium hydraulic press with multifunctions.
3.C-type hydraulic press machine

Hydraulic C-frame Press

Features:

1. The Hydraulic C-frame Press machine is a kind of medium hydraulic press with multifuctions.

2. It suitable for the calibration of the parts like bearings and moulding materials, and for the arber of parts like bearings and sleeves.

3. It can complete the technology function of bending, marking and shelling of plate material parts, and the function of stretching of simple parts.

4. It can also be used to press powder and plastic products which the requirements are not strict.

Main specifications:

Specifications		Unit		YC63T
Nominal force		KN		630
The max. working pressure of the fluid		Mpa		24.3
The max. distance between the under surface of the slipperand the surface of the working table		mm		630
The max. stroke of the slipper		mm		500
Downlink velocity of the slipper		mm/s		50
Return velocity of the slipper		mm/s		90
Throat depth		mm		350
Thre size of the working stable	Front, Rear	mm		650
	Left, Right	mm		700
The height of the working table to the surface of the floor		mm		650
The diameter for cutting hole		mm		140
The diameter of cylinder hole		mm		180
The diameter of the center of plunger bar( hole of cross handle)		mm		40
The depth of the center of plunger bar( hole of cross handle)		mm		60
The screw thread diameter of plunger bar		mm		100
Description of oil pump		Pressur equalization variable axial plunger pump
The power for motors		kw	7.5
The configuration size of the machine tool	Front, Rear	mm	1340
	Left, Right	mm	800
	The height above the floor	mm	2500
Total weight(approx)		T	4
