Product Details
| Condition | New | Type | Vertical | |
| Brand Name | TIMAC | Model Number | VMC500/5axes |
Product Description
5-AXES LINKAGE VERTICAL MACHINING CENTER
Specification | Unit | VMC500/5axes | |
Travel | X axis travel | mm | 650 |
Y axis travel | mm | 700 | |
Z axis travel | mm | 460 | |
X axis swing angle | degree | +110~-110 | |
C axis swing angle | degree | 360 | |
Distance from spindle to table | mm | 200~660 | |
Worktable | Worktable size | mm | 500 |
Max. load of worktable | kg | 400 | |
Spindle | Spindle taper |
| HSKA63 |
Max. speed of spindle | r/min | 20~18000 | |
Spindle rated torque | N.m | 78 | |
Spindle rated speed | r/min | 4300 | |
Feeding speed | X, Y axis rapid move | m/min | 40 |
Y axis rapid move | m/min | 32 | |
X, Y,Z Feeding speed | mm/min | 3~20000 | |
A axis Max. rapid swing speed | r/min | 30 | |
C axis Max. rapid swing speed | r/min | 60 | |
Auto-tool changer system | Magazine form |
| chain |
Tool NO. | pcs | 32 | |
Tool change time |
|
| |
Max. length of tool | mm | 300 | |
Max. diameter of tool | mm | 76/127 | |
Max. weight of tool | kg | 6.5 | |
Motor | Spindle motor | kw | 35 |
X/Y1/Y2/Z motor | kw | 5.37x4 | |
A axis Torque motor | kw | 27.1x2 | |
C axis torque motor | kw | 25.4 | |
Coolant pump motor | kw | 0.75 | |
Hydraulic pressure station motor | kw | 5.5 | |
Water-coolant pump motor | kw | 4.5 | |
Grease lubrication pump motor | kw | 0.025 | |
Thin oil lubrication pump motor | kw | 0.02 | |
Rotating chip cleaner motor | kw | 0.2 | |
Accuracy | X/Y/Z axis positioning accuracy | mm | 0.008 |
X/Y/Z Repeatability | mm | 0.003 | |
A/C axis positioning accuracy |
| 8" | |
A/C Repeatability |
| 3" | |
Structure size | Height | mm | 3700 |
Dimension size(Lx W) | mm | 5000x3000 | |
Weight | kg | 12000 | |
Power demand | kw | 120 | |
Work environment | Temperature | degree | -5~45 |
Relative humidity |
| 0~90% | |
Air pressure | Mpa | 0.6 | |
Hydraulic system work pressure | Mpa | 10 | |
Power |
| 50Hz 380V | |

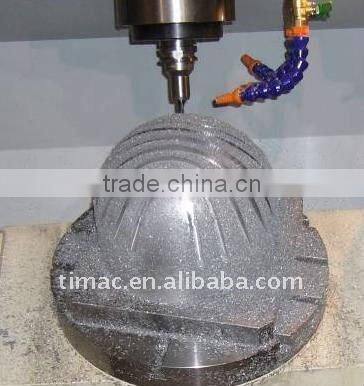

Example workpieces:
