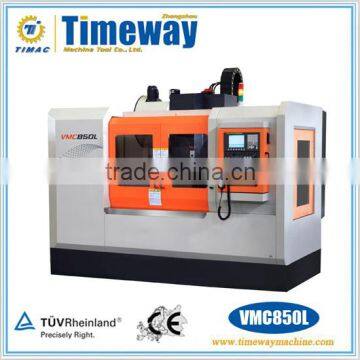

Full-protection Vertical CNC Machine Centre with Linear Guide Rail

Full-protection Vertical CNC Machine Centre with Linear Guide Rail

VMC640L    VMC850L    VMC1000L    VMC1100L    VMC1200L    VMC1300L

Summary

• This series vertical machining center adopts the moving structure of cross sliding table and sliding guide, which is mainly applied in processing of middle and small-scale complicated parts.
• Apply the computer-aided engineering(CAE) system to finish the optimized structure design and enhance the reliability of machine tool, and the finite element method(FEM) to take the scientific analysis and optimization of design structure, which can guarantee the rigidity and stability of the whole machine structure.
• It can finish all kinds of processing, such as milling, drilling, expanding, boring, tapping and profile milling at one time of clamping.
• It is suitable for the parts processing with high precision, multipe procedure and complicated shape. It is the key facility in industries of general machinery, mold, aviation, energy and traffic.

Tool Magazine

• Safe, reliable and efficient, T-T: 1.5seconds.

Worktable

• Treated by the high-frequency quenching with the hardness up to HRC45°, Grinded by the imported guide grinding machine to result in the good precision stability.

Ball screw & Linear slide way

• Taiwan brands C3-class precision ball screw & high precision linear guide.

Spindle

• Adopt the TW KENTURN spindle to increase the stability of heavy cutting.

Automatic oiling system

• Imported automatic oiling system make sure machine operated stably.

Standard Configuration

• FANUC 0i mate-MD CNC system
• Electrical cabinet A/C
• Tool cooling
• Commenication interface
• Automatic oiling system
• Air gun & work light
• Manual Pulse
• Water tank

Optional Configuration

• FANUC 0i MD CNC system
• MITSUBISHI CNC system
• SIEMENS CNC system
• GSK CNC system
• Oil coolant
• 10000rpm spindle
• China conveyor
• C.T.S
• Rotary table
