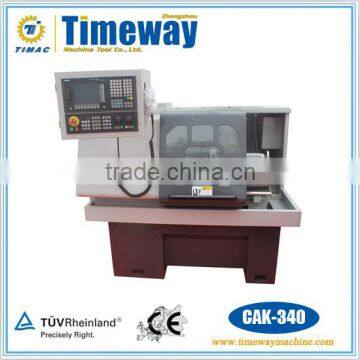

SIEMENS Big Spindle Bore Flat Bed CNC Lathe Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	340/400mm	Brand Name	TIMAC
Model Number	CAK-340 CAK-400	Voltage	as customer's request
Power(W)	3 kw	Dimension(LWH)	15501360700mm
Weight	1100/1200kg	Certification	CE & ISO
After-sales Service Provided	Engineers available to service machinery overseas

SIEMENS Big Spindle Bore Flat Bed CNC Lathe Machine for sale

(CAK-340 CAK-400)

Product Description

Features:

• Hardened & ground guideway, hardness is up to HRC55.

• Adopt lead screw from HJMC

• Electric tool post from Ya-xing

• X-axis with large travel wide guideways.

Standard Accessories:

SINUMERIK 808D controller, Manual 3-jaw self-centering chuck, Inverter variable speed spindle,

4 station electric tool post, Automatic lubricating unit, Manual moving tailstock, Cooling system, Working light

General tools.

Optional Accessories:

Full-closed guard, Gang type tool post, 6 station electric tool post, Sleeve spring collet, Hydraulic hollow chuck

Deatils Show:

Parameter:

Model	CAK-340	CAK-400
Max. swing dia. over bed	Φ 340mm	Φ 400mm
Max. swing dia. over carriage	Φ 170mm	Φ 200mm
Distance between two centers	435mm	535mm
Spindle bore	Φ 42mm	Φ 54
Spindle taper	MT5	MT6
Spindle speed	100~2500(4000)r.p.m	50~2000(3500)r/min
Max. longitudinal travel (Z-axis)	435mm	515mm
Max. cross travel (X-axis)	260mm	300mm
Rapid feed for Z-axis	8m/min	8m/min
Rapid feed for X-axis	6m/min	6m/min
Min. setting unit	0.001mm	0.001mm
Tool post stations	4/6/gang type	4/6/gang type
Section of tool shank	20×20mm	20×20mm
Tailstock sleeve travel	70mm	140mm
Tailstock sleeve taper	MT3	MT4
Main motor (Inverter)	3 kw	4 kw
Overall dimensions (L×W×H)	1550×1360×1700mm	1820×1400×1730mm
N.W/G.W	1100/1200kg	1330/1430kg
