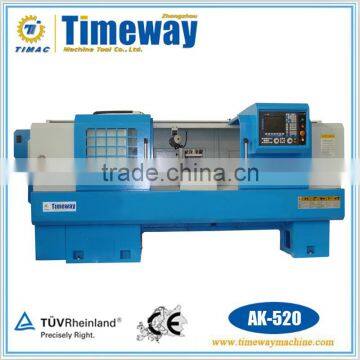

Flat Bed CNC Lathe AK-520
- Tianjin Port
- T/T
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 520mm | Brand Name | TIMAC | |
| Model Number | AK-520 | Voltage | As clients' request | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 1870/2120/2370 x 1200 x 1420mm | |
| Weight | 1.6/1.8/2 tons | Certification | CE norms |
Product Description
Economical Flat Bed CNC Lathe
Features:
- Solid block machine base construction with good rigidity and nice looking,width of bed guide way is 400mm.
- Surface of bed guide way,the part supporting main spindle and gears are dealed by chilling,and are milled and turned precisely,so the precision are well held.
- The X-axis and Y-axis bed guide ways are glued by "TSF" polyvinyl fluoride soft belts,and are smooth and enduring in low speed.
- The surfaces of bed guide ways and ball-screws use automatic lubrication system ,reliable and conveniednt.
- Driving motor subject to user's option,stepping motor and servo motor are availabe.
- Controling system subject to user's option completely.
Parameter:
Specification | Unit | AK-420 | AK-520 | |
Capacities | ||||
Swing over bed | mm | 420 | 520 | |
Swing over carriage | mm | 210 | 300 | |
Max. length of workpiece | mm | 500 / 750 / 1000 / 1500 / 2000 | ||
Max.cutting length | mm | 350 / 600 / 850 / 1350 / 1850 | ||
Width of guideway | mm | 400 | ||
Spindle | ||||
Spindle nose | mm | C6 | C8 | |
Spindle bore | mm | 58 | 80 | |
Inner taper of spindle nose/Dia.of the big end | mm | 1:20/63 | 1:20/86 | |
Spindle speed and range | r.p.m | 27.5-2200 | 25-2000 | |
Feed motion | ||||
min.feed increment of x-/z-axis | mm | 0.001/0.001 | ||
Rapid speeds of x-/z-axis | mm/min | 4000/6000 | ||
max.travel of x-axis | mm | 300 | ||
Tool post | ||||
Tool-post working position |
| V4 / V6 / H6 | ||
Indexing time | s | 2.4(V4) 2.2(V6) 1.6(H6) | ||
Indexing repeatility | mm | 0.008 | ||
Size of tool shank | mm | 25 | ||
Tailstock | ||||
Diameter of Tailstock quill | mm | 85 | ||
Travel of tailstock quill | mm | 150 | ||
Taper Hole of tailstock quill | Morse | Morse No. 5 | ||
Accuracy | ||||
Workpiece accuracy |
| IT6IT7 | ||
Surface roughness | µm | Ra1.6 | ||
Others | ||||
Main power | kW | 7.5 | ||
Lathe weight | kg | 2600/2900/3200/3600/4000 | ||
Overall dimensions(Length×width×height) | mm | 2380/2610/2860/3430/3910×1340×1750 | ||
*** Standard Accessories:
FANUC 0i mate TD CNC system, 3 jaw chuck, 4 station electric tool post, Coolant system, Auto. Lubrication unit, Lighting unit,
Manual moving tailstock, Semi-closed guard, General tools, Operator manuals (English edition), etc.
*** Optional Accessories:
6 station electrical tool post;
Hydraulic solid chuck;
Hydraulic hollow chuck;
Hydraulic tailstock.
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
