(CNC) Hydraulic Press Brake HPB-63/3200, HPB-125/4000, CPB-160/6000
- China port
- T/T Credit Card PayPal
You May Like
Product Details
| Brand Name | TIMAC | Model Number | HPB-63/3200, HPB-125/4000, CPB-160/6000, CPB-700/7000, ...... | |
| Machine Type | Press Brake | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Other, Steel | Power | Other, Hydraulic, CNC | |
| Automation | Automatic |
Product Description

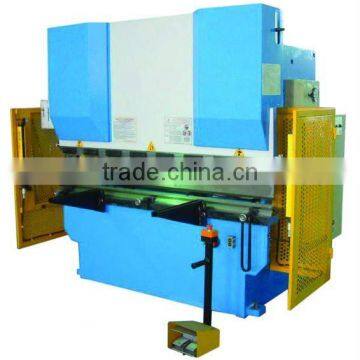

(CNC) Hydraulic Press Brake
* The press brake adoption whole steel welded structure, and it has enough intensity and rigidity.
* The RAM stroke and the back gauge can be automatically adjusted by CNC controller.
* A hydraulic system is used for the machine.
* A feeding valve is used to speed up the RAM travel to save energy.
* The operations of the machine are realized by the hydraulic valves.
* A gear pump is used to reduce the noise of the machine, which can achive the environmental standard.
* The dies are made of carbon steel, which have good rigidity and durable, and they are equipped with adjusting wedges of high precision.
* The CNC system can auto calculate the bending angle.
* The CNC system can also realize alarming function, which can avoid overload and damage to machine.
| Model | Nominal pressure | Length of working table | Distance between uprights | Throat depth | Ram stroke | Motor power |
| KN | mm | mm | mm | mm | kw | |
| 40/2200 | 400 | 2200 | 1700 | 200 | 100 | 4 |
| 40/2500 | 400 | 2500 | 1900 | 200 | 100 | 4 |
| 50/2500 | 500 | 2500 | 1900 | 250 | 100 | 4 |
| 50/3200 | 500 | 3200 | 2500 | 250 | 100 | 4 |
| 63/2500 | 630 | 2500 | 1900 | 250 | 120 | 5.5 |
| 63/3200 | 630 | 3200 | 2500 | 250 | 120 | 5.5 |
| 80/3200 | 800 | 3200 | 2500 | 250 | 120 | 5.5 |
| 80/4000 | 800 | 4000 | 3000 | 250 | 120 | 5.5 |
| 100/2500 | 1000 | 2500 | 1900 | 320 | 120 | 7.5 |
| 100/3200 | 1000 | 3200 | 2500 | 320 | 120 | 7.5 |
| 100/4000 | 1000 | 4000 | 3000 | 320 | 120 | 7.5 |
| 100/5000 | 1000 | 5000 | 4000 | 320 | 120 | 7.5 |
| 125/2500 | 1250 | 2500 | 1900 | 320 | 120 | 7.5 |
| 125/3200 | 1250 | 3200 | 2500 | 320 | 120 | 7.5 |
| 125/4000 | 1250 | 4000 | 3000 | 320 | 120 | 7.5 |
| 125/5000 | 1250 | 5000 | 4000 | 320 | 120 | 7.5 |
| 160/3200 | 1600 | 3200 | 2500 | 320 | 200 | 11 |
| 160/4000 | 1600 | 4000 | 3000 | 320 | 200 | 11 |
| 160/5000 | 1600 | 5000 | 4000 | 320 | 200 | 15 |
| 160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 15 |
| 200/3200 | 2000 | 3200 | 2600 | 320 | 200 | 15 |
| 200/4000 | 2000 | 4000 | 3100 | 320 | 200 | 15 |
| 200/5000 | 2000 | 5000 | 4000 | 320 | 200 | 15 |
| 200/6000 | 2000 | 6000 | 4800 | 320 | 200 | 15 |
| 250/3200 | 2500 | 3200 | 2600 | 400 | 250 | 18.5 |
| 250/4000 | 2500 | 4000 | 3200 | 400 | 250 | 18.5 |
| 250/5000 | 2500 | 5000 | 4000 | 400 | 250 | 18.5 |
| 300/4000 | 3000 | 4000 | 3300 | 400 | 250 | 22 |
| 300/5000 | 3000 | 5000 | 4000 | 400 | 250 | 22 |
| 300/6000 | 3000 | 6000 | 5800 | 400 | 250 | 22 |
| 400/5000 | 4000 | 5000 | 4000 | 400 | 250 | 30 |
| 400/6000 | 4000 | 6000 | 4800 | 400 | 250 | 30 |
| 500/6000 | 5000 | 6000 | 4800 | 400 | 300 | 37 |
| 600/7000 | 6000 | 7000 | 5600 | 400 | 300 | 45 |
| 700/7000 | 7000 | 7000 | 5600 | 400 | 300 | 45 |
