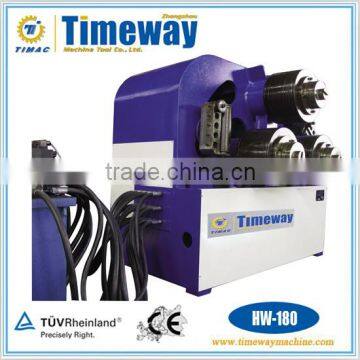

CNC Vertical Full Hydraulic Pipe and Tube Profile Bending Machine with Arc Adjustable(HW-180)
USD $10,000 - $100,000
/ Set
1 Set(Min. Order)
- China Port
- T/T
You May Like
-
Special Use NC Hydraulic Three Roller Plate Rolling Machine for Ships Building or Trailer
-
PLC Control Hydraulic Arc Down-Adjusting Three Roller Plate Bending Machine
-
CNC Sheet Metal Bending Machine / CNC Press Brake
-
WC67Y series Hydraulic Sheet Metal Bending Machine
-
8 Axis CNC Wire Profile Forming Bending Machine
-
PLC Control Hydraulic Horizontal Down-Adjusting Plate Rolling Machine
Product Details
| Condition | New | Brand Name | TIMAC | |
| Model Number | HW-180 | Machine Type | Pipe and Tube Bending Machine | |
| Raw Material | Other, pipe, steel bar | Material / Metal Processed | Other, Aluminum, carbon steel, stainless steel | |
| Power | Cnc | Automation | Automatic | |
| Extra Services | End Forming | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CNC Full Hydraulic Bottom Rollers Arc Adjusting Pipe and Tube
Profile Bending Machine
HW-180
Main Outlook
Product Description
Features:
The material winding machine producted by our company is specially used in the volume curved angle steel, channel steel, I-steel, flat steel, side steel, round steel and so on, each kind of profiled bar highly effective processing equipment, and may one time winding circle, corrective round working procedure, widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and so on.
Specifications List
Technical Parameters
| Specifications | Model | HW-6 | HW-16 | HW-30 | HW-45 | HW-75 | HW-100 |
| Max. anti-winding cass-section moulds(cm³) | 6 | 16 | 30 | 45 | 75 | 100 | |
| Winding speed(m/min) | 6 | 5 | |||||
| Max. Yield strength(Mpa) | 245 | ||||||
Angle steel internal winding | Max. cross-section(mm) | 40*40*5 | 70*70*8 | 90*90*10 | 100*100*16 | 120*120*10 | 125*125*14 |
| Min. winding diameter(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2000 | |
| Min. cross-section(mm) | 20*20*3 | 30*30*3 | 35*35*3 | 36*36*5 | 38*30*4 | 40*40*4 | |
| Min. winding diameter(mm) | 400 | 500 | 560 | 600 | 600 | 800 | |
Angle steel external winding | Max. cross-section(mm) | 50*50*5 | 75*75*10 | 90*90*10 | 100*100*16 | 120*120*10 | 125*125*14 |
| Min. winding diameter(mm) | 800 | 1000 | 1000 | 1300 | 1600 | 2000 | |
| Min. cross-section(mm) | 20*20*3 | 30*30*3 | 35*35*3 | 36*36*3 | 38*38*4 | 40*40*4 | |
| ding diameter(mm) | 400 | 400 | 500 | 600 | 760 | 800 | |
Channel steel internal winding | Model | 8 | 12 | 18 | 20 | 25 | 28 |
| Min. winding diameter(mm) | 600 | 800 | 900 | 1000 | 1100 | 1200 | |
Channel steel external winding | Model | 8 | 14 | 18 | 20 | 25 | 28 |
| Min. winding diameter(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | |
Flat steel internal winding | Max. cross-section(mm) | 100*18 | 150*25 | 180*25 | 200*30 | 210*40 | 250*40 |
| Min. winding diameter(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | |
Flat steel external winding | Max. cross-section(mm) | 50*12 | 75*16 | 90*25 | 100*30 | 110*40 | 120*40 |
| Min. winding diameter(mm) | 500 | 760 | 900 | 1000 | 1100 | 1200 | |
| Machine dimensions(L*W*H)(m) | 1.21*0.95*1 | 2.08*1.35*1.2 | 2.06*1.19*1.3 | 1.6*1.26*1.53 | - | 2.94*1.9*1.77 | |
| Specifications | Model | HW-140 | HW-180 | HW-280 | HW-400 | HW-500 |
| Max. anti-winding cass-section moulds(cm³) | 140 | 180 | 280 | 400 | 500 | |
| Winding speed(m/min) | 5 | 4 | ||||
| Max. Yield strength(Mpa) | 245 | |||||
Angle steel internal winding | Max. cross-section(mm) | 140*140*16 | 150*150*16 | 160*160*25 | 180*180*14 | 200*200*24 |
| Min. winding diameter(mm) | 2400 | 2600 | 3000 | 3600 | 4000 | |
| Min. cross-section(mm) | 45*45*5 | 50*50*6 | 63*63*6 | 75*75*6 | 85*85*6 | |
| Min. winding diameter(mm) | 1000 | 1200 | 1300 | 1400 | 1600 | |
Angle steel external winding | Max. cross-section(mm) | 140*140*16 | 150*150*16 | 180*180*20 | 200*200*24 | 250*250*25 |
| Min. winding diameter(mm) | 2200 | 2600 | 3000 | 3600 | 4000 | |
| Min. cross-section(mm) | 45*45*5 | 50*50*6 | 63*63*6 | 75*75*6 | 85*85*6 | |
| ding diameter(mm) | 800 | 1000 | 1100 | 1260 | 1600 | |
Channel steel internal winding | Model | 30 | 32 | 36 | 40 | 50 |
| Min. winding diameter(mm) | 1200 | 1500 | 1800 | 2000 | 2400 | |
Channel steel external winding | Model | 30 | 30 | 32 | 36 | 40 |
| Min. winding diameter(mm) | 1700 | 1800 | 1900 | 2000 | 2400 | |
Flat steel internal winding | Max. cross-section(mm) | 280*50 | 320*50 | 350*60 | 380*75 | 500*76 |
| Min. winding diameter(mm) | 1300 | 1400 | 1600 | 2000 | 2400 | |
Flat steel external winding | Max. cross-section(mm) | 150*40 | 180*40 | 190*50 | 200*56 | 200*60 |
| Min. winding diameter(mm) | 1500 | 2000 | 2100 | 2200 | 2500 | |
| Machine dimensions(L*W*H)(m) | 2.18*2.5*2.58 | 2.3*2.55*2.42 | - | - | - | |
