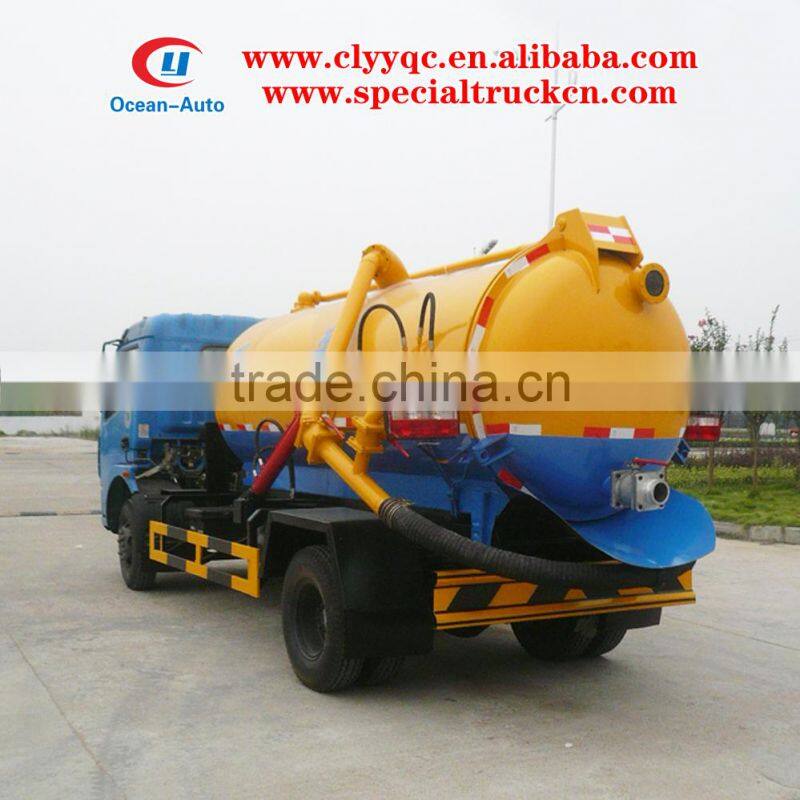

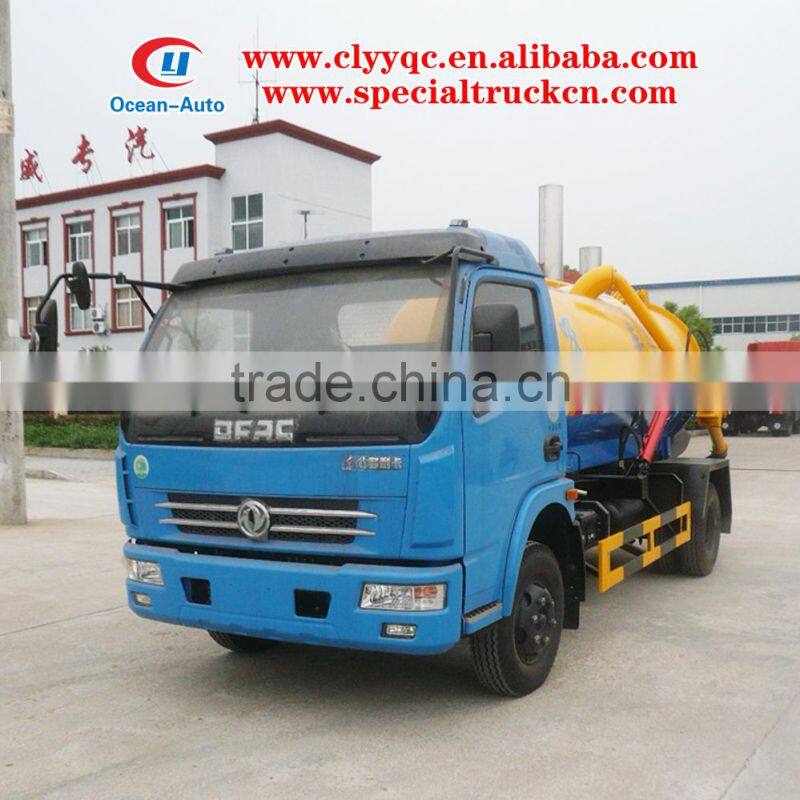

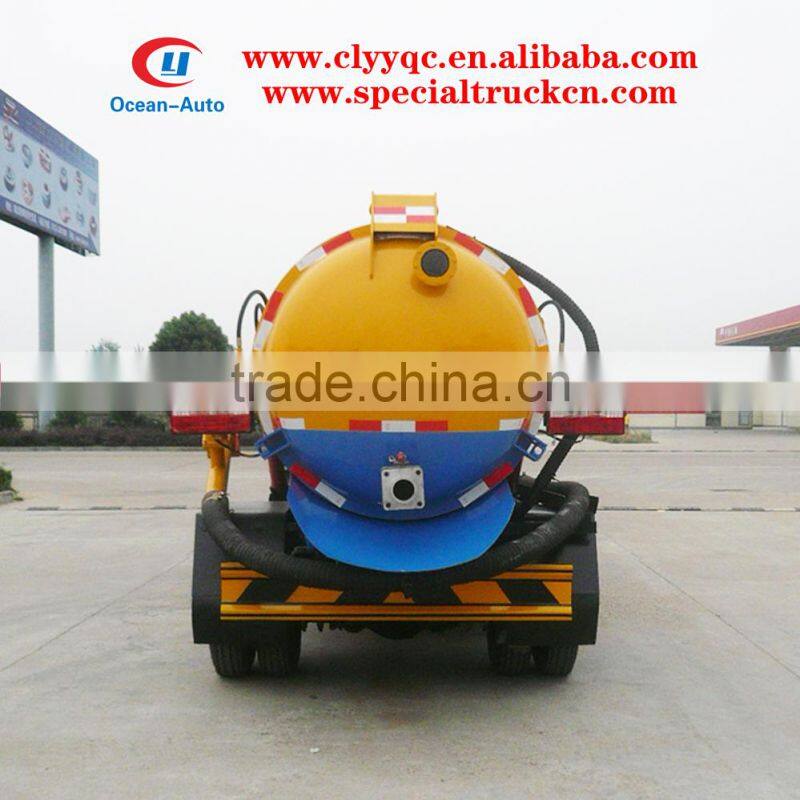

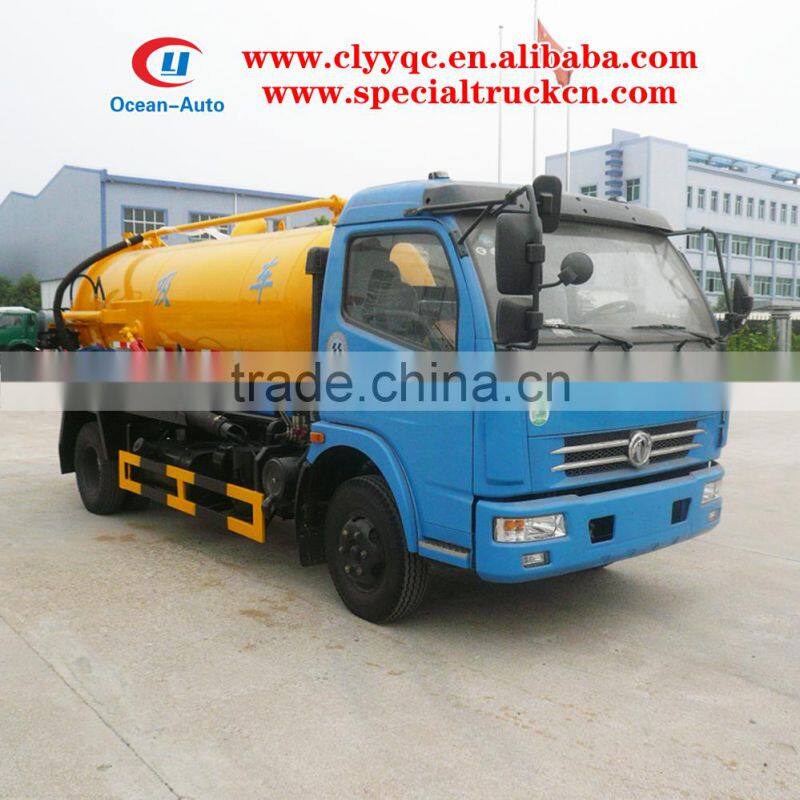

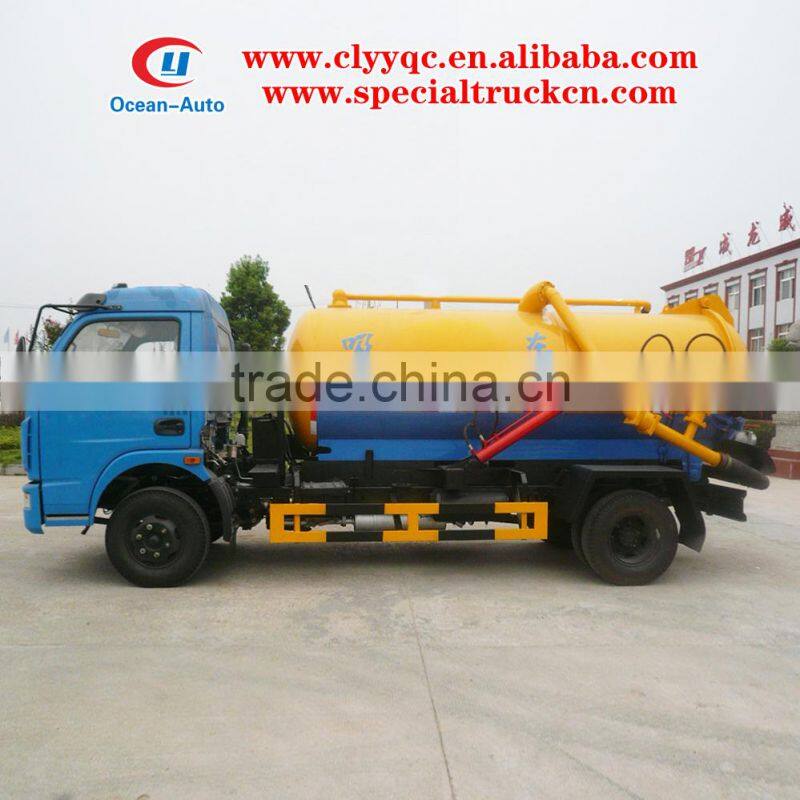

DFAC CSC5070GXW3 The Best Sewage Suction Truck Supplier in China

Main specifications

Product model,name

CSC5070GXW3 Sewage suction truck

Gross weight(Kg)

7495

Driving type

4*2

Payload (Kg)

3500

Overall dimension (mm)

5950*2045*2450

Curb weight(Kg)

3800

Cab seats (man)

3

Approach/departure angle (°)

20/15

Front/rear hang(mm)

1115/1480

Axle No.

2

Wheelbase (mm)

3300

Axle load(Kg)

3195/4300

Max speed(Km/h)

90

Chassis specifications

Chassis model

EQ1070T35DJ3AC

Manufacture

Dongfeng Automobile Company

Brand name

Dongfeng

Overall dimension (mm)

5820*1940*2080

Tire specification

7.00-16

Tires No.

6

Steel spring number

8/9+5

Front track(mm)

1586

Fuel type

Diesel

Rear track(mm)

1530

Emission standard

Euro Ⅲ

Gear box

5 forward &1reverse

Cab

  Single row, luxurious interior and seat, with power steering, optional A/C

Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

YC4F115-30

 Guangxi yuchai machinery group Co., LTD

2659

85

Tank body

Tank capacity(m³)

4

Tank material

Q235 carbon steel

Main Characteristic

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of

 the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the

sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high

efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.

Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
