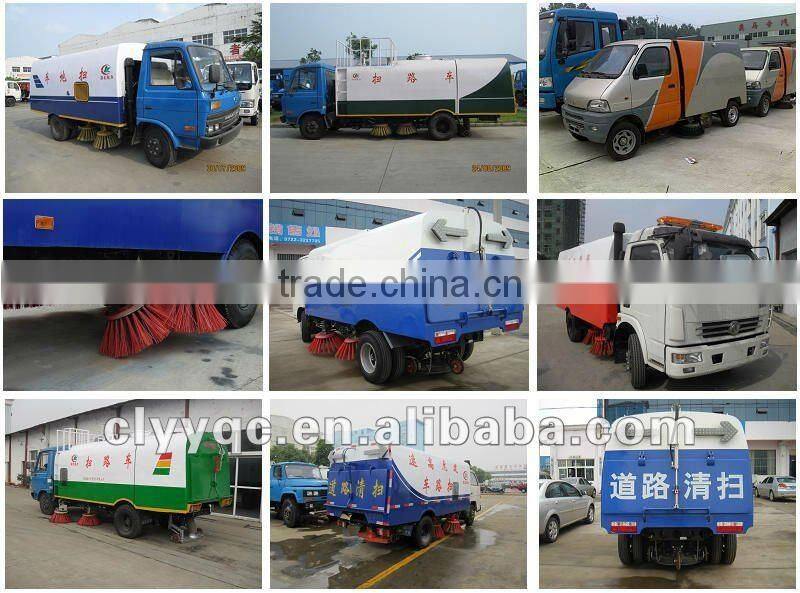

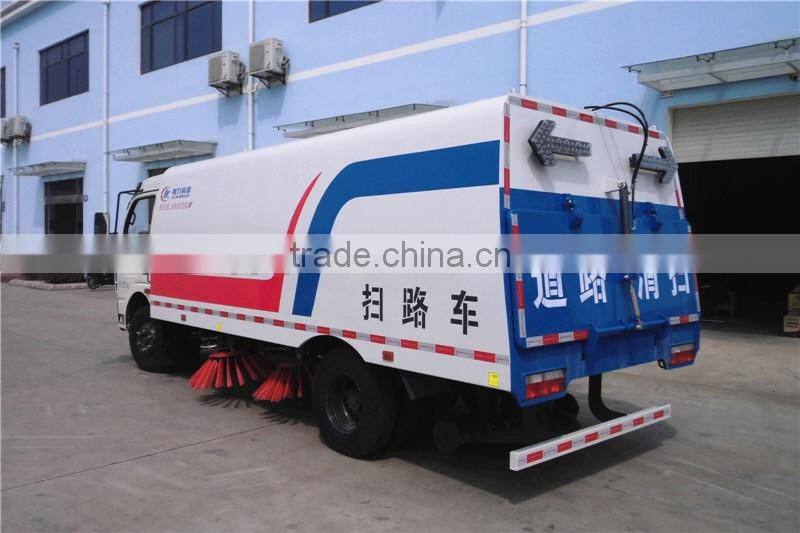

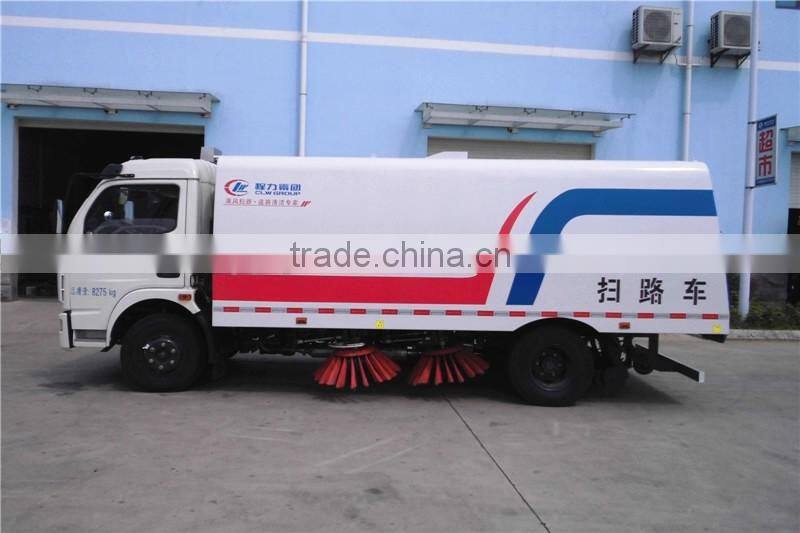

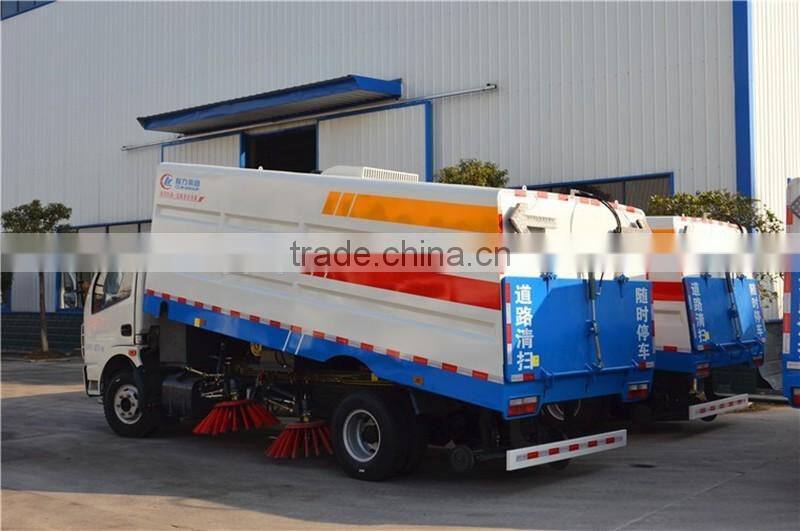

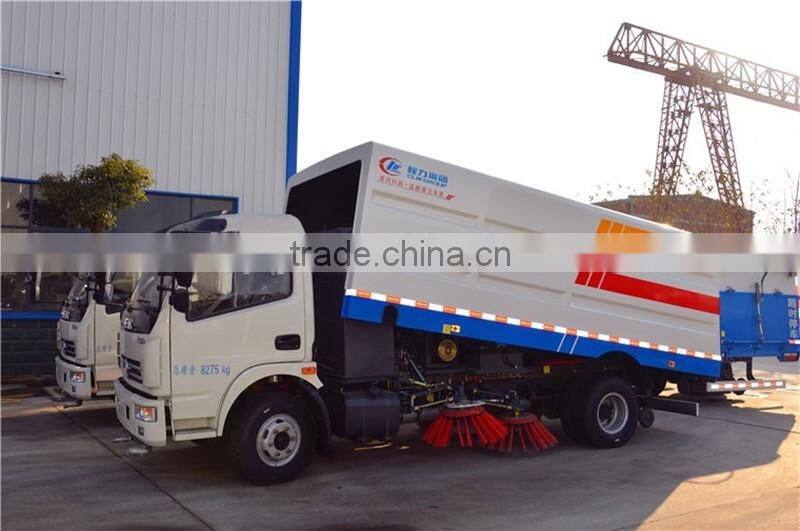

Cheap Price DFAC 4*2 Road Clean Truck for Sale

Main specifications

Product model,name

HCQ5081TSLDFA Road Sweeper Truck

Gross weight(Kg)

8275

Drive type

4 X 2

Payload (Kg)

2100

Overall dimension (mm)

7160×2200×2750

Curb weight(Kg)

5980

cab seats (man)

3

Approach / departure angle(°)

24/12

Front/rear hang(mm)

1210/2150

Number of axles

2

Wheelbase(mm)

3800

Axle load

3310/4965

Max speed(Km/h)

95

Chassis specifications

Chassis model

DFA1080SJ12D3

Manufacturer

DongFeng  Motors Co., Ltd.

Brand name

DongFeng

Overall dimension(mm)

6815×2080×2440

Tire specification

7.50R16

Tires No.

6

Steel spring number

8/10+7,11/9+7

Front track(mm)

1770

 Fuel type

Diesel

Rear track(mm)

1586

Emission standard

Euro IV

Transmission

5 forward gear,1 reverse gear

Cabin

Car interiors, with the direction of power and USB interface, cassette player, with air conditioning,

Engine model

Engine manufacture

Displacement(ml)

Power(Kw)

CY4102-CE4C

DongFeng Chaoyang Diesel Co.,Ltd

3856

91

Road Sweeper Performance

Trash tank volume (m3)

5

Water tank volume (m³)

2

Material of trash tank

Stainless steel

Material of water tank

Stainless steel

Model of auxiliary engine

JX493G

Power of auxiliary engine(Kw)

57KW

Manufacturers of auxiliary engine

JiangXi Engine Co., Ltd.

Max sweeping width(mm)

3200

Sweeping speed (km / h)

3-20

Sweeping capacity(m2/h)

9000- 60000

Maximum Grain size and quality (mm)

100mm±1.5kg

Cleaning Rate

96%

Road Sweeper Features

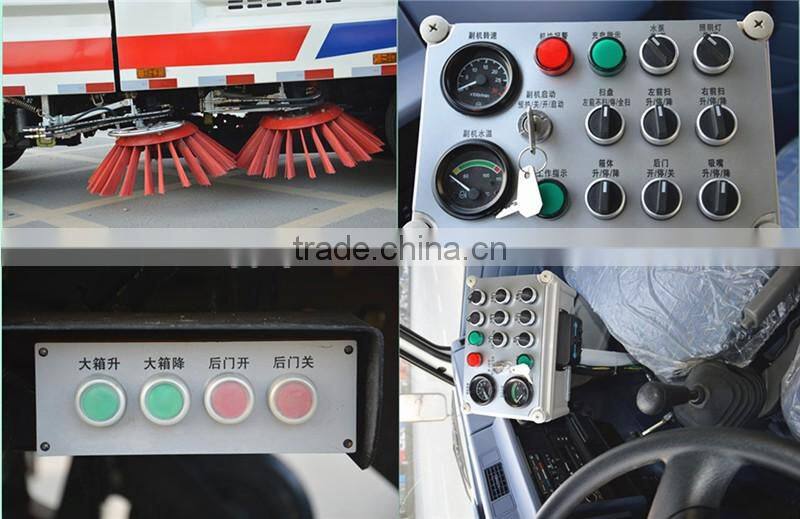

1.The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate!

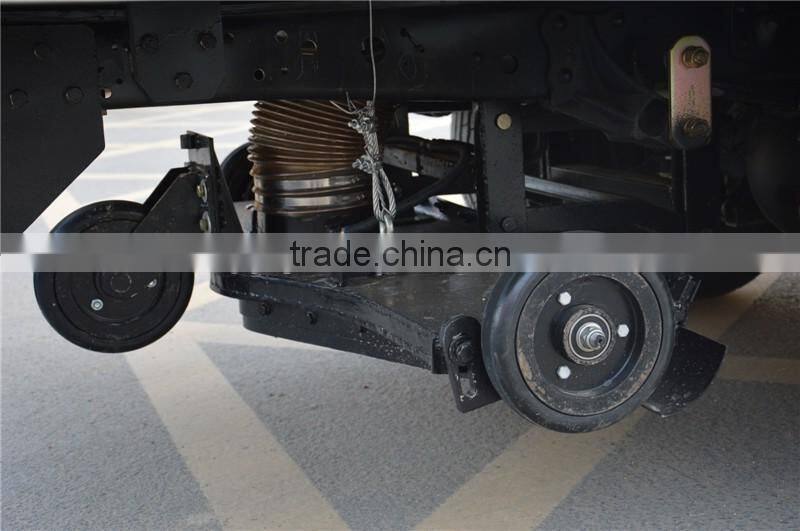

2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance protections and features automatic reset function, and retracted automaticly, then reseted automaticly after over some obstacles!

3.Both of side of the scan disk can be working altogether, or unilateral work independently.

4.The core components of hydraulic systems adopts the original import!
