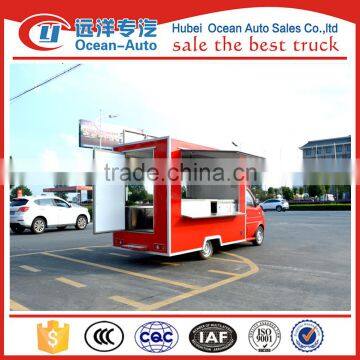

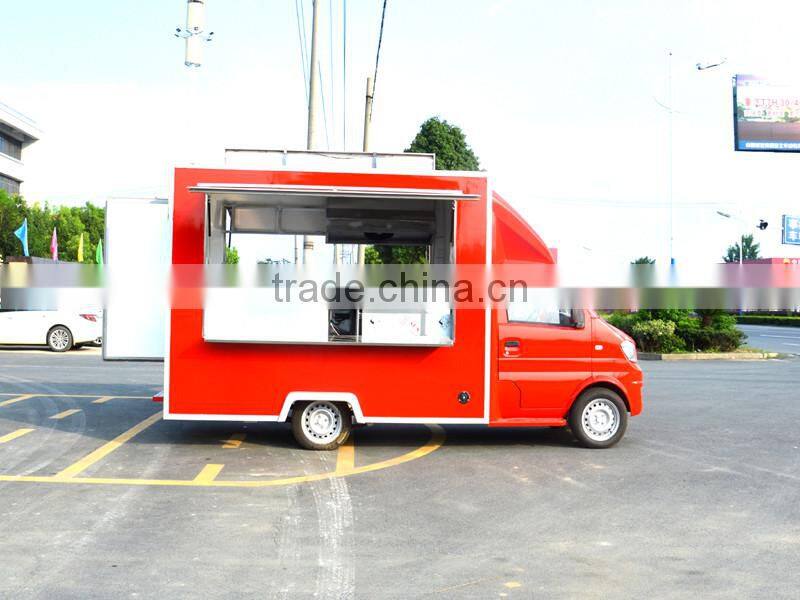

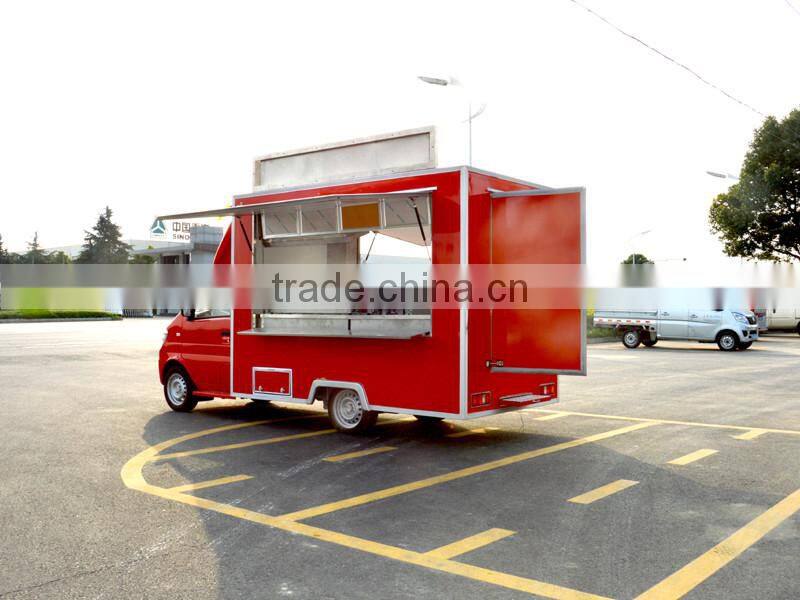

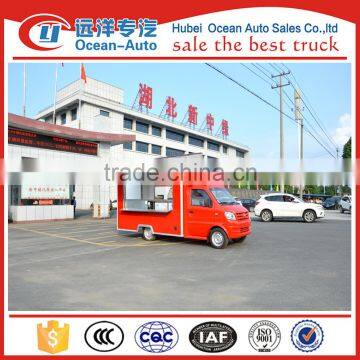

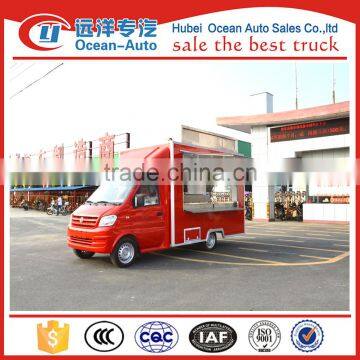

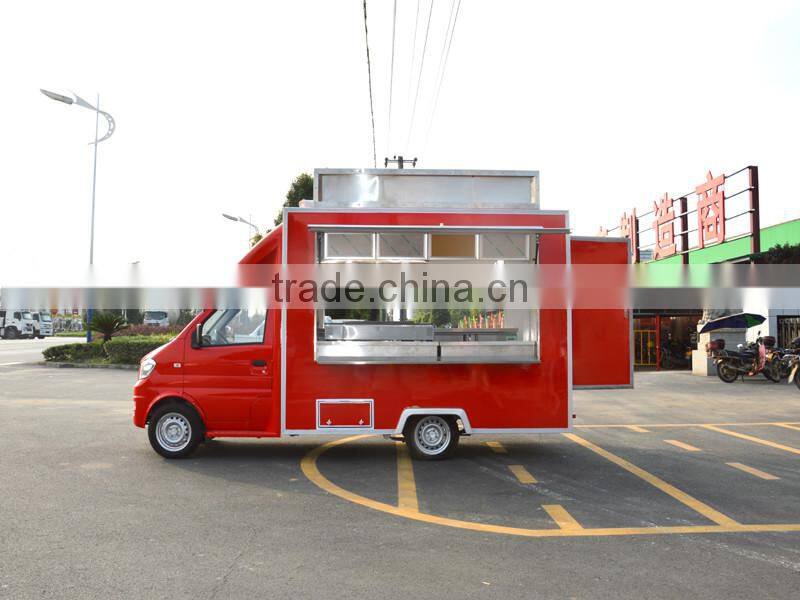

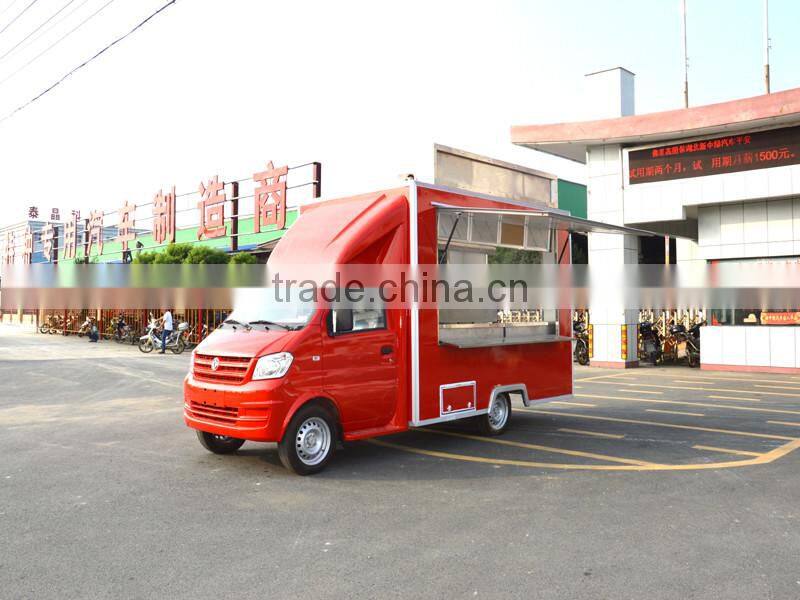

Dongfeng Fast Food Truck Mobile Food Trailer for Sale

[ Main Technical Parameters ]

Production name

XZL5021XSH5 Mobile food Truck

GVW(kg)

1990

Rated weight (Kg)

300

Curb weight (kg)

1560

Cab seats (man)

2

Overall dimensions(mm)

4850×1810×2565,2605,2840,2980

Cabinet size(mm)

3100×1680×1780

Approach / departure angle(°)

37/13

F/R overhang(mm)

590/1500

Number of axles

2

Wheel base(mm)

2760

Axle-load(Kg)

960/1030

Max speed(Km/h)

110

[ Chassis Technical Parameters ]

Chassis model

EQ1021TFJ53

Chassis Name

Brand

Dongfeng

Manufacturer

Dongfeng well-off automobile co., LTD

Tire specification

165/70R14

Number of tire

4

Front track base(mm)

1310

Rear track base(mm)

1310

Fuel Type

gasoline

Emission standard

Euro V

Gearbox

5 forward gears and 1reverse

Cab

Single row, left steering wheel

Engine model

Engine Manufacturer

Displacement (ml)

Max power(Kw)

Max Horsepower(hp)

BG10-07

ChongQing YuAn HuaiHai Power Co. Ltd

1012

51

70

Configuration Instructions :

1.The compartments is made of cold-rolled steel sheet or glass fiber reinforced plastic material.

2.The compartments with heat insulation function and the floor made of skidproof , waterproof and wear-resistant aluminum checkered plate .

3.The top of the compartments is closed and can not open , but the left and right side and the back can be expanded and there is vending bar on both left and right side. 4.The internal compartments is installed with LED vending floodlights or two columns spotlight (5pcs / column), top exhaust fan,megaphone, master switch, USB interface, large space locker.

5.The  outside of the compartments is installed two loudspeakers, 105A battery, 220V external power supply interface , 15m external power supply cord, telescopic truck pedal.

6. Different truck color  and skin stickers are optional .

Optional Configuration :

Internal compartments equipment can be customized according to user’s requirements:

1.Generator/freezer/cold drink machine/stand booth/cooker, etc.;

2.The left and right sides of the compartments body can choose different structure forms of side panel;

3. The selling windows can be also choosed on any side of the the truck body according to customer demand;

4.The bottom board can be unfold to extend the cargo area in vending operations;

5. The glass sliding window can be also choosed on both side of the compartments body;

6. The back door of the compartment can choose single open door, double flat open door or lift-up door;

7. Both compartments’ sides and the back door can be optional advertising glass roller light box or LED screen;

8.Truck roof can choose overhead air conditioning, baggage holder, left and right sides can choose sunshade ;

9.The tail can choose crawling ladder.
