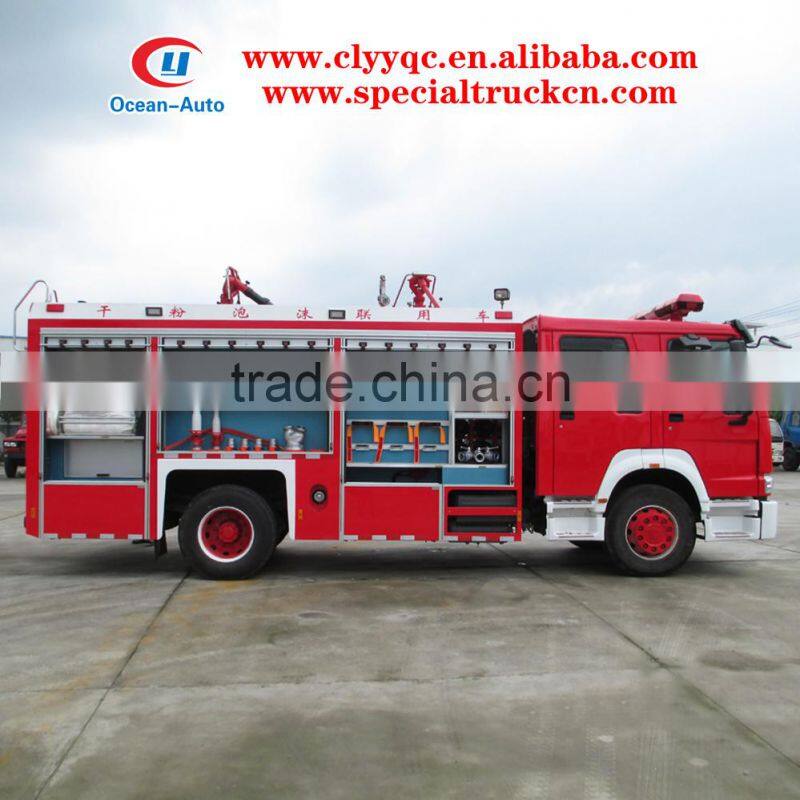

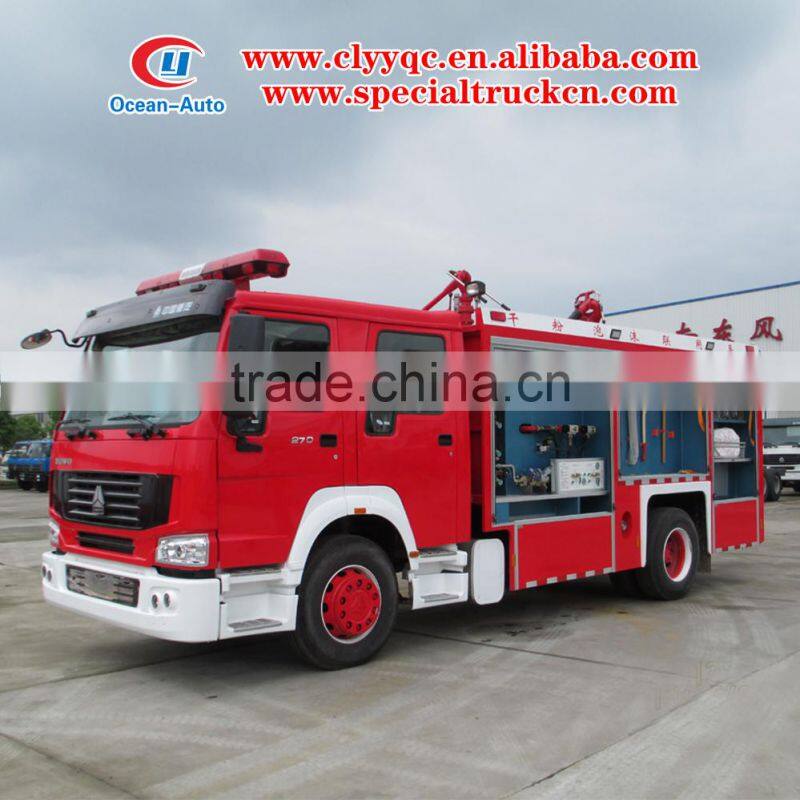

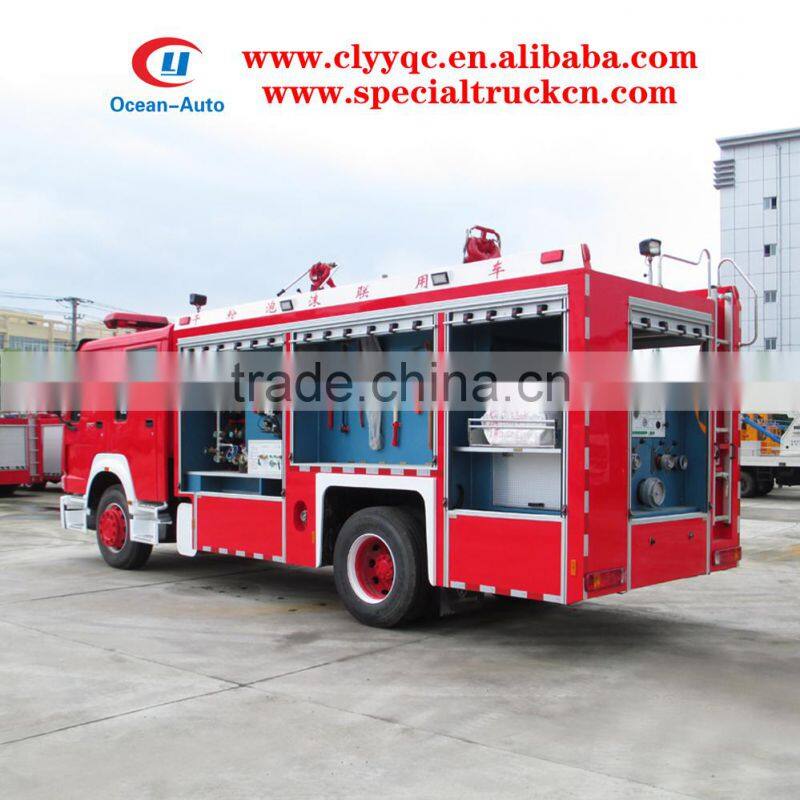

SINOTRUK HOWO 5000liter Water Tank 1000liter Foam Tank Fire Truck for Sale

Main specification

Product model and name

JDF5190GXFPM70Z Foam and Powder Combination Fire Truck

Gross weight(Kg)

19000

Drive type

4X2

Payload(Kg)

7000

Overall dimension(mm)

8820X2500X3450

Curb weight(Kg)

11550

Cab seats

3

Approach/departure angle(°)

16/10

Front/rear hang(mm)

1500/2650

Axle No.

2

Wheelbase(mm)

4600

Axle load(Kg)

6000/13000

Max speed(Km/h)

85

Chassis specification

Chassis model

ZZ1167M4617C

Manufacturer

China SINOTRUK Group Jinan Truck Co.,Ltd

Brand name

SINOTRUK

Dimension(mm)

7990X2496X2958

Tyre specification

11.00-20

Tyre No.

6

Steel spring number

10/9+6

Front track base(mm)

2022

Fuel type

Diesel

Rear track base(mm)

1830

Emission standard

Euro 3

Transmission

10 forward gear,2 reverse gear

Cab

Whole flat crew cab with four opening doors,all steel frame welded structure And hydraulic flip with air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

Horsepower(HP)

WD615.97E

China Heavy Duty Truck Group Co.,Ltd

9726

221

300

Foam and powder fire truck performance

Water tank volume(L)

5000

Foam tank volume(L)

1000

Dry Powder tank volume(L)

500

Foam monitor

Model:PL48 water and foam tank dual purpose fire monitor.

Foam flow rate:48L/S/1.0MPa.   Water flow rate:50L/S/1.0MPa.

Foam range:≥55m.         Water range:≥65m

Powder monitor

Model:FP20.  Spraying flow:20kg/s. Spraying pressure:1.4MPa.

Range:≥25m.     Left powder rate:≤15%.

Fire pump

Model:CB10/60. Flow rate:60L/S/1.0MPa.Water diversion time:≤45S(7M suction depth) Water pump drive type: sandwich type power take-off

Feature

Water and powder tank combination fire truck can spray water and powder at the same time.Adopted the independent passengers room and has 6 seats.Both dry powder and valves are made by stainless steel.This truck can be used to put out all kinds of fire,especially applied to save the liquid and gas fire etc.It is the indispensable fire extinguishing equipment for the fire department.
