Tractor Mounted Crane With Drilling Rig for Pole Hole Drilling

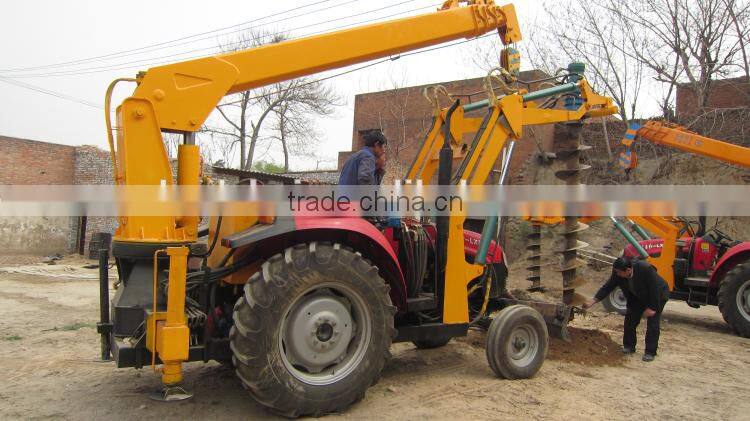

Tractor mounted crane with drilling rig for pole hole drilling

Introduction of Tractor crane

                 Tractor mounted crane with drilling rig for pole hole drilling  .it's designed by our boss who named Dahai, also  hydraulic pole digging machine have been invite to take part in the CCTV show  :" I love invention " got high mark and also bring us a lot of customers.

1.Dahai hydraulic pole drilling machine using YTO tractor mounded drilling rig can drilling hole at diameter of 300-1200mm ,deepth at 100-6000mm.

2.tractor post 5/8 tons crane on the back of tractor, can lifting pole at 12-15meters and over 15 meters. lifting weight at 5-8tons,max length of pole to tractor is 6 meters when lifting.

3.Per-bulldozer can bury pole in short time after vertical pole.

Parameter of Teactor crane

1/power: 100HP. 73.5KW four wheel tractor   2/The drilling depth: 0 m -6 M 3/Bore diameter: 0mm-1200mm 4/ Spiral drill hydraulic drive form: hydraulic hoist 5/Standard bar pit time: 40 seconds (500mm in diameter x depth 3M) 6/operate:one driver 7/ Approved:CE,ISO9001,ISO9002,SGS 8/Net/Gross Weight: 6.68t/6.8t  9/Package Dimension:full 20 feet container 10/color:yellow and green   11/Working principle: screw be pushed by power from hydraulic.

Working principle of Teactor crane

Tractor mounted crane with drilling rig for pole hole drilling  is widely using in Highway bridge construction isequipment with 7 founctions for choose :digging ,ditching, etc.suitable for building fast into the hole in foundation engineering construction machinery.

professional design screw drill ,can working well on very kinds of layer, also includethe pebble soil.

Advantages

1: What kind of drilling work can it do?

pile driver Mainly applies to drill wells for farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells. Geological explorations, sample taking, pilling driving drill.

2: What are the max. depth and the max. diameter of holes allowed for this drill rig?

300-1200mm diameter and 6m depth are available.  Here we sincerely inform that the final depth and diameter will subject to your special local working strata and drilling experience.

3: What kind of working strata is OK ?

Soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drilling bits.

4: What is your advantage over this drill?

Economical and worthy to owned by any family, company.    Practical and efficient by drilling speed of drilling a hole in 1 minute. Easy operate and maintain by only two workers.
