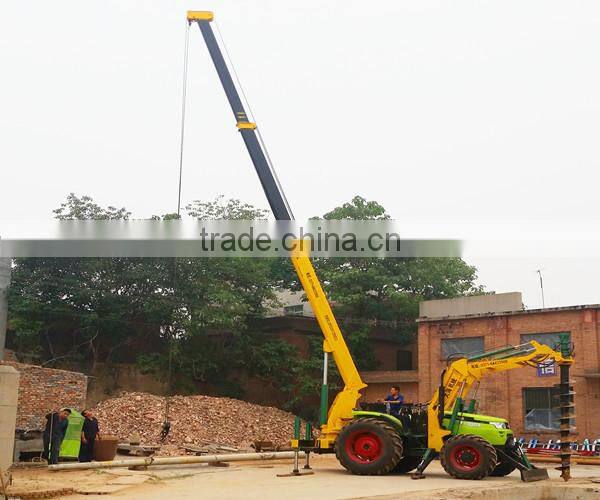

Wheeled Type Tractor Mounded Crane With Drilling Machine for 6 Meters Depth Hole Drilling

Wheeled type tractor mounded crane with drilling machine for 6 meters depth hole drilling

Introduction of  tractor crane

Wheeled type tractor mounded crane with drilling machine for 6 meters depth hole drilling is a machine who can digging hole,hanging up the wire rod and bury all alone.

One person opera and one help to fix the wire rod. Save manpower

and with high efficiency.easy working on The loess layer, clay layer, containing pebbles gravel soil, weathered

 rock and soil, frozen soil, building garbage, backfill sand, garbage layer.

1/power: 100HP. 73.5KW four wheel tractor 2/The drilling depth: 0 m -6 M 3/Bore diameter: 0mm-1200mm 4/ Spiral drill hydraulic drive form: hydraulic hoist 5/Standard bar pit time: 40 seconds  (500mm in diameter x depth 3M) 6/operate:one driver 7/ Approved:CE,ISO9001,ISO9002,SGS 8/Net/Gross Weight: 6.68t/6.8t  9/Package Dimension:full 20 feet container 10/color:yellow and green  11/Working principle: screw be pushed by power from hydraulic.

Features of tractor crane

Wheeled type tractor mounded crane with drilling machine for 6 meters depth hole drilling is with hydraulic ,so it working well and more easy, also save power, can working

in the place where is no electric power. Can be widely used in hard soil frozen and containing gravel area.

Can making hole  for 300-1200mm. Deep at 1000-6000mm. professional design of drill can digging more quickly, also work well on  The soil containing pebbles.

Vertical a pole include transport it ,digging hole, vertical it, bury it. normal way for pole vertical need people help, 10 people can vertical a wire rod in 2 hours.

Working principle of tractor crane

Unit structure of tractor crane with 50 horsepower tractor as power, a hydraulic pump, distributor drive the

speed reducer and drill pipe work, simple operation, strong off-road capability.

tractor is the power, lead machine working, hydraulic system control drill working, can give out high puch on drill, digging hole at deepth <6000mm, diameter of the drill can be changed.

new design ,add 2 more box rion on the arm of digger, so it can be more stable in digging.

Spare parts of tractor crane

 Factory Introduction:

 Gongyi Dahai machinery plantwas built up in 1980 and have been casting of machines for 30 years , covering an

area of about 20000 square meters.hydraulic digging machine is the main part deisgn by Dahai Pan ,who have been invite to the CCTV show  I love the invention.  be well knowen at his well use of hydraulic system.

Customers can come to our factory testing the machines and also can learn operate machine with the help of our drivers. welcome everybody
