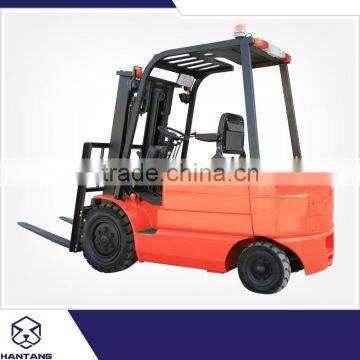

Forklift 3ton CPCD30 2-stage

FOB Price

US$ 8,500 - 9,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HANTANG	Model Number	CPCD30
Type	Manual Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	3000kg	Max. Lifting Height	4080mm
Min. Lifting Height	80mm	Fork Length	1220mm
Fork Width	125mm	Overall Dimensions	3800x1230x2095mm
Certification	ISO9001	After-sales Service Provided	Overseas service center available

1 Powerful engine

2 Low center of gravity, small turning radius, more stable and reliable

3 Comfortable seat for long-time operation

4 Safe overhead guard

5 Rear light for working in the dark

6 Dual air filter

7 Streamline balance weight

8 Side shifter is optional

9 Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6m/7.3mmast.

10 Optional engine: EURO II/III China engine; DEUTZ-DACHAI engine; ISUZU engine;

11 YANMAR engine.

Brand	WINGS
General
Model		CPCD30FR	CPCD35FR
Rated capacity	kg	3000	3500
Load center	mm	500	500
Power type		Diesel	Diesel
Transmission		Hydraulic/Mechanical
Dimensions
Lifting height	mm	3000	3000
Free lifting height	mm	80	80
Turning radius	mm	2500	2500
Overall length	mm	3800	3800
Overall width	mm	1230	1230
Overall height (mast lowered)	mm	2095	2095
Overall height (mast raised)	mm	4080	4080
Overall height (overhead guard)	mm	2110	2110
Fork length	mm	1220	1220
Fork width	mm	125	125
Fork thickness	mm	45	50
Performance
Max. driving speed (with/without load)	km/h	18/20	17/19
Max. lifting speed (with load)	mm/s	400	375
Max. traction (with/without load)	kn	15.5/10.5	16/11
Gradeability (with/without load)	%	15/20	15/20
Tilting angles (forward/backward)	°	6/12	6/12
Service weight	kg	4320	4580
Engine
Engine model		490BPG engine	490BPG engine
Power	kw	39	39
Rated speed	rpm	2650	2650
Displacement	L	2.67	2.67
No. of cylinder		4	4
Wheel
Front overhang	mm	465	465
Wheel base	mm	1700	1700
Front tread	mm	1000	1000
Rear tread	mm	970	970
Front tire		28x9-15	28x9-15
Rear tire		6.50-10	6.50-10

Packaging & Shipping

Payment Terms: T/T 30% in advance, and the balance by T/T after leaving the factory..

Delivery time: within 30 days after receiving the deposit.

Our Services

1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1200 working hours, whichever comes first.

2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.

3. Provide the parts free of charge in the guaranty time if the parts cannot work well.

4. Excess the guaranty; you can easily to buy from us with cost price anytime.
