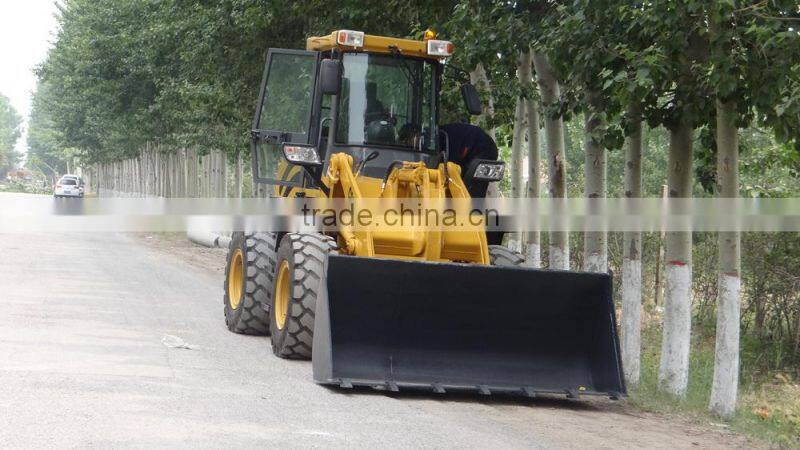

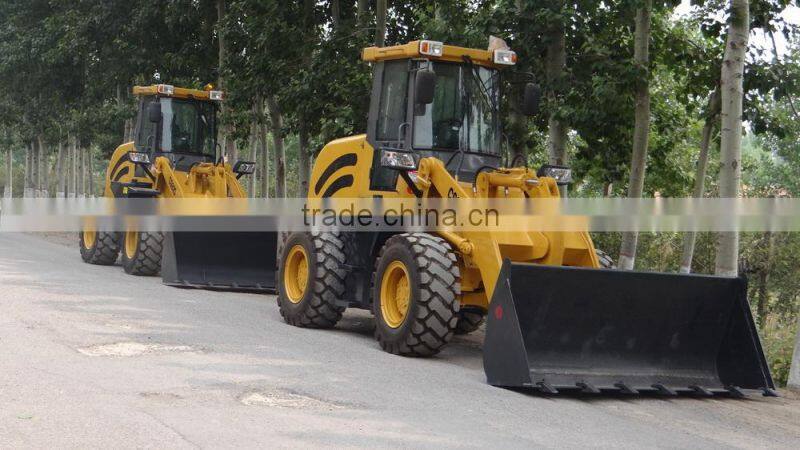

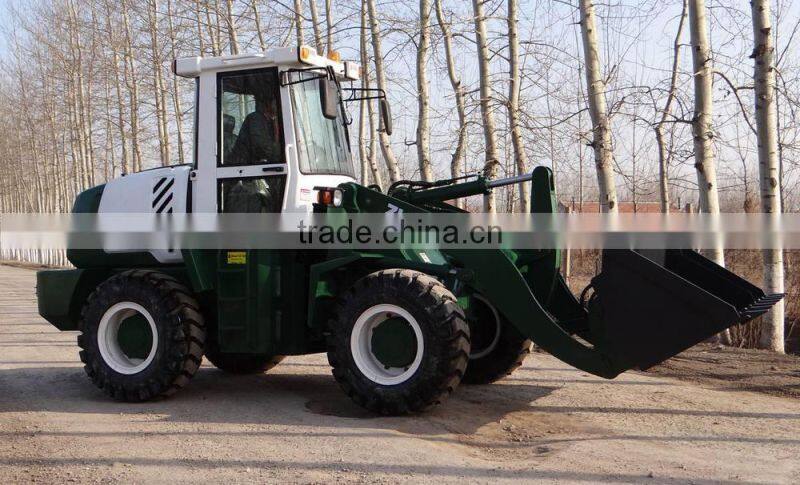

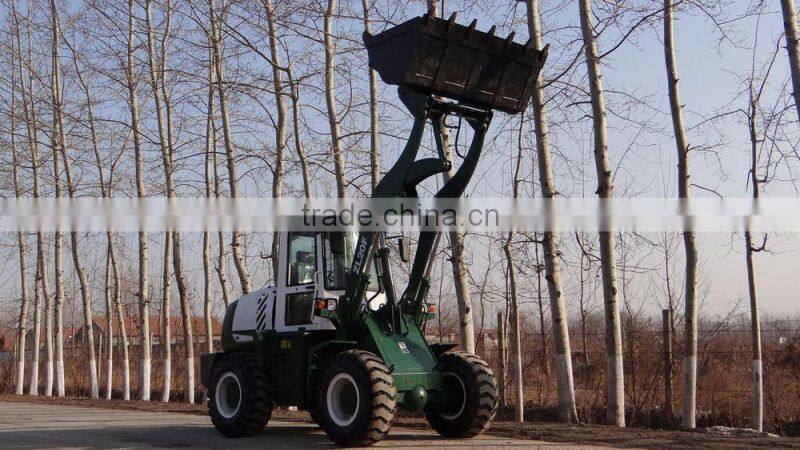

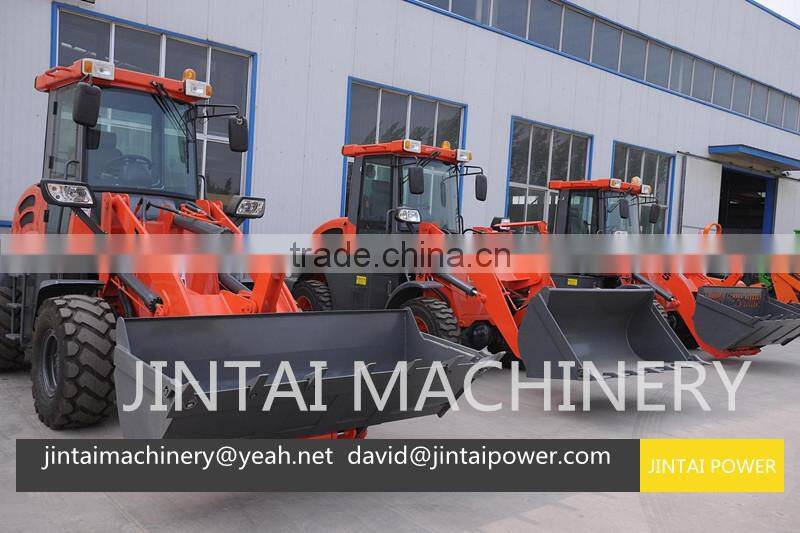

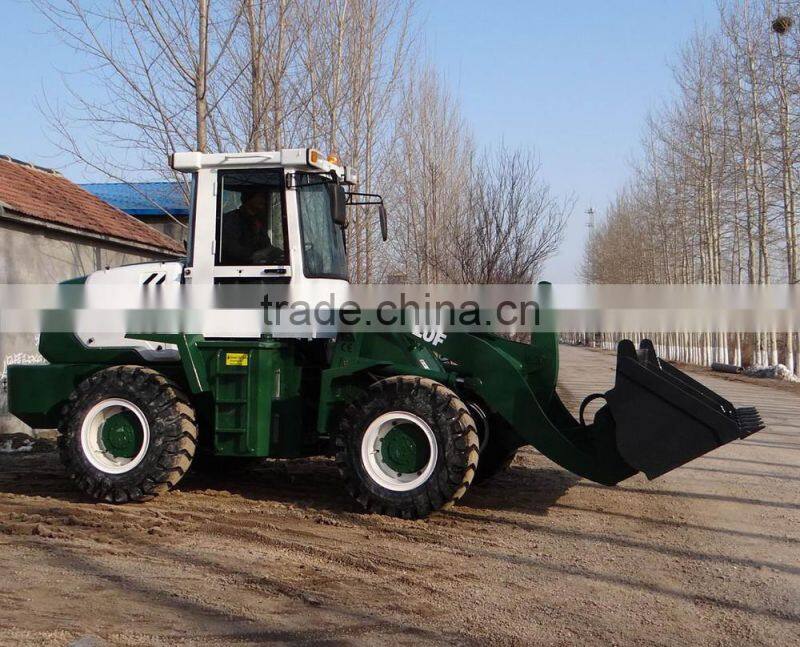

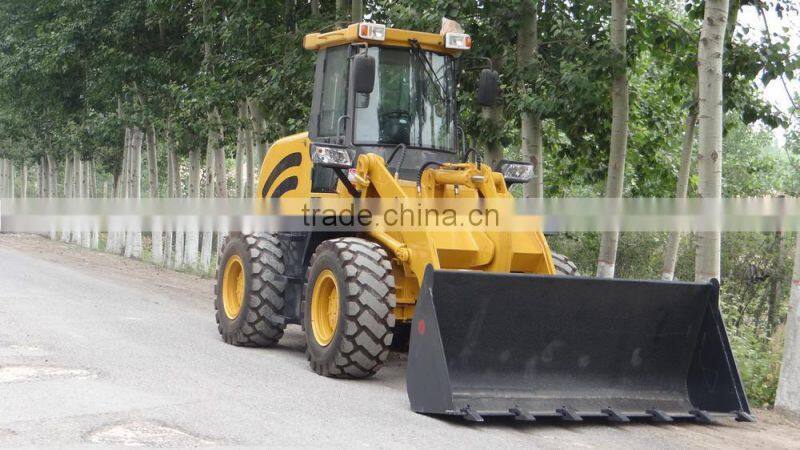

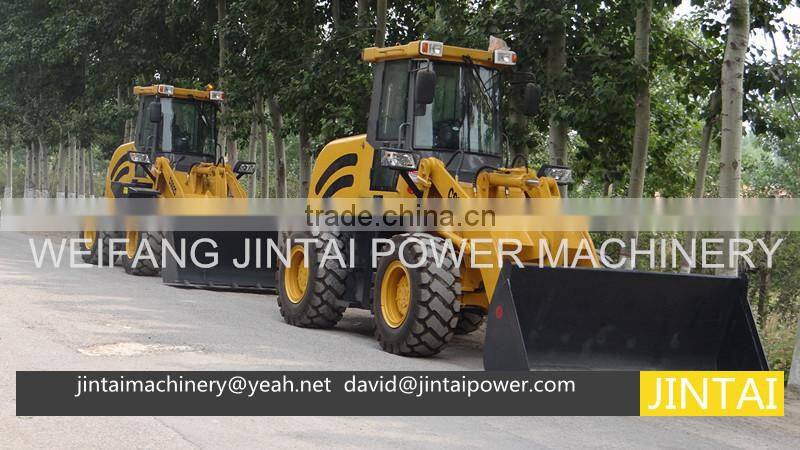

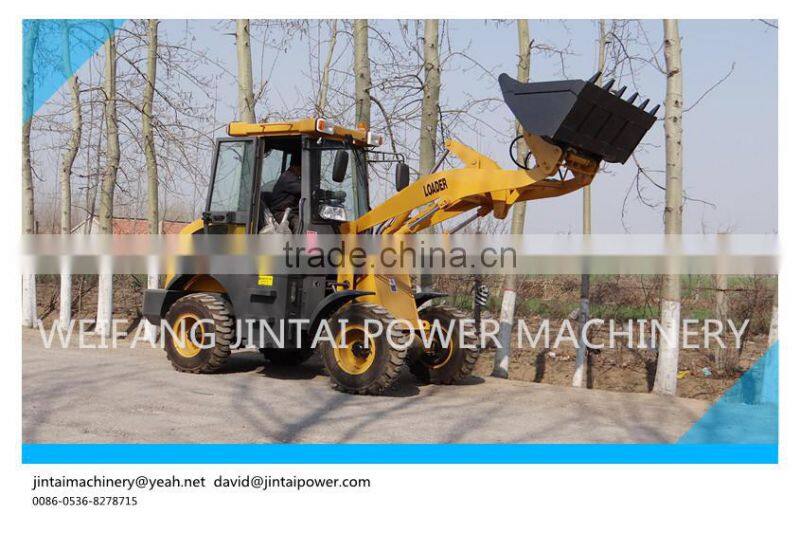

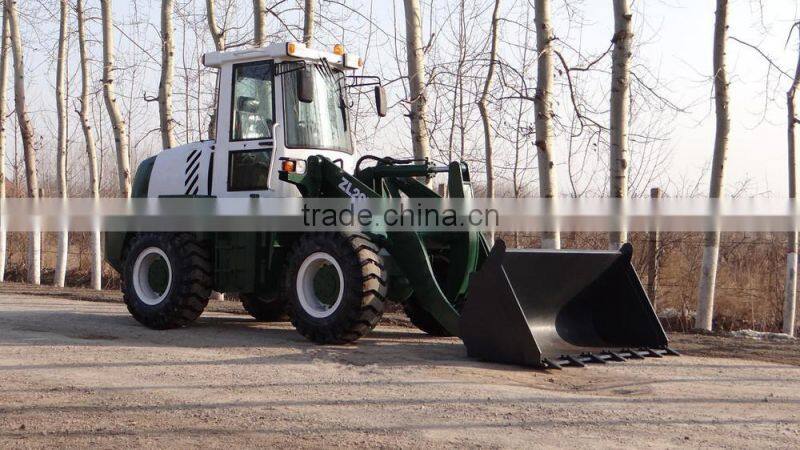

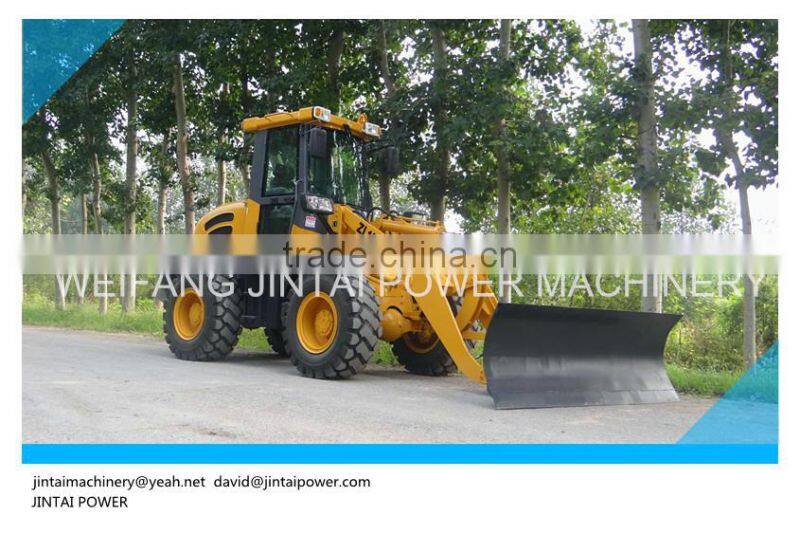

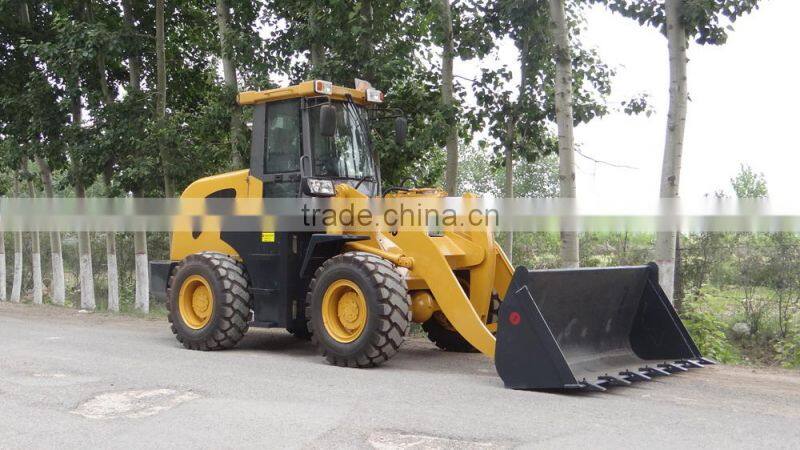

China Factory Supply 2 TON JT920 Wheel Loader With CE, 1.0-1.2m3 Bucket Capacity
- QINGDAO CHINA
You May Like
-
Mini 1.6 TON ZL16F With CE Certifications Wheel Loader for More Than 15 Years
-
Wheel Loader JT915 With CE Certification 1.5 Ton With Fork From China
-
2015 High Performance Chinese 1.2 Ton Wheel Loader, ZL12F, JT912
-
China Factory Supply Mini Wheel Loader JT915/ZL15F With CE Certification
-
HOT Sale 3 Ton Wheel Loader With CE, With Fork, Hydraulic Heavy Construction Machine
-
New Heavy Equipment Construction Machinery Wheel Loader 1.5ton 0.7CBM
Product Details
| Condition | New | Brand Name | JINTAI | |
| Model Number | JT920 | Place of Origin | Shandong, China | |
| Type | Mini Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 5950x2200x2850 | Rated Load | 2000 | |
| Certification | ce | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specification:
Specification | overall weight(kg) | 5600 |
L×W×H(mm) | 5950×2200×2850 | |
rated bucket capacity(m3) | 1.1(1.4 big bucket) | |
Rated load(kg) | 2000 | |
Maximum dump height (mm) | 2850/3200 | |
Dump distance | 1084 | |
Max. breakout force(KN) | 70 | |
Engine | Model | Weichai4108 |
Optional | C u m m i n s 4BT3.9-C100 | |
Type | In-line arrangement, Water cooling, four-stroke | |
Rated power(kw) | 60kw/75kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ280 |
Type | 3-element single stage | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Working pump | CBF25 |
System working pressure | 16MPA | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35±1° | |
Min turning radius(mm) | 4500 | |
Brake system | Brake type | Air assisted oil disc on four wheel |
Tire | Standard tire | 16/70-20 |
1. standard 2 ton wheel loader
2. L x W x H: 5950x2200x2850mm
* CE approved wheel loader standard ZL20 model
* Best and beautiful european design, best configuration

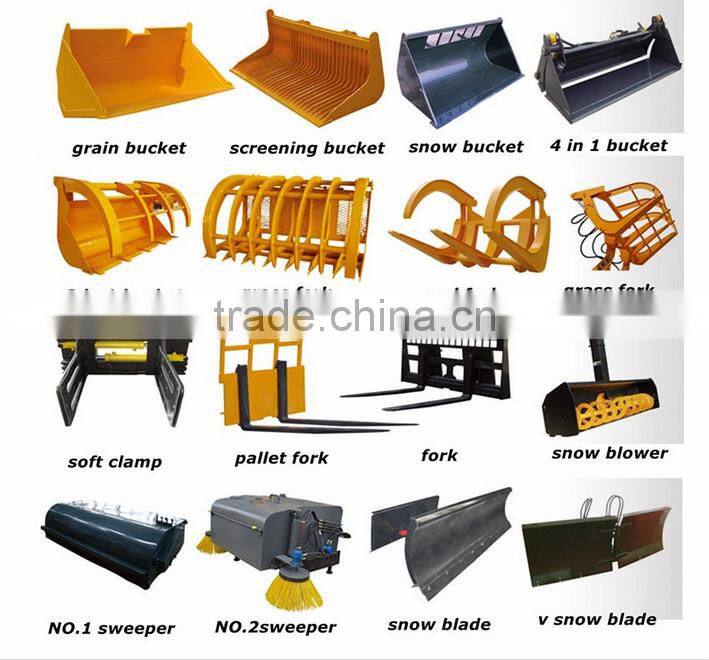

* Joystick & pilot control, quick hitch device, various optional attachments
* A/C, heater cab, comfortable operation environment
* New preheater on engine, suitable for cold weather
* Hot sale model
1. Streamlined ordinary and European appearance design, elegant and generous.
2. Bucket can be set level automatically, computer is adopted to optimize design, single tipping bucket cylinder, “Z” type turning bucket structure, to realize the enormous shovel digging forces.
3. Gearbox and torque converter has integral structure, realize performance.
4. The dynamical system selects the engine of WEICHAI model and Cummins model and EPA approve model, reliable performance, high efficiency and economizing on fuel.
5. Complete hydraulic changing direction system, reliable performance.
