Home > Products > Tractor > 120hp 4WD farm tractors, JT1204 with good quality , hot sale in 2014

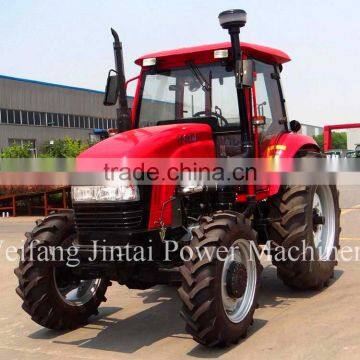

120hp 4WD farm tractors, JT1204 with good quality , hot sale in 2014

FOB Price

US$ 1 - 2 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	20hp
Certificate	CE	Brand Name	JINTAI
Model Number	JT1204	Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas

he Main Specification of 110hp to 130hp tractor
Tractor Model		1104	1204	1254	1304
General Specification	Driver Type	4×4	4×4	4×4	4×4
	Length×width×Height(mm)	5015×2335×2970	5015×2335×2970	5015×2335×2970	5015×2335×2970
	Traction force(KN)	26	27	29	32
	Steering	hydraulic	hydraulic	hydraulic	hydraulic
	Wheel base(mm)	2688.5	2688.5	2688.5	2688.5
	Front wheel tread(mm)	1672-2003(1760)	1672-2003(1760)	1822-2153(1910)	1822-2153(1910)
	Rear wheel tread(mm)	1662-2262(1862)	1662-2262(1862)	1662-2262(1862)	1662-2262(1862)
	P.T.O.Max.Power(Kw)	71.25	71.25	81.7	81.7
	Ground clearance(mm)	465	465	465	465
Engine	Type	YTO 110HP	YTO 110HP	YTO 110HP	YTO 110HP
	Bore×Stroke(mm)	108×125	108×125	110×135	110×135
	Rated revolution (r/min)	2300	2300	2300	2300
	Max.torque(n.m)	≥282	≥340	≥350	≥370
	Speed of Max.torque r.p.m.	1700-1800	1700-1800	1600-1800	1600-1800
Transmission	Clutch	Dual-stage clutch
Transmission	Gear box	12F+4R
Working device	Lifter tilling depth control	Height adjustable, floating control
	Max.lifting capacity( KN )	≥28
	Suspension type	Class 2 3-Point hitch
	Speed of P.T.O.(r/min)	stardard:760/1000;optional:540/760,540/1000
Notice:All above parameters are subject to change without notice because of rapid development of products

Photos

Why choose us?

1. More than 500 workers.

2. With the occupying area of 2500 square meters.

3. More than 10 years experiences in the industry of construction machine and agricutural machine.

4. Competitive price and high quality.

5. One hour reaches Qingdao port.

6. All the inquiries will be replied within 12 hours
