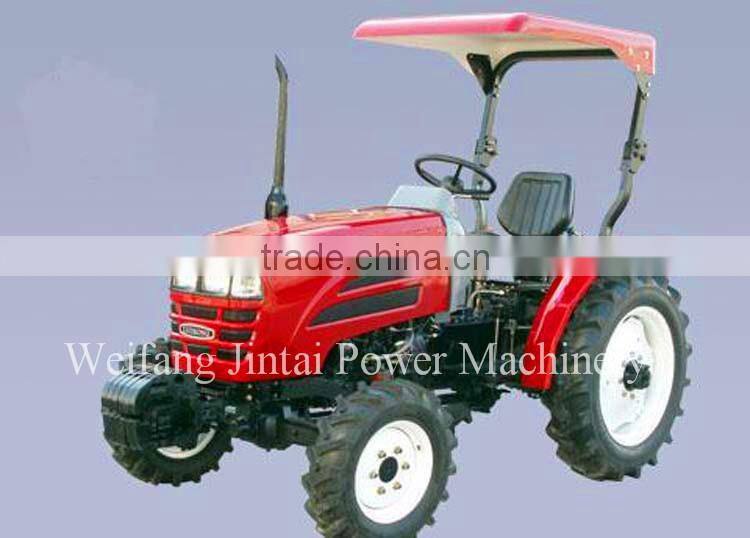

Farm Tractor 304 ,one Cyinder Engine ,with 4wd,belt Transmission

         Type

TY304

       Type

4×4     Wheeled  Type

 Over  all  dimension

 Length

2988/3074

 Width

1340/1222/1296/1560

 Height

1080

Tread

 Front Wheel

910/1000 /1200Fixed

 Rear Wheel

 1000/1200Adjusted

  Wheel Base

1520/1606

Min.Ground Clearance

223

(kg)Dry Mass

Six Shift :1000(small chassis ) or 1260

     Eight Shift:1290

Engine

 Model

JD2102T

Double cylinder ,Vertical, Water Cooled and 4-stroke

(kw)Rated Power

22.1

(r/min)Rated Rev.

2400

 Fuel

Diesel  Oil

Tire

Front Wheel

5.0-12

 Rear Wheel

7.5-16

Clutch

  Dry-friction,single stage or Dry-friction,Two Stage

                                                           Steering

 Mechanical Type/Mechanical Type or Hydraulic Type

      Transmission Box

(3+1)×2or(4+1)×2or(4+1)×2×2(with  creeping Shift)

    Suspension Type

    Post Positioned Tri-point suspension Cat a or1

 PTO shaft

(r/min)                       Type and Rev

 Non-independent Type 540/720 or Semi-independent Type 540/1000,540/720

                       Spline Size

135Rectangle Spline With 6 teeth  (6×28.91×34.79×8.69)
