Everun Er20 Articulated Small Wheel Loader With Snow Blade

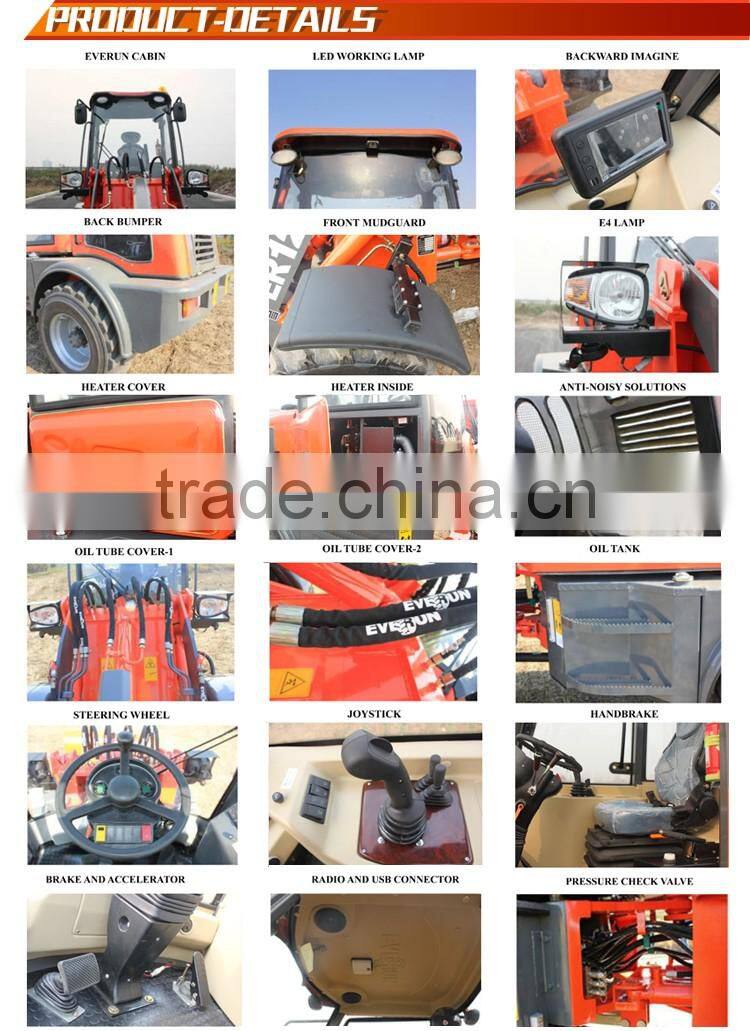

Standard Equipments:

Standard Bucket, Luxury Cabin, CE Approved Engine, E-Mark Seat, Adjustable Steering Wheel, 130W Heater, 220 V Engine Heater, Lock for Lifting and Steering Cylinder, Backward Imagine, Tipping Cabin, Mechanical Joystick, Disc-Brake, Hydraulic-pressure Check System, Blinking Lamp without Key, and Easy-damaged Spare Parts.

Optional Equipments:

Electric Joystick, Floating Function, E4 Lamp, Extra Hydraulic Line, Quick Hitch, LED Light, Varta Anti-free Battery, Tyre Chain

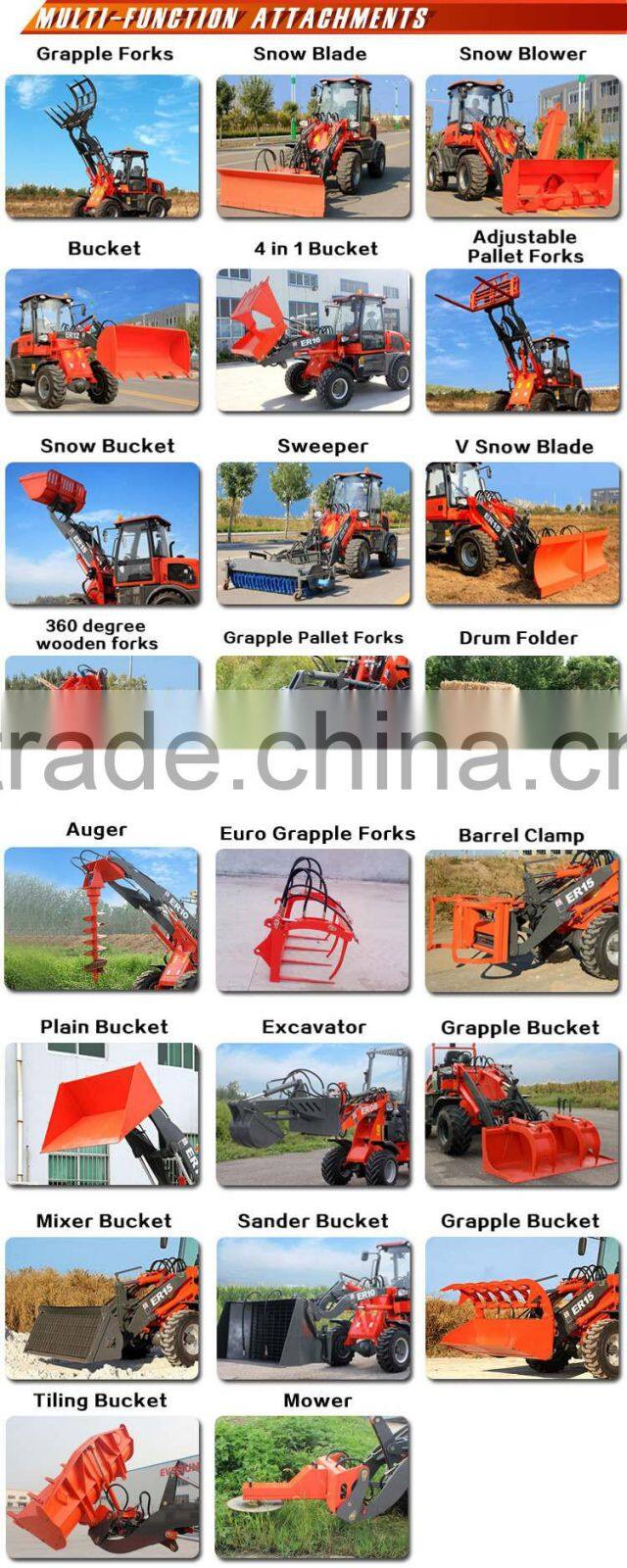

Attachments:

Pallet Forks,Grass Forks,Grapple bucket,Europe Grapple forks,Wooden Forks,Adjustable Pallet Forks,Snow Bucket,Snow Blade,Hydraulic Snow Blade,Snow Blower,4 In 1 Bucket,Drum Folder,Barrel Clamp,Mixer Bucket,Sweeper,Sender Spreader,Grapple Forklift,Mimi Digger,Auger,Snow Bucket with Wings,Plain Bucket.

Model

ER20

Rated Loading Weight

2000kg

The Minimal Circle Diameter

310mm

Rated Bucket Capacity

1.00CBM

Track Base

1500mm

Wheel Base

2350mm

Min.Swerve Diameter

4600mm

Min.Ground Clearance

350mm

Dump Height Fully Raised

2800-3100mm

Reach Fully Raised

1050mm

Lifting Time

≤5.0s

Driving Mode

Four-wheel full hydraulic drive

Transmission Gear Box Form

2 gear hydraulic variable speed changes

Operating Weight

5600kg

Dimension(L×W×H)

5800×2000×2750mm

Engine Model

XiChai 4DX21-72 Engine

Rated Power

55KW

Rated Speeds

2400rpm

Max.Tilt Angle

0.3

Max.Bucket Breakout Force, Lift Cylinder

60KN

Maximum Speed

25km/h

Tyre Specification

16/70-20

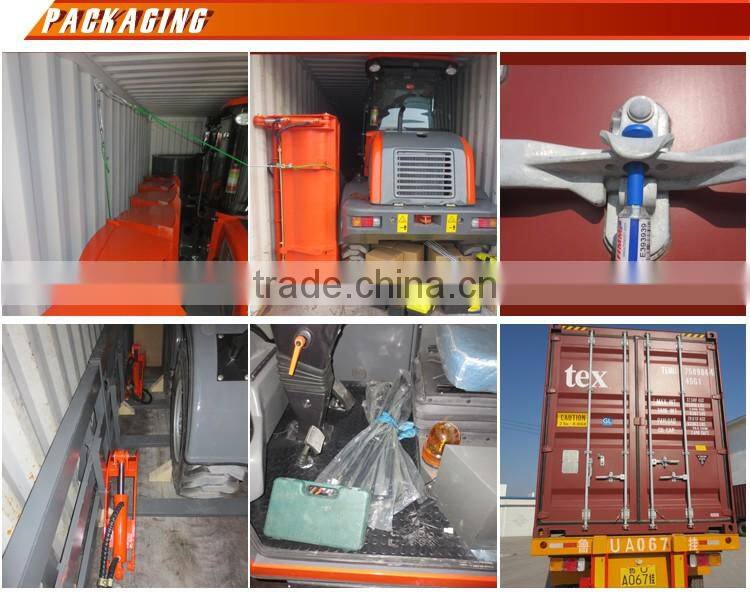

Package:1 unit in 20GP,2 units in 40HQ.

Delivery time:20days after 20%-30% down payment

Warranty:1 year,supply spareparts from German warehouse
