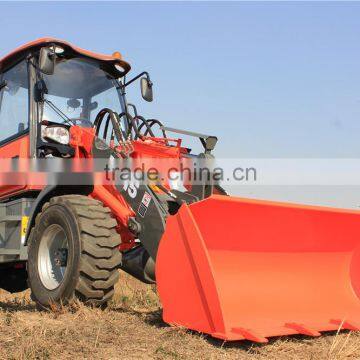

Everun CE Approved Agricultural Mini Loader ER15 Hoflader for Sale

Standard Equipments:

Standard Bucket, Luxury Cabin, Euroiii Engine, E-Mark Seat, Adjustable Steering Wheel,130W Heater, 220 V Engine Heater, Lock for Lifting and Steering Cylinder, Backward Imagine, Tipping Cabin, Hydraulic Joystick, Disc-Brake, Quick Hitch, 12-16.5 Tyre Hydraulic-pressure Check System, Blinking Lamp without Key, and Easy-damaged Spare Parts.

Optional Equipments:

Electric Joystick, Floating Function, E4 Lamp, Extra Hydraulic Line, LED Light, Varta Anti-free Battery, 14-17.5 Tyre, 31.5×15-15 Tyre, Tyre Chain

Attachments:

Pallet Forks, Grass Forks, Grapple bucket, Europe Grapple forks, Wooden Forks, Adjustable Pallet Forks, Snow Bucket, Snow Blade, Hydraulic Snow Blade, Snow Blower,4 In 1 Bucket, Drum Folder, Barrel Clamp, Mixer Bucket, Sweeper, Sender Spreader, Grapple Forklift, Mimi Digger, Auger, Snow Bucket with Wings, Plain Bucket.

1.0 Engine Details

(1) Model: Xinchai 498BT ( Euroiii and EPA Approved)

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 37KW

(4) Rated Speed: 2400 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g /kw. H

2.0 Transmission System

(1) Type: Fixed-spindle Power shift

(2) Shift gear control oil pressure: 1.2~1.5MPa

(3) Rated input speed: 2500 (rpm)

3.0 Bucket

(1) Bucket Capacity: 0.75 m3

(2) Bucket width: 1800mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Rated Load: 1500kg

(5) Operating Weight: 4000kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 5300mm

(2) Overall Height

(3) Ground to Cab Top: 2750mm

(4) Dumping Height: 2700mm

(5) Min. Base to the Ground: 260mm

(6) Overall Width: 1800mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4500mm

(3) Driving System: Hydraulic converter

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tyre: 12-1600/12-16.5/14-17.5/31-15.5-15 Agriculture Tyres

8.0 Package:1 unit in 20GP,3 units in 40HQ.

9.0Delivery time:20days after 20%-30% down payment

10.0 Warranty:1 year
