Home > Products > Diesel Generator Set > 5KVA AIR COOLED PORTABLE DIESEL GENERATOR

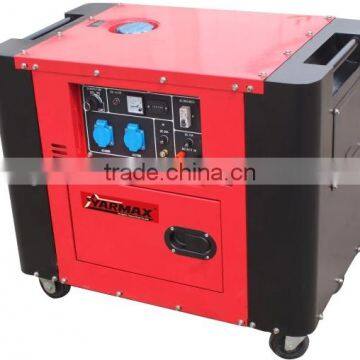

5KVA AIR COOLED PORTABLE DIESEL GENERATOR
- 10000 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YARMAX | |
| Model Number | YM7000T | Output Type | AC Single Phase | |
| Speed | 3000/3600rpm | Frequency | 50/60HZ | |
| Rated Power | 5KW | Rated Voltage | 220V | |
| Rated Current | 25A |
Product Description
| * Specifications | |||||
| Model | YM4000T | YM7000T | YM8000T | YM9000T | YM10000T |
| Rated frequency | 50 60 | ||||
| Rated output(kVA) | 2.8 3.0 | 4.5 5.0 | 4.8 5.0 | 5.2 5.5 | 5.5 5.8 |
| Max. output(kVA) | 3.0 3.2 | 5.0 5.5 | 5.0 5.2 | 5.5 5.8 | 5.8 6.2 |
| Rated Voltage(V) | 230 or as requested | ||||
| Rated current (A) | 24.3/12.2 | 19.6 | 21.7 | 23.9 | 26 |
| Rated rotation speed(r/min) | 3000 3600 | ||||
| Phase NO. | Single phase | ||||
| Power factor(Cos Φ) | 1 | ||||
| Insulation Grade | B | ||||
| Pole number | 2 | ||||
| Excitation mode | Self-excitation & constant voltage (AVR) | ||||
| Panel Type | General Panel | ||||
| Voltage(V) | 230 or as requested | ||||
| Receptacle | Two receptacles | ||||
| Connection pole | Without | ||||
| DC12V output | Connection pole output | ||||
| Overall dimension(L×W×H)mm | 930×530×740 | 930×530×740 | 930×530×740 | 930×530×740 | 930×530×740 |
| Dry weight(kg) | 164 | 170 | 171 | 171 | 172 |
| Working assorting weight | 179 | 185 | 186 | 186 | 187 |
| Noise level(7m)dB(A) | 72 | ||||
| Structure type | Silent type | ||||
| Engine Model | YM178FAG | YM186FAG | YM188FBG | YM190FG | YM192FG |
| Engine Type | Single cylinder, vertical, four-stroke, direct injection | ||||
| Cylinder NO.-bore×stroke(mm) | 1-78×62 | 1-86×72 | 88×74 | 1-90×74 | 1-92×75 |
| Displacement(ml) | 296 | 418 | 0.497 | 542 | 548 |
| Rated power[KW/(r/min)] | 3.68/3000 | 5.7/3000 | 7.3/3000 | 7.5/3000 | 8.0/3000 |
| Compression ratio | 20:01 | 19:01 | 19:01 | 19:01 | 19:01 |
| Rated rotation speed(r/min) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Cooling system | Air cooled | ||||
| Combustion system | Direct injection | ||||
| Starting system | Electric starter | ||||
| Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel | ||||
| Lube oil brand | CD grade or SAE10W-30,15W-40 | ||||
| Lube capacity(L) | 1.1 | 1.65 | |||
| Starting motor capacity( V-kW) | 12V 0.8kW | ||||
| Charging generator capacity ( V-A) | 12V 3A | ||||
| Battery capacity(v-Ah) | 12V 30-36Ah | ||||
| Fuel consumption(g/kw.h) | ≤360 | ||||
| Fuel tank capacity(L) | 15 | ||||
| Continuous running time(hr) | 8 | 6 | |||
* Easy and quick start
* No smoke
* Less vibration and full capacity
* New AVR(Automatic Voltage Regulation),Stablizes the output power
* Low oil level alarming system will automatically stop the generator when lube oil is less than the set value
Features
Strong Power
All generator sets are equipped with YARMAX four-stroke engines.
Low Noise Running
High effective combustion system ensures complete combustion, Besides, a large silencer dampens exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.
Low Oil Alarm System
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be restarted only if the oil is refilled.
Application of New AVR
The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protection against the overload of the whole set, thus avoid damage to the set.
Advanced Alternator Winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design protects the generator from short circuits and provides a stable output while running inductive loads.
The best quality
The most competitive price
Long term spare parts supply
One and half year or 1500 hours which comes first
