Mini Peanut Shell Grinding Machine,shell Mill Powder Machine

Wooden case

 Small model peanut shell crusher with capacity 100kg per hour

1:Claw crusher is a kind of small, multi-purpose, new mill, grinding various food, spices, spices and raw materials, suitable for the majority of urban and rural units and household food processing, feed processing, materials processing, seasoning products processing and other professional processing, the machine machine has a tooth claw hammer and two. For users to choose. According to the needs of the sieve assembled with different specifications, different thickness of the material can be processed.

Claw crusher is suitable for crushing grain legumes. Corn and wheat granule materials, can also be used for crushing cut sweet potatoes. Potato and other lumps and dried potato rod crude fiber and other crops for crushing with machine is expected to use the contrary. Shall strictly comply with the requirements of the manufacturing plant, use, maintenance and repair conditions, as well as the basic requirements for the intended use.

2:Claw crusher structure characteristics

The main working parts of the jaw crusher are the flat tooth which is installed on the rotor. The tooth claw type crusher is a kind of machine which uses the high speed rotary tooth claw to break the feed. It has the advantages of small volume, light weight, fine granularity, high working speed, easy to install and operate, and so on. Commonly used are 9FJ-280 type, 9FJ type 300 and 9FJ-350 type, etc., are widely used in the economic type of crushing equipment. Jaw crusher is mainly on the body. The machine cover. The rotor assembly. Sieve. Feeding device. A frame is composed of 6 parts, body and rotor assembly together form the crushing chamber, the rotor assembly is the main component, material is crushed in the crushing chamber to complete.

3:Claw crusher basic structure and working principle

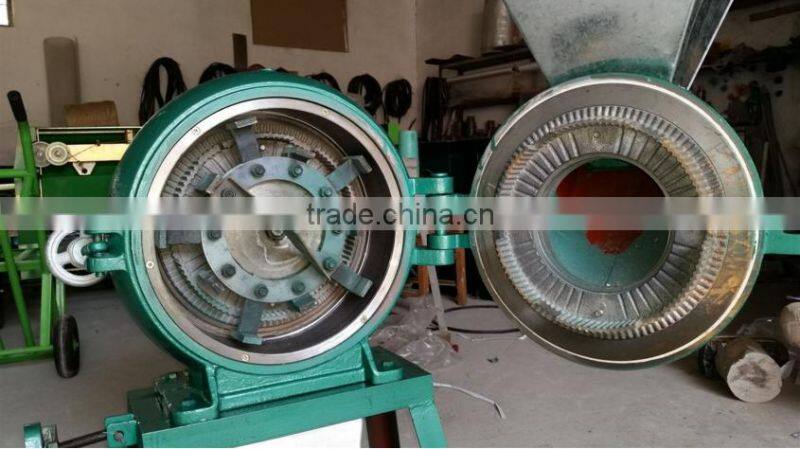

Claw crusher is mainlya mde from the hopper, casing, rotor, gear wheel, sieve frame, motor and other components. When the material is fed into the crushing chamber, in the grinding hammer, grinding teeth continue to strike and rub impact, quickly broken into fine powder and slurry. The centrifugal force and airflow, through the sieve through the discharge port outside.

4:Claw crusher installation and commissioning

       a: Crusher can be fixed on the basis of cement, or steel, hard wood to do on the rack, the length of the triangle can be based on their own fixed frame distance.

       b:When the tractor is used as the driving force, the machine frame is additionally arranged, and the belt pulley of the diesel engine is in charge of the matching of the diesel engine.

       c:Regardless of the usage of any power, it is necessary to pay attention to the speed of the mill, with the replacement of the pulley to meet the requirements of the mill 4200-4600R/M.

       d:Before the test of the machine, check the belt is suitable, speed is reasonable, whether there is oil lubrication, each part of the screw is loose, such as bad phenomenon must be eliminated before starting, idling 2-3 minutes, everything is normal, can feed work.

5:Claw crusher technical parameter

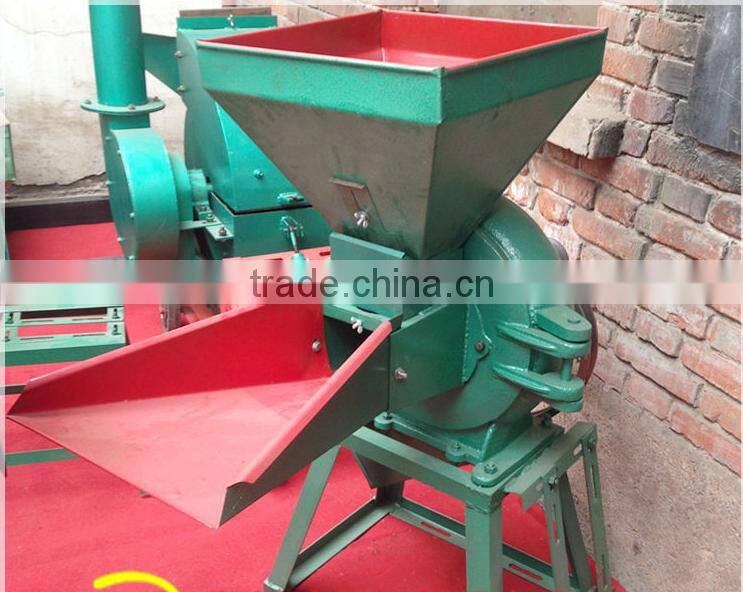

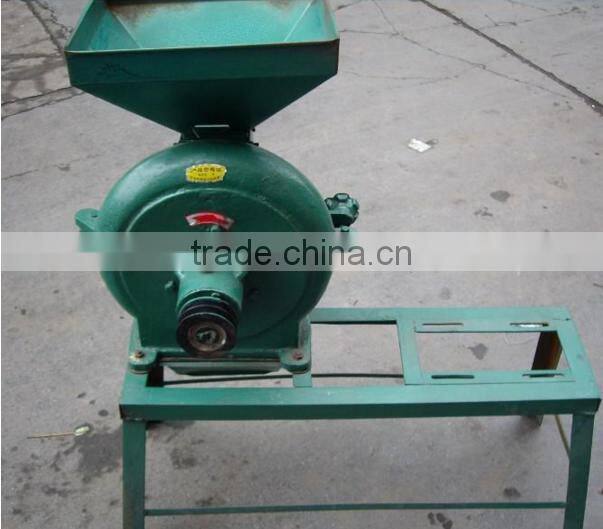

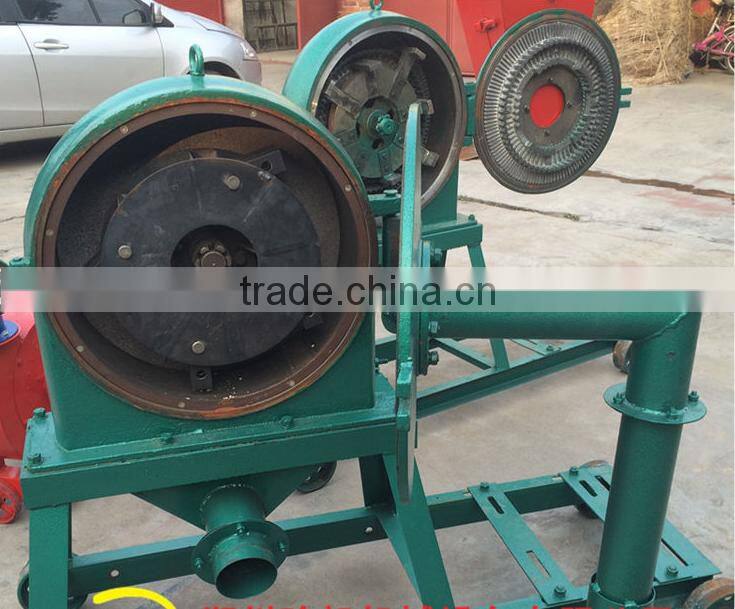

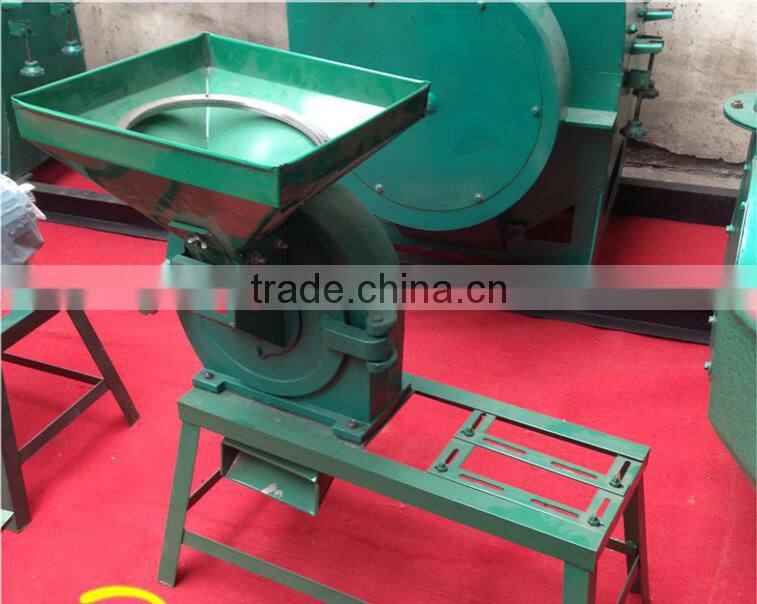

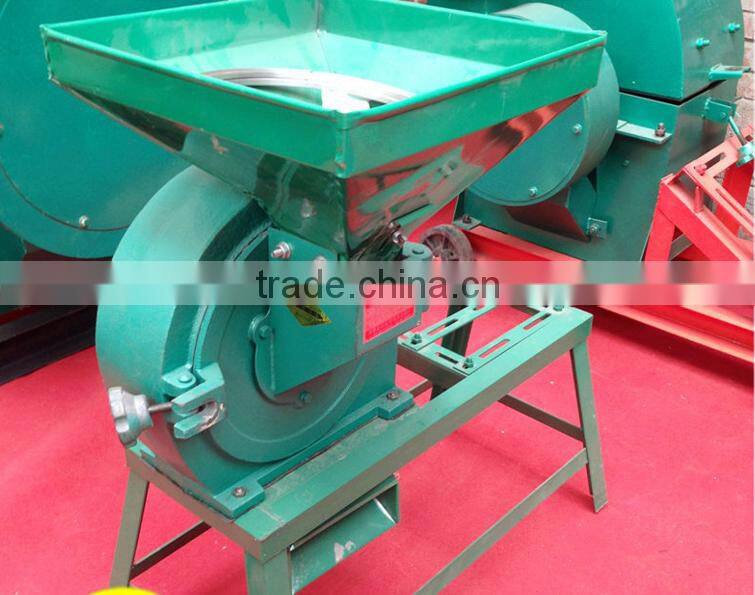

Machine's pictures:
