Product Details
Condition | New | Application | Quarry ,ore ,mining,and so on | |
Power Type | Electric | Capacity(t/h) | 10-20t/h | |
Place of Origin | Henan, China | Brand Name | huahong | |
Model Number | 6010 | Power(W) | 1.1kw | |
Dimension(L*W*H) | Standard Size | Weight | 500kg | |
Certification | CE ISO | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
packing in wood ,standared export container
Product Description
vibrating feeder Can be massive, granular material from the storage silo in the uniform, timed, continuously to the receiving device to go in the gravel production line for crushing machinery for continuous and uniform feeding, and coarse screening of materials, In the production process, the vibrating feeder is used to feed the massive, granular and powdered materials uniformly or quantitatively from the storage silo or hopper to the receiving equipment. Can be adjusted infinitely to the amount of material, and to achieve centralized control of the production process and automatic control. It can be fed to belt conveyors, bucket elevators, screening equipment, etc. To the crusher, crusher and other feed, as well as for automatic ingredients, quantitative packaging, and automatic control of the process can be used to achieve the automation of production processes.
performance characteristics of mini vibrating feeder
1.The machine has stable vibration, reliable operation and long service life.
2.It can adjust the excitation force and change and control its current at any time.
3.The adjustment is convenient and stable. Vibration feeding machine uses inertial exciter to produce driving force with low noise,
4.low power consumption, good regulation without stamping.
5.It is simple, reliable, and easy to install and maintain.
Mining Vibrating Feeder Working Principle:
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.

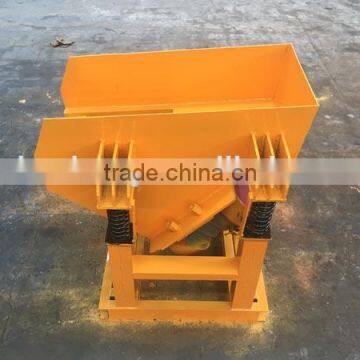

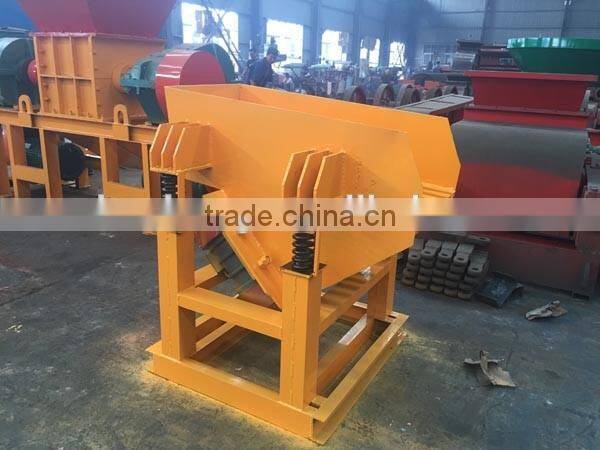

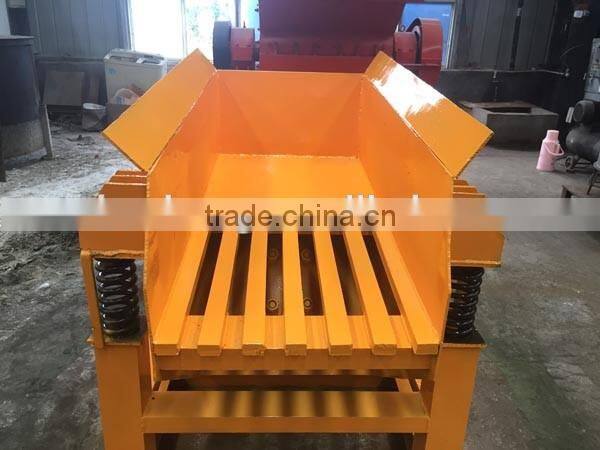

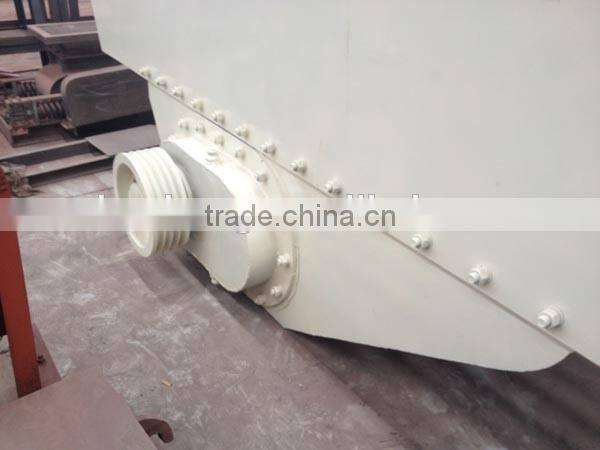

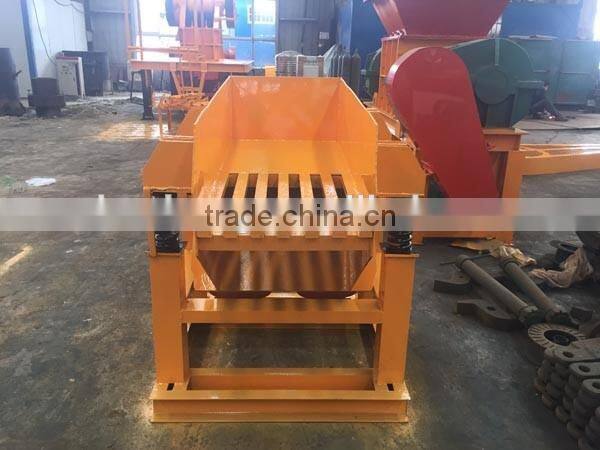

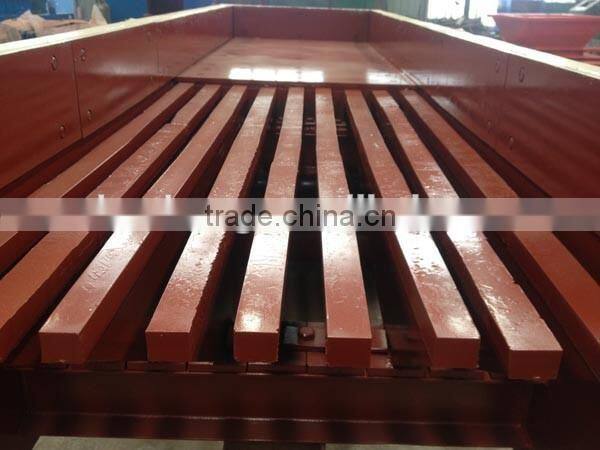

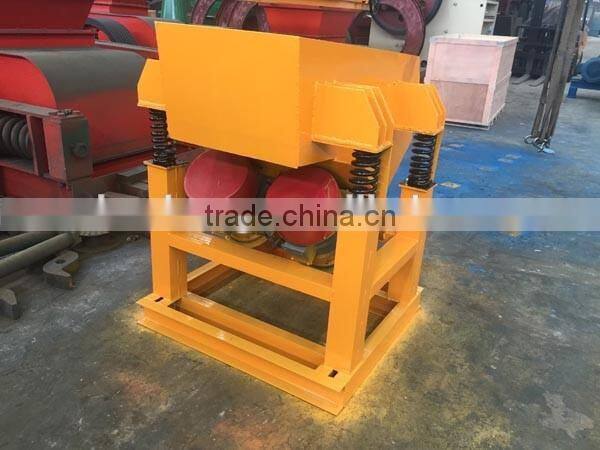

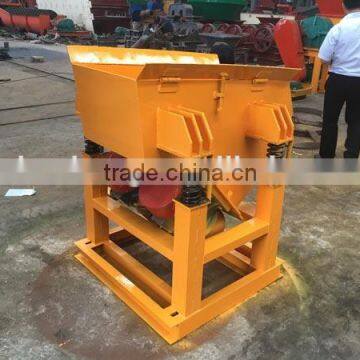

we are the manufacturer of vibrating feeder ,there are the custom-made vibrating feeder picture
GZD vibrator feeder technical parameter
Model | Max. feed size (mm) | shot-size (mm) | Capacity (t/h) | Power (kw) | Dimension (mm) | Weight (kg) |
GZD850×3000 | 400 | 850x3000 | 80-120 | 7.5 | 3100×1750×1640 | 3360 |
GZD960×3800 | 500 | 960x3800 | 120-210 | 11-15 | 3850×1905×1630 | 3800 |
GZD1100×4200 | 580 | 1100x4200 | 200-430 | 11-15 | 4400×2050×1660 | 4170 |
GZD1100×4900 | 580 | 1100x4900 | 280-500 | 15-18.5 | 5200×2050×1700 | 4520 |
GZD1300×4900 | 650 | 1300x4900 | 450-600 | 18.5-22 | 5200×2350×1750 | 5200 |
we are really manufacture ,we can make the machine according machine ,if you have any question ,please contact to me ,we offer the best machine for you with the low price ,welcome to our factory
After-sale:
1.Provide engineer to wok site guiding install.
2.Test equipment after installation, training operators.
Maketplace ;
America,Russia,Australia,Mail,Ghana,Egypt,Turkey,Indon,Indoneisa,Thailand,South Aferica,....and so on,more than 30 Country
Q:Payment of machine
Q: What about Warranty? what will we do if the machine is broken down
A: The warranty period for all of Huahong ’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
A: Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )
Name ;Jessica
we chat ;+8613949058207
QQ;2623204968
whatsapp;+8613949058207
phone number ;+8613949058207
skype ;jessicakoukou1
we are the manufaturer ,welcome to our factory ,I always being on serve you.
Company Profile

Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons. Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment. Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others. Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others. Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others. Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others. We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment. We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques. Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
