Small Mobile Mini Jaw Crusher for Sale
- Qingdao Shanghai Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Small Scale Stone Crusher,mobile Jaw Crusher Factory
-
Small Scale Stone Crusher
-
Small Scale Stone Crusher ,jaw Crusher Price Factory
-
Cast Type Diesel Engine PE400*600 Jaw Crusher Sent to USA Alaska
-
Waste Plastic 2 Shaft Shredder, Small Metal Shredder Machine Price
-
Good Quality Double Roller Crusher, Factory Price Two Roller Crusher for Coal
Product Details
| Condition | New | Type | Other, mobile crushing plant | |
| Application | stone crush | Motor Type | AC Motor | |
| Power(W) | with diesel engine | Capacity(t/h) | 30-50 | |
| Place of Origin | Henan, China | Brand Name | HuaHong | |
| Model Number | PE350*750 | Dimension(L*W*H) | 6.8m*2m*3m | |
| Weight | 8t | Certification | ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
nude packs or in bulk or others
Product Description
Stone mobile crusher,mobile jaw crushing plant,wheel type jaw crusher

The mobile crushing plant is not limited by the crushing place, and reduces high material transportation cost. It can crush materials on site or working nearly. It is widely used in the industry of mining, metallurgy, building materials, traffic, water conservancy and so on.

1.Move easily. It can go to the crushing place directly. It can move not only on the smooth road, but also on the bumpy road.
2.Compact structure and simple operation. Integrative equipment group with trailer save the working area. With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.
3.Save the cost. By crushing the materials on site, the transportation cost is reduced.
4.Wide applicability. The crushing plant can work as independent unit or work with other units to form a primary-secondary crushing system or primary-secondary-fine crushing system. It can also work as a production line with the screening equipment according to the requirement of customers (firstly screening then crushing, or firstly crushing then screening.)
5.Stable performance and convenient maintenance. Equipped with crushers, vibrating feeders, and vibrating screens designed by Great Wall Heavy Industry Machinery, the mobile crushing plant shows high quality and reliable performance. Materials are delivered by belt conveyors, which is simple to operate and easy to maintain. The machine is featured by low investment and high production efficiency.
6.Flexible configuration. It can be customized according to customers’ requirement on working site, materials and particle shape. Examples of customized machines include single units, combined units, units with self-discharged belt conveyors.
Jaw Crusher Specification:
Jaw crusher size | Tons/Hour | Feed Size | Discharge Size | Electric Hp | Weight(lbs) |
5’’*6’’ | 0.5-1.5 | 4’’ | 3/8’’-1.5 | 5 | 750 |
6’’*10’’ | 1-3 | 5.5’’ | 1/2’’-2’’ | 7.5 | 1,600 |
8’’*12’’ | 2-6 | 7’’ | 3/4-2.5’’ | 10 | 2,400 |
10’’*16’’ | 5-20 | 9’’ | 3/4-3.5’’ | 20 | 5,600 |
16*24’’ | 15-60 | 14’’ | 1’’-3.5’’ | 45 | 14,000 |
20*30’’ | 40-110 | 18’’ | 1’’-4’’ | 75 | 24,000 |
24*30’’ | 50-180 | 22’’ | 1’’-4’’ | 75 | 32,000 |
24*36’’ | 80-240 | 22’’ | 2’’-6’’ | 75 | 34,000 |
The main technical parameters:
| Model | Feed opening | Max feed size(mm) | Adjustable range (mm) | Capacity (t/h) | Eccentric shaft speed | Motor power (kw) | Total weight | Overall dimensions (L*W*H)(mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |

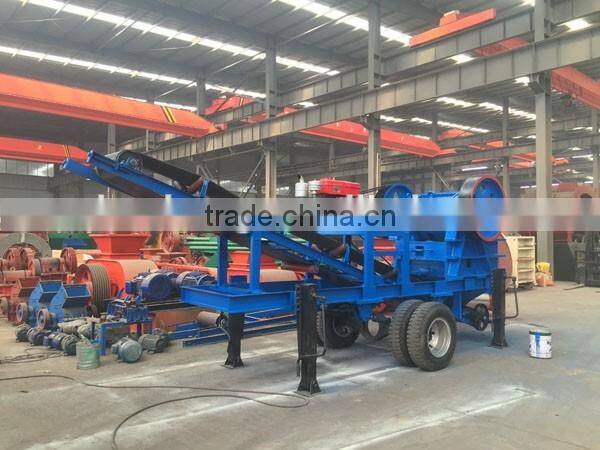

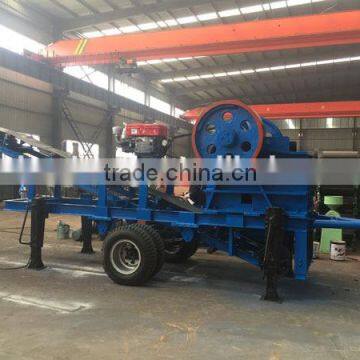

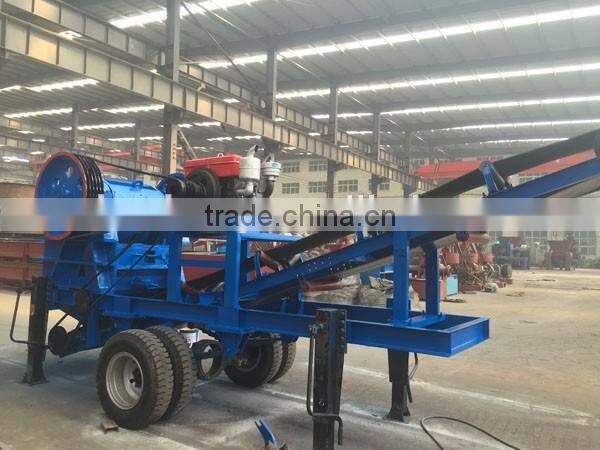

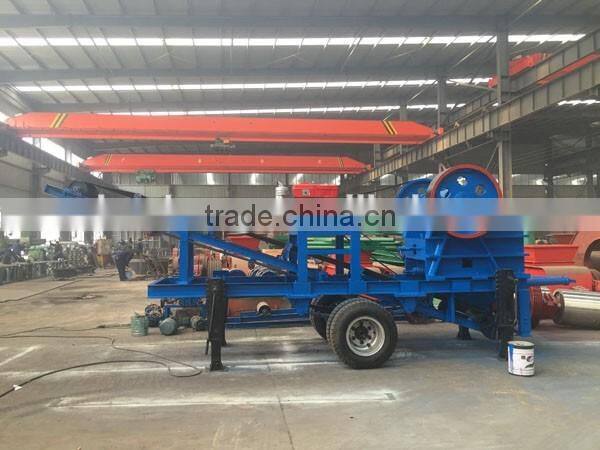

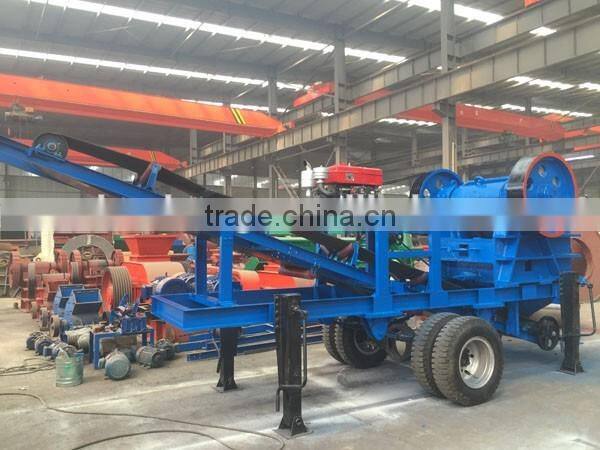

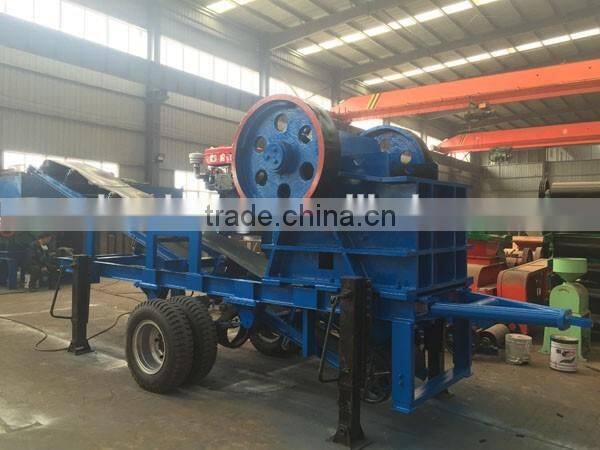

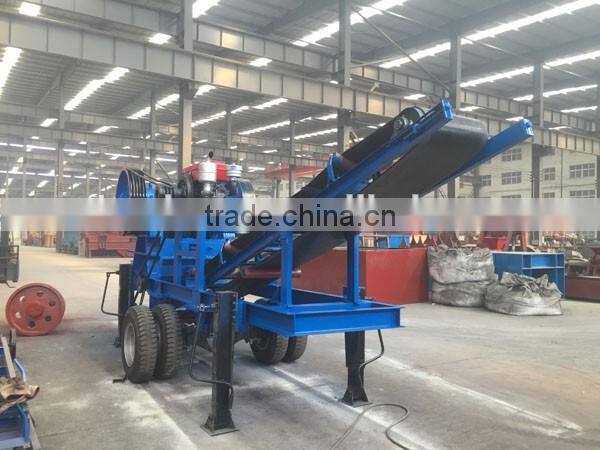

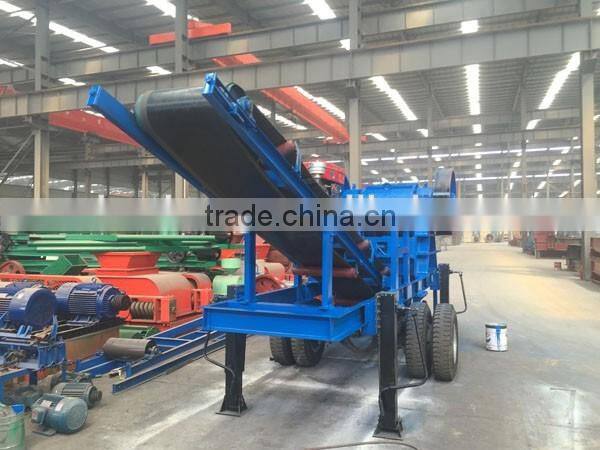

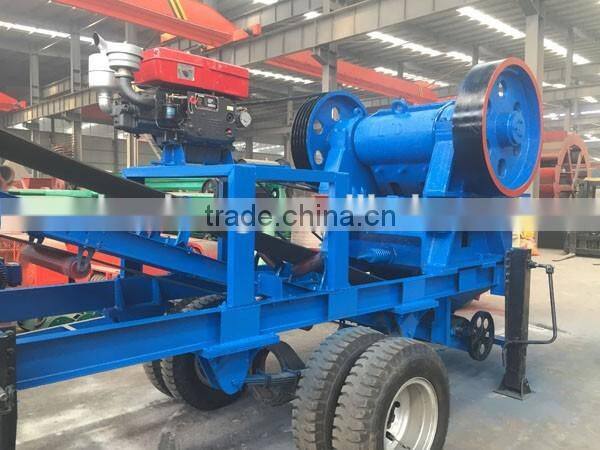

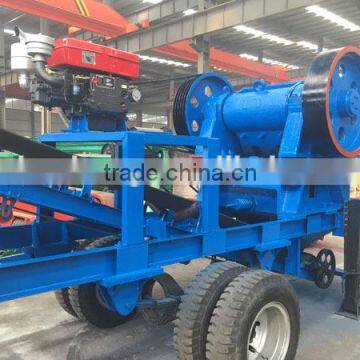

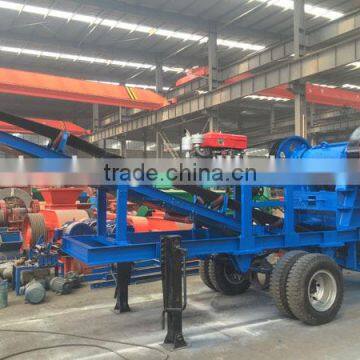

This is our mobile crushing plant:
Services:
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons. Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment. Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others. Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others. Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others. Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others. We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment. We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques. Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
