Road Construction Machinery 5ton Wheel Loader Prices(W156)
US$ 40,000 - 45,000
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
3m3 Bucket Capacity 5ton Wheel Loader for Sale
-
China Made Construction Machinery 5ton Wheel Loader for Sale
-
New Design ZL5O Gearbox 5ton Construction Machines Wheel Loader Prices
-
3 Ton Small Hydraulic Pump for Wheel Loader Price on Sale
-
3 Ton Small Hydraulic Pump for China Mini Wheel Loader
-
3 Ton Small Hydraulic Pump for Mini Small Wheel Loader
Product Details
| Condition | New | Brand Name | World | |
| Model Number | W156 | Place of Origin | Jiangsu, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 8075x2980x3500mm | Rated Load | 5000kg | |
| Certification | CE GOST-R ISO9001 | Warranty | 12 moths | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
wheel loader for sale
road construction machinery 5ton wheel loader prices(W156)
Main Features:
-Cummins engine, 160kw
-3m3 bucket
-5000kg rated load
-A/C cabin,Joystick control,Alarm
-CE marked
Specifications of road construction machinery 5ton wheel loader prices(W156)
| ITEMS | DESCRIPTION |
| Model: W156 | 5 ton wheel loader, with air conditioner |
| Basic Data | |
| Bucket Capacity | 3.0 or 3.6m³ |
| Rated Load | 5000kg |
| Travelling Speed | |
| Forward 1st | 0-11.5km/h |
| Forward 2nd | 0-37.5km/h |
| Reverse 1st: | 0-17km/h |
| Max. Traction | 165kN |
| Max. Break Out Force | 150kN |
| Min. Turning Radius (outside tires) | 6700mm |
| Max. Dumping Height | 3100mm |
| Max. Reach | 1200mm |
| Total Hydraulic Cycle Time | ≤11.1s |
| Full Bucket Lifting Time | 5.7s |
| Dimensions (LxWxH) | 8075x2980x3500mm |
| Min. Clearance Over Ground | 450mm |
| Operating Weight | 16200kg |
| Diesel Engine | |
| Model | CUMMINS 6CTA8.3 or C6121 or WEICHAI WD10G |
| Type | Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders |
| Rated Output | 162/162/160kW |
| Rated Speed | 2200rpm |
| Max. Torque | 860/860/908N.m |
| Transmission | |
| Model | ZL50 |
| Manufacturer | Hangzhou Advance Gearbox Group Co., Ltd |
| Rated Input Power | 154kW |
| Rated Input Speed | 2200rpm |
| Hydraulic Torque Converter Model | Single stage, two phase four components |
| Torque Ratio When Zero Speed | 4 |
| Transmission Type | two forward and one reverse gears/power shift, planet type |

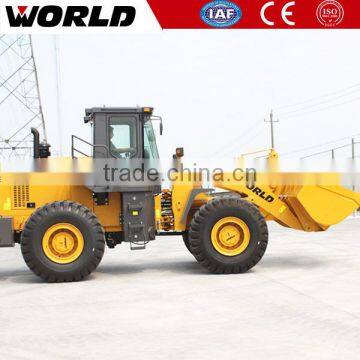

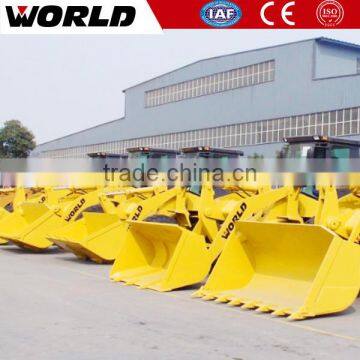

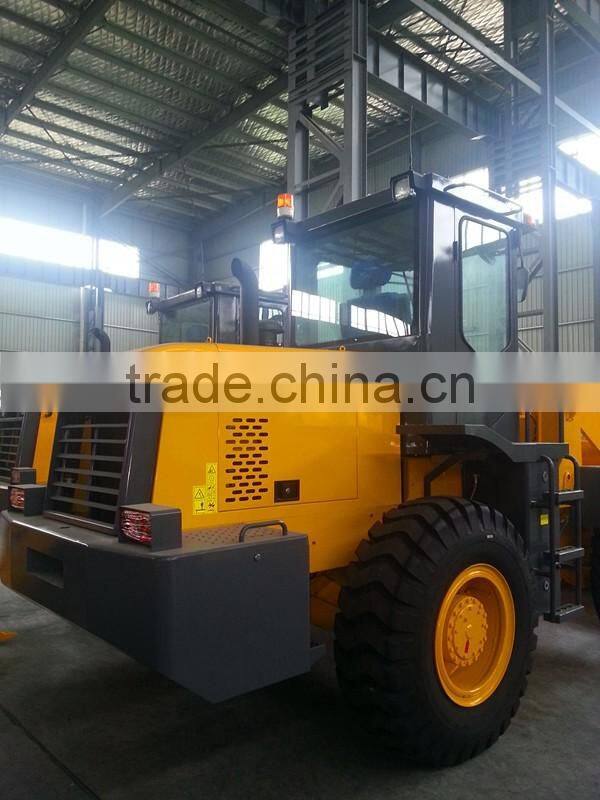

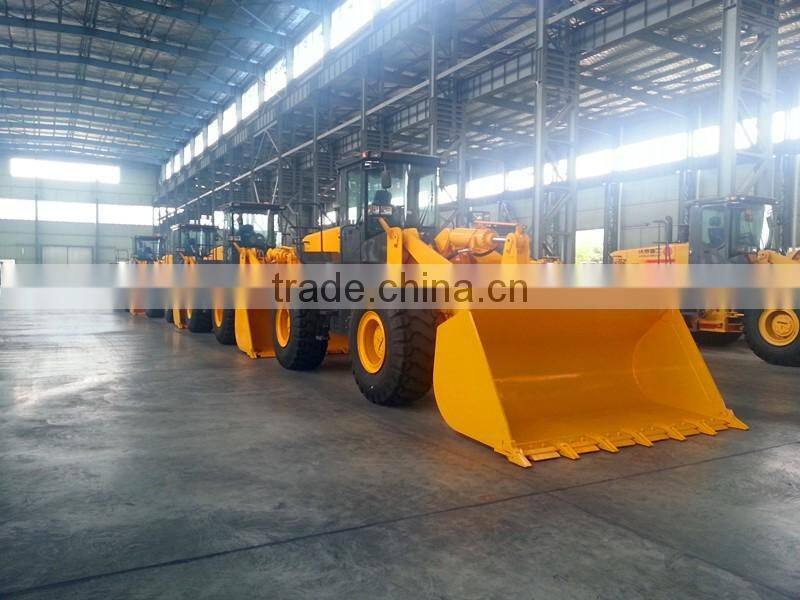

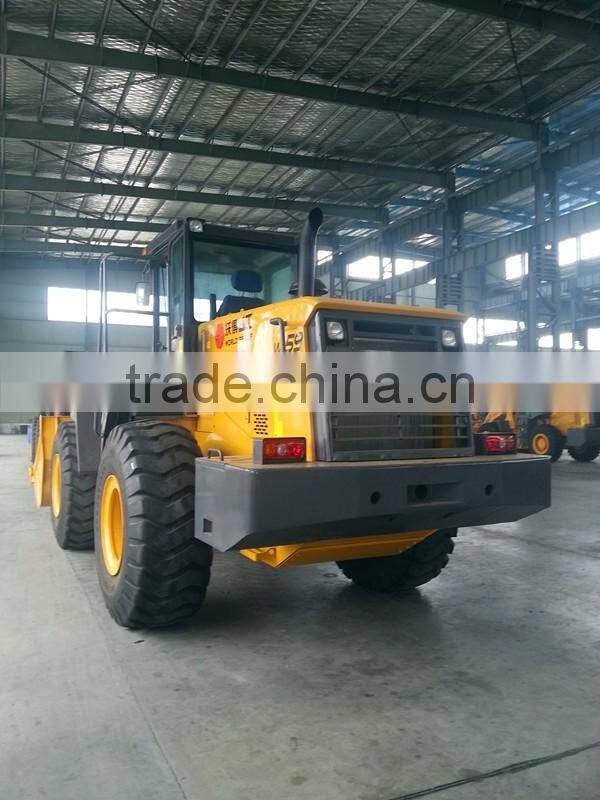

Photo of road construction machinery 5ton wheel loader prices(W156)

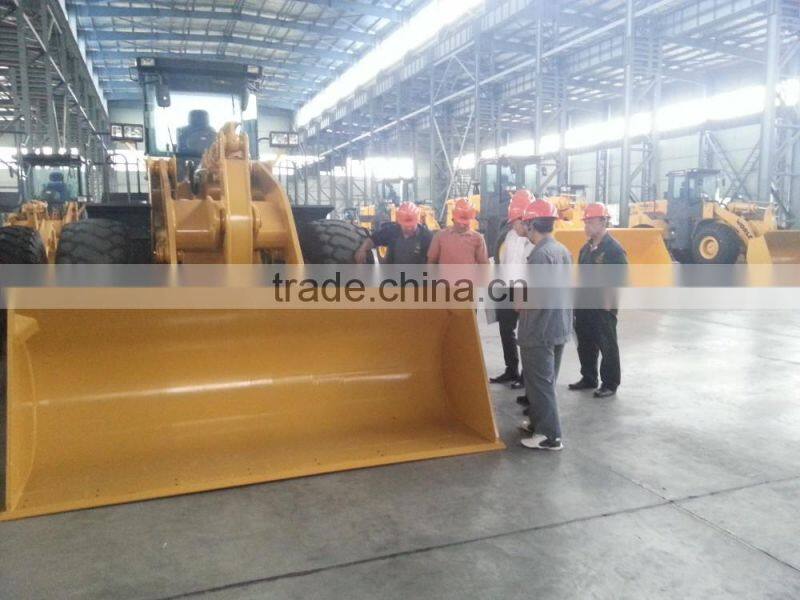

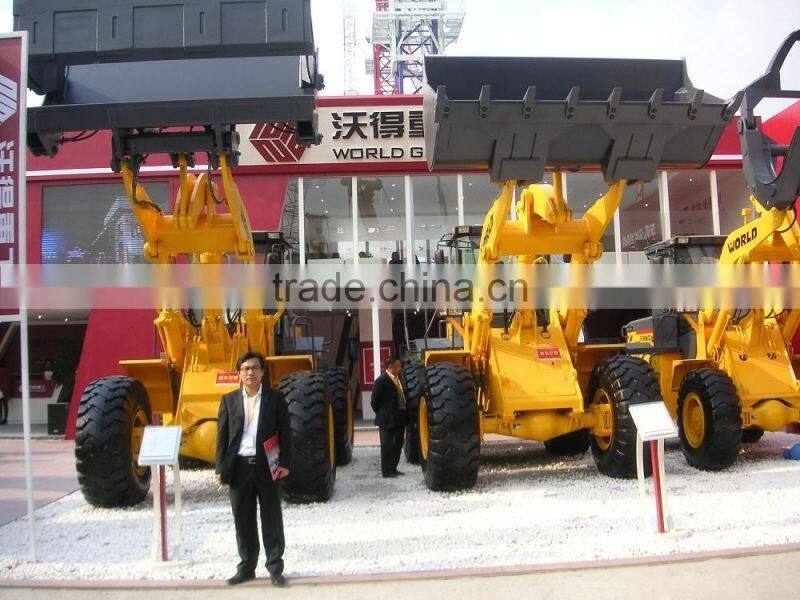

Clients Visit&Fair
Contact Us
- World Heavy Industry (China) Co., Ltd.
- Contact nameJack Ow Chat Now
- Phone86-21-62828320
- AddressPicheng Industrial Area, Zhenjiang, Jiangsu
