500ton Automatic Crank Press Mechanical Power Press Machine for Sale JW36-500

Product Description



H Frame Automatic Power Press Machine 400 ton JW36-400  Main Features of H Frame Automatic Power Press Machine 400 ton JW36-400:
1.Steel welded body, VSR(Vibratory Stress Relief);
2.Wet clutch, hydraulic overload protector;
3.Double crankshaft,
4.Quadranglar eight surfaces guideway;
5.Auto lubrication, electric die adjustment;
6.PLC control.

Standard Equipments:                                                                                   Optional Equipments:

1) Wet clutch                                                                                                    1) Dry clutch

2) PLC                                                                                                               2) Light curtain

3) Hydraulic overload protecting pump                                                             3) Inverter

4) Touch screen                                                                                                4) Variable speed motor

5)  Cam controller                                                                                              5) Foot pedal

6)  Die height adjusted motor                                                                             6) Cushion

7)  Auto lubrication system                                                                                7) Auto feeding shaft

8)  Manual lubrication system                                                                            8) NC feeder

9)  Double hand control panel                                                                            9) Die quick change device

10) Electronic crankshaft angle indicator

11) Predetermined counter

12) Balance cylinders for slide and upper die

13) Work light

14) Absorbing pads

H Frame Automatic metal punching Power Press Machine 400 ton JW36-400

	1.Steel welded body with high rigidity The main body is welded with high quality steel plate. Then it will be heat treated and ball blasting treated to release the stress and improve the rigidity. The best boring and milling machine ensures the high precision of the body. H Frame Automatic metal punching Power Press Machine 400 ton JW36-400
	2. High torque low noise wet clutch World produces the wet clutch. We use the best seals, bearing and friction discs. The wet cultch features lower noise and longer service life. H Frame Automatic metal punching Power Press Machine 400 ton JW36-400
	3. Double crankshafts Double crankshaft pitmen totally eliminate side forces by reverse rotation. The bigger table and slide area is better for big sheet metal punching or bending etc.
	4. High precision slide with hydraulic overload pump The eight faces guide rails provide higher accuracy and stability. The hydraulic overload pump can protect the press and the die if overload. You can reset the overload pump by the touch screen easily. A thin brake motor is equipped on the slide to adjust the slide easily.
	5. Easy and safe control The control panel includes double hand buttons and emergency stop button. And foot pedal control switch is optional. The touch screen includes the counter, crankshaft angle displayer, control switches and alarm lights. You can set the press with the touch screen and any defaults of the press can be checked with it. Hydraulic overload protected pump is used to protect the press and the die if the machine is overloaded. You can reset the overload with the switch on the touch screen easily.
	6. Separate electric box The press is equipped with a separate electric box to avoid the shocking influence. Famous brand PLC and contactors ensure better stability and reliability. H Frame Automatic metal punching Power Press Machine 400 ton JW36-400

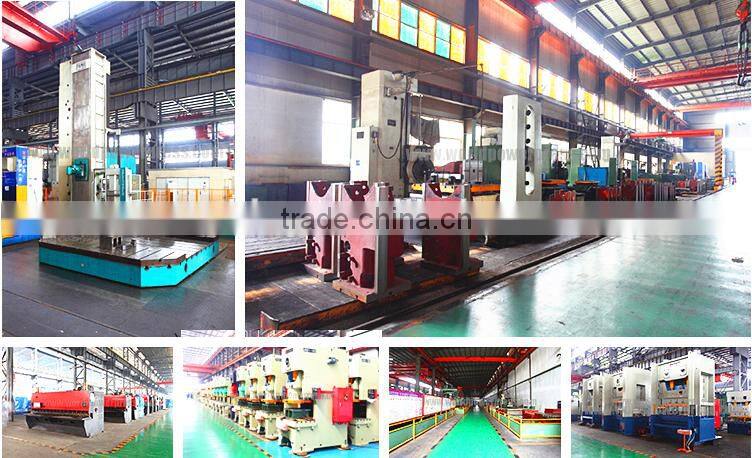

	7. High precision processing equipment The famous Pama brand boring and milling machine ensures the high precision of the press frame and slide. H Frame Automatic metal punching Power Press Machine 400 ton JW36-400

Specifications of mechanical H Frame Automatic metal stamping Power Press Machine 400 ton JW36-400

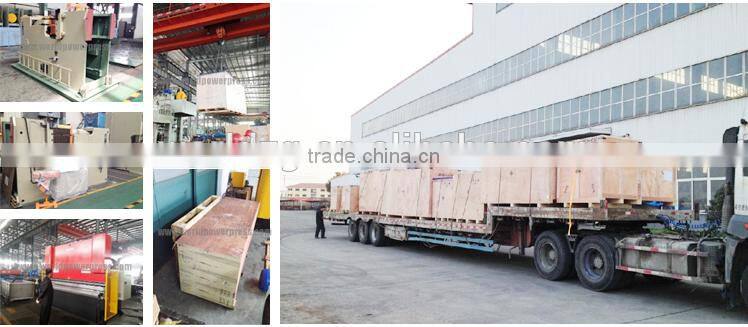

Packaging & Shipping



customers +tade show
