QLN404 Mini Wheel Farm Tractor Cabin
US$ 4,960 - 8,560
/ Set
1 Set(Min. Order)
- Qingdao/Tianjin/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
QLN404 Mini Farm Equipment and Tractores+chinos for Sale
-
QLN404 Mini Farm Equipment and Tractors for Sale
-
QLN 304 Farm Wheel Mini Farmtrac Tractors
-
QLN 304 Farm Wheel Tractor Mini Farm Tractores
-
QLN 304 Farm Wheel Tractor and Farm Poultry Equipment for Sale
-
QLN 304 Farm Wheel Tractor With Farm Tools and Equipment
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 29.4 | |
| Certificate | Other, ISO9001:2008 | Brand Name | Qianli Niu | |
| Model Number | QLN | Place of Origin | Henan, China | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
mini wheel farm tractor cabinDouble-cylinder hydraulic steering
Gear box withF8+R4
Dual plates oil-bath discbrake
QLN mini wheel farm tractor cabin
Detailed description
- F8+R4 gear change, all gears are arranged in order, good adaptability in all agriculture conditions.
- 540/1000rpm, 760/1000rpm double speed PTO systems, high operation efficiency.
- Closed paddy rice front drive axle, high operation efficiency and suitable for paddy operation.
- Optional air brake can complete more farm work and transport operation.
- Reinforced PTO shaft, hi-reliability.

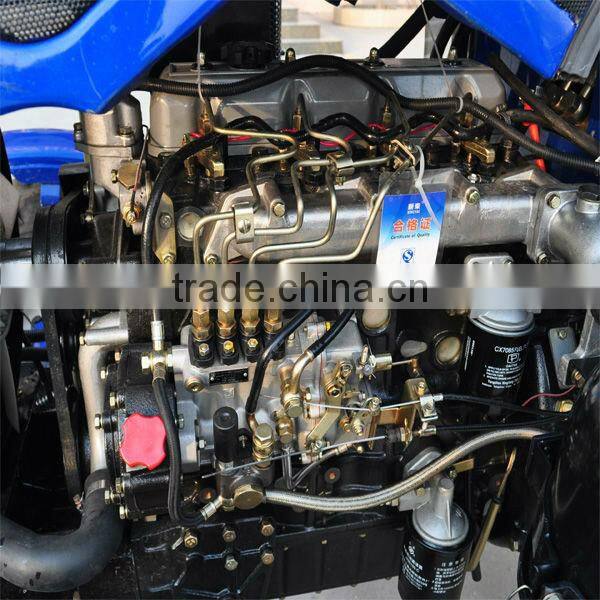

- Can install famous domestic engines like Guangxi Yuchai, YTO Brands, powerful and reliable.

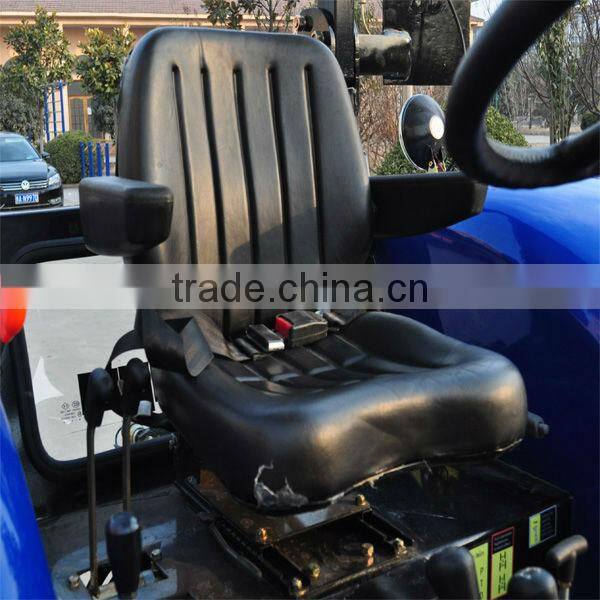

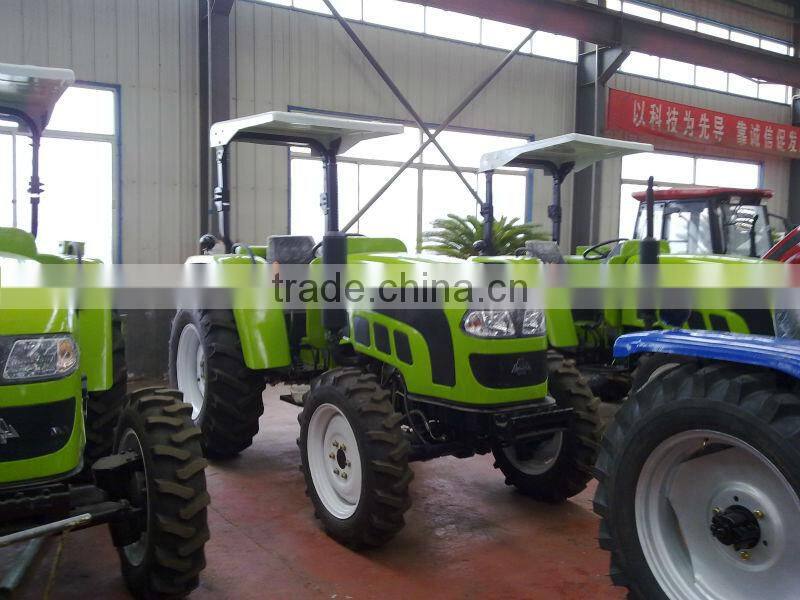

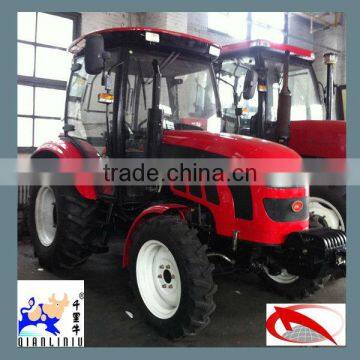

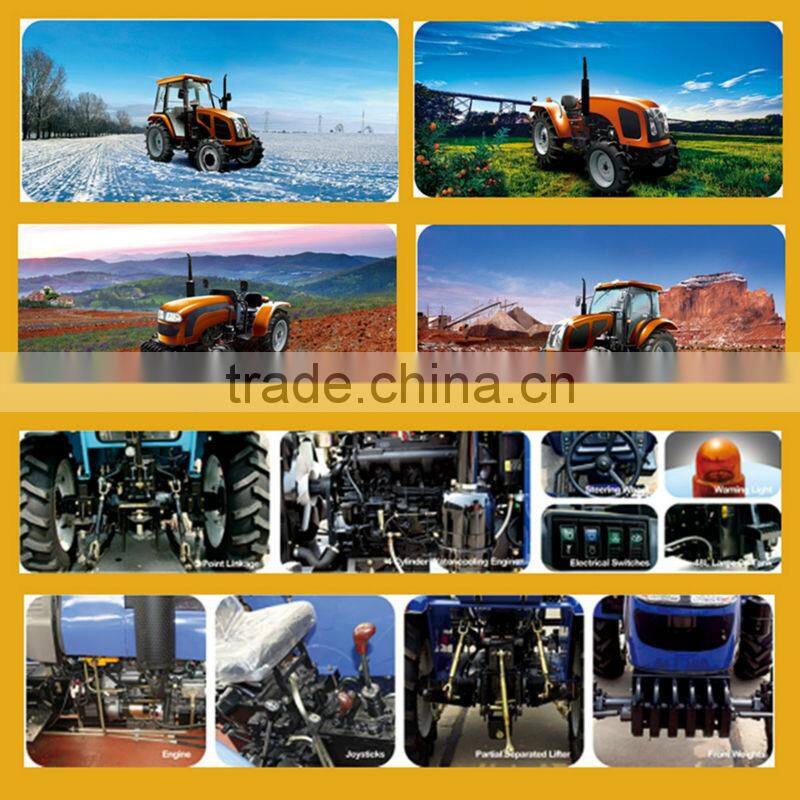

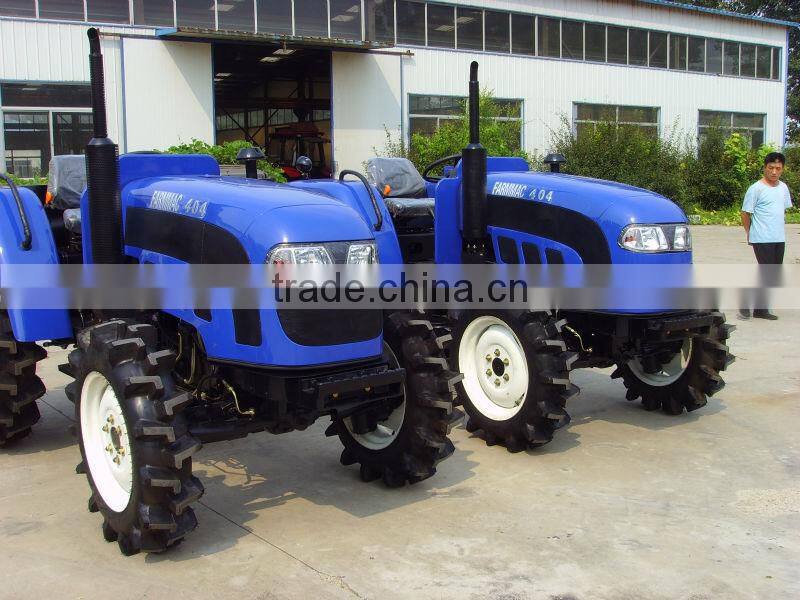

Pictures
Technical parameters
| Basic configuration | |||
| Model | QLN-550B/554B | ||
| Dimensions | Length×Width×Height(mm) | 3615×1750×2150 | |
| Wheel Tread(mm) | Front Wheel(mm) | 1300 | |
| Rear Wheel(mm) | 1300—1500 1300 nomally | ||
| Min.Ground Clearance(mm) | 325 | ||
| Dry Mass | Complete tractor weight(KG) | 2280 | |
| Engine | Trade Mark or Brand | JIANGDONG/XINCAI | |
| Engine Model | Vertical Water Cooled 4-stroke | ||
| Directly Injection | |||
| Number of Cylinder | 4 | ||
| Cooling System Type | Water Cooled | ||
| Rated Power(kw) | 29.4KW | ||
| Rated Speed(r/min) | 2200(YCD4J11T-65),2300(YT4A2-23) | ||
| Fuel Tank | Volume(L) | 43 | |
| Transmission System | Clutch | Single,Dry,Dual Stage Type | |
| Gear Box | F8+R4 | ||
| Differential | Closed 4-planetary Gears | ||
| Differential Lock | Mechanical Sliding Sleeve | ||
| Braking System | Mechanical,dry type | ||
| Running System | Tyre Model | F/R(2WD) | 6.0—16/12.4—28 |
| F/R(4WD) | 8.3—20/12.4—28 | ||
| Steering System | Mechanical for 2wd tractor and Hydraulic steering for 4wd tractor | ||
| Working Device | Hydraulic System Type | Partial seperated lifter | |
| Linkage Type | I Rear Mount 3-point Linkage | ||
| PTO(Standard) | Φ38×8 or Φ35×6 or Φ34.67×21 | ||
| PTO Speed(r/min) | 540/760 | ||
| Drawbar Type | Fixed Drawbar | ||
| Optional configuration | |||
| Cab with Heater | Multiple Unit Valve | ROPS | Sunvisor |
| Adjustable Comfort Seat | Paddy Tyre | Heater | Swing Drawbar |
| PTO Speed(r/min):540/1000 760/1000 | |||
| Bob-weight | Frontballest | 8×10=80kg 10kg/pcs | |
| Rearballast | 2×30=60kg 30kg/pcs | ||
Main types
QLN has over 70 types tractors mainly in 6 series.
1. 35 series 250-354 (from 25hp-35hp 2/4wd)
2. 40 series 400-554B (from 40hp-55hp 2/4wd)
3. 50 series 550-654 (from 55hp-65hp 2/4wd)
4. 80B series 700-854B (from 70hp -85hp 2/4wd)
5. 80A series 800-1004 (from 80hp-100hp 2/4wd)
6. 100 series 1104-1304 (from 110hp-130hp 4wd)

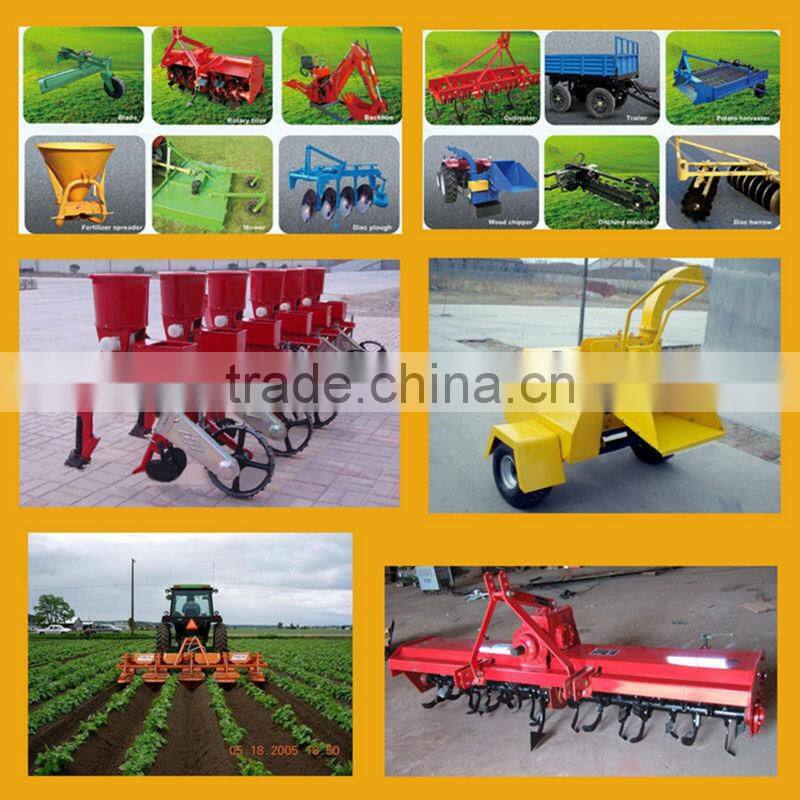

Matched implements
Our clients
Our honors
Our company
please feel free to contact us, we will try our best to meet your needs !!!
looking forward to cooperating with you !!!
