Home > Products > sugar cane loader > cane grapple wheel loader with sugar cane loader
cane grapple wheel loader with sugar cane loader
US$ 33,000 - 35,000
/ Set
1 Set(Min. Order)
- qingdao or tianjin
- T/T
You May Like
-
sugar cane wheel loader and excavator attachments
-
sugar cane front loader with hydraulic rotation grapple for sale
-
china popular sugar cane grapple loader with cheap price for sale
-
second hand used japan engine suagr cane loader wheel excavator for sale
-
sugar cane grapple wheel loader and excavator for sale
-
wolwa 7.8 ton wheeled sugarcane wood loader DLS880-9AG
Product Details
| Condition | New | Brand Name | wolwa | |
| Model Number | DLS880-9AG | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 6300mm2000mm2700mm | Rated Load | 500kg | |
| Certification | iso ce | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

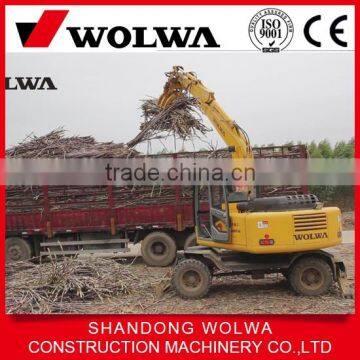

PRODUCTS PHOTO:
1.A strong energy-saving power system
2.operation environment is comfortable,safe,convenient.
3.intelligent operation and display the humanized design,convenient for maintenance and repair.
4.imported international brands of hydraulic components,small power loss,rapid operation.
5.boom,arm and bucket work device,strengthening,can ensure large mining force in bad working condition.
|
PRODUCTS SPECIFICATION:
| The Parameter of DLS880-9A Loader | |||
| wheel hydraulic loader | unit | DLS880-9A | |
| motor | model | Xinchai | |
| hydraulic pump | model | SHIMADZU Japan | |
| main val | model | Korea imported | |
| Operating weight | kg | 7200 | |
| power | kw/rpm | 48/2300 | |
| Dimensions | overall width | mm | 2000 |
machine height (the top of the device) | mm | 2710 | |
| overall length | mm | 6321 | |
machine height (the top of the swing arm) | mm | 2730 | |
| ground clear ance(bob-weight) | mm | 985 | |
| min.ground clearnce | mm | 280 | |
| tyre gauge | mm | 1560 | |
| wheel shaft diameter | mm | 2310 | |
| mouldboard width | mm | 2024 | |
| mouldboard height | mm | 310 | |
| outline dimension | mm | 1500*1020*1600 | |
| opening width | mm | 1266 | |
| grab weight | kg | 390 | |
| Operating scope | boom length | mm | 3500 |
| arm length | mm | 2000 | |
| max.loading range | mm | 7439 | |
| max.loading weight | kg | 460 | |
| max.dischargging height | mm | 6639 | |
| Specifications | working pressure | Mpa | 22 |
| rated flow | L/min | 55*2 | |
| swing speed | rpm | 9.2 | |
| travel speed | Km/h | 0~30 | |
| buckte digging force | KN | # | |
| arm digging force | KN | # | |
| max.hauling force | KN | 43.2 | |
| max.torque | N.m/rpm | 230/1800 | |
| gradeability | . | 20 | |
| fuel tank | L | 125 | |
| hydraulice oil tank | L | 105 | |
| rated acpacity | ml/r | 2*25 | |
