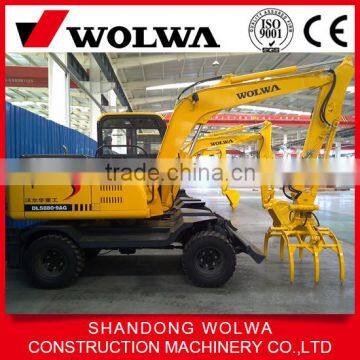

rotation grapple cane loader with excavator function
US$ 33,000 - 35,000
/ Set
1 Set(Min. Order)
- qingdao or tianjin
- T/T
You May Like
-
sugar cane loader with hydraulic grapple
-
china factory sugar cane loader and hydraulic system on sale
-
small wheel grapple loader with back fixed leg and front blade
-
log loader with grap excavator with grapple on sale
-
small log loader with rotation grapple with cheap price on sale
-
log and cane grapple loader with hydraulic systen on sale
Product Details
| Condition | New | Brand Name | wolwa | |
| Model Number | DLS880-9AG | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 6300mm2000mm2700mm | Rated Load | 500kg | |
| Certification | iso ce | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PRODUCTS PHOTO:
1.A strong energy-saving power system
2.operation environment is comfortable,safe,convenient.
3.intelligent operation and display the humanized design,convenient for maintenance and repair.
4.imported international brands of hydraulic components,small power loss,rapid operation.
5.boom,arm and bucket work device,strengthening,can ensure large mining force in bad working condition.
|
PRODUCTS SPECIFICATION:
| The Parameter of DLS880-9A Loader | |||
| wheel hydraulic loader | unit | DLS880-9A | |
| motor | model | Xinchai | |
| hydraulic pump | model | SHIMADZU Japan | |
| main val | model | Korea imported | |
| Operating weight | kg | 7200 | |
| power | kw/rpm | 48/2300 | |
| Dimensions | overall width | mm | 2000 |
machine height (the top of the device) | mm | 2710 | |
| overall length | mm | 6321 | |
machine height (the top of the swing arm) | mm | 2730 | |
| ground clear ance(bob-weight) | mm | 985 | |
| min.ground clearnce | mm | 280 | |
| tyre gauge | mm | 1560 | |
| wheel shaft diameter | mm | 2310 | |
| mouldboard width | mm | 2024 | |
| mouldboard height | mm | 310 | |
| outline dimension | mm | 1500*1020*1600 | |
| opening width | mm | 1266 | |
| grab weight | kg | 390 | |
| Operating scope | boom length | mm | 3500 |
| arm length | mm | 2000 | |
| max.loading range | mm | 7439 | |
| max.loading weight | kg | 460 | |
| max.dischargging height | mm | 6639 | |
| Specifications | working pressure | Mpa | 22 |
| rated flow | L/min | 55*2 | |
| swing speed | rpm | 9.2 | |
| travel speed | Km/h | 0~30 | |
| buckte digging force | KN | # | |
| arm digging force | KN | # | |
| max.hauling force | KN | 43.2 | |
| max.torque | N.m/rpm | 230/1800 | |
| gradeability | . | 20 | |
| fuel tank | L | 125 | |
| hydraulice oil tank | L | 105 | |
| rated acpacity | ml/r | 2*25 | |
