Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | WOLWA | Model Number | GN15H | |
| Type | Other, electric | Power Souce | Other, battery | |
| Rated Loading Capacity | 1.5T | Overall Dimensions | 3137*1100*2090mm | |
| Certification | ISO9001,CE | After-sales Service Provided | Overseas service center available |
Product Description
high quality electric forklift from china

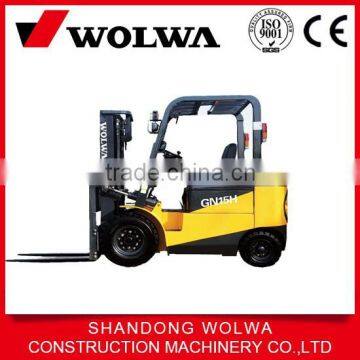

electric forklift GN15H introduction
The electric forklift truck driven by electricity,Compared with diesel forklift,Has the advantages of no
pollution,easy operation, energy efficient.The operator's work intensity is much lighter than
internal-combustion forklift.The electric steering system,Speed control system,hydraulic control
system,braking systems Are controlled by electrical signals.Greatly reduces the labor intensity of
operators.So this supply big help to improve its efficiency and the accuracy of work .
electric forklift GN15H feature
1.Reliable performance of the ac walking motor, no carbon brush, maintenance free
2.The performance of dc motor at low speed and low noise of gear pump.Cancel the steering motor and
oil pump.To achieve single pump bypass.Lowering the hoisting and in the form of noise of the vehicle.
3.Advanced and reliable electric control system,High efficiency and low fever, little noise,With thermal
protection and thermal compensation, overvoltage, undervoltage protection.
4.User-friendly interactive multifunction meter,Appearance is beautiful,Can accurately display battery power,
working time, fault code, etc
Main parameter
| Specification | Model | GN15H | Unit | ||
| Rated load | 1500 | Kg | |||
| Load center | 500 | mm | |||
| Type | Battery | ||||
| Size | Lifting height | 3000 | mm | ||
| Mast tilt F/R | 6/12 | deg | |||
| Dimension | Total length | 3137 | mm | ||
| Total width | 1100 | mm | |||
| Total height | 2090 | mm | |||
| Min. turning radius | 1900 | mm | |||
| Performance | Max. travel speed (full load/idle load) | 12/13 | Km/h | ||
| Max. lifting speed (full load/idle load) | 280/430 | mm/s | |||
| Max. Grade ability | 15 | % | |||
| Machine weight | 3280 | kg | |||
| Chassis | Tyre | Front wheel | 6.50-10NHS | ||
| Rear wheel | 5.00-8-8PR | ||||
| Axle base | 1380 | mm | |||
| Battery | Voltage/capacity | 48/440 | V/Ah | ||
| Electric motor and control | Power of drive motor | 7.5(AC) | Kw | ||
| Power of pump motor | 6.3(DC) | Kw | |||
| Control mode | MOS tube | Kw/rpm | |||
