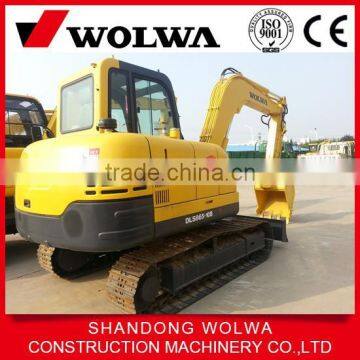

small crawler track excavator with japan engine
USD $33,000 - $36,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- qingdao or tianjin
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | WOLWA | |
| Model Number | DLS865-10b | Condition | New | |
| Moving Type | Crawler Excavator | Operating Weight | 5850kg | |
| Bucket capacity | 0.22 cbm | Maximum Digging Height | 6369mm | |
| Maximum Digging Depth | 3331mm | Machine Weight | 5800kg | |
| Max Digging Radius | 5919mm | Rated Speed | 20-30km/h | |
| Certification | iso & ce | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PRODUCTS DISPLAY:
|
PRODUCTS SPECIFICATION:
| The Parameter of DLS865-9A | |||
| wheel hydraulic excavator | unit | DLS865-9A | |
| motor | model | Xinchai | |
| hydraulic pump | model | SHIMADZU Japan | |
| main val | model | Korea imported | |
| Operating weight | kg | 5800 | |
| volume of bucket | m³ | 0.24 | |
| power | kw/rpm | 40 or 48/2300 | |
| Dimensions | overall width | mm | 2000 |
machine height (the top of the device) | mm | 2710 | |
| overall length | mm | 5365 | |
machine height (the top of the swing arm) | mm | 2454 | |
| ground clear ance(bob-weight) | mm | 985 | |
| min.ground clearnce | mm | 280 | |
| tyre gauge | mm | 1560 | |
| wheel shaft diameter | mm | 2310 | |
| mouldboard width | mm | 2024 | |
| mouldboard height | mm | 310 | |
| Operating scope | boom length | mm | 2880 |
| arm length | mm | 1845 | |
| max.digging reach | mm | 5915 | |
| max.digging depth | mm | 3331 | |
| max.digging height | mm | 6369 | |
| max.dumping height | mm | 4615 | |
| min.swing radius | mm | 2020 | |
| rear-end seingradius | mm | 1751 | |
| max.flooring reach | mm | 5747 | |
| Specifications | working pressure | Mpa | 19 |
| rated flow | L/min | 44+50 | |
| swing speed | rpm | 9.2 | |
| travel speed | Km/h | 0~30 | |
| buckte digging force | KN | 30 | |
| arm digging force | KN | 18 | |
| max.hauling force | KN | 34.8 | |
| max.torque | N.m/rpm | 199/1650 | |
| gradeability | . | 20 | |
| fuel tank | L | 125 | |
| hydraulice oil tank | L | 105 | |
| rated acpacity | ml/r | 20+23 | |
