construction machines diggers excavator for sale

FOB Price

USD $33,000 - $35,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	WOLWA
Model Number	DLS880-9A	Condition	New
Moving Type	Wheel Excavator	Operating Weight	8000kg
Bucket capacity	0.3 cbm capacity	Maximum Digging Height	6756mm
Maximum Digging Depth	4721mm	Machine Weight	7600kg
Max Digging Radius	6758mm	Rated Speed	20 to 30 km/h
Certification	iso & ce	After-sales Service Provided	Engineers available to service machinery overseas

PRODUCTS PHOTO:

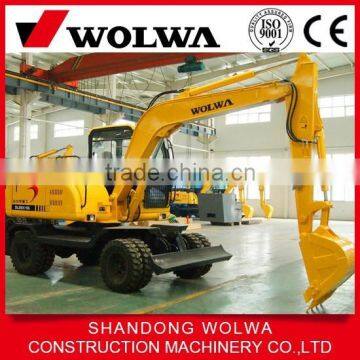

1.hydraulic wheel excavator 8 ton,can mounted grabber.

2.china brand engine.

3.main valve imported from korea.

PRODUCTS SPECIFICATION:

The Parameter of DLS880-9A
wheel hydraulic excavator		unit	DLS880-9A
motor		model	Xinchai
hydraulic pump		model	SHIMADZU Japan
main val		model	Korea imported
Operating weight		kg	7200
volume of bucket		m³	0.3
power		kw/rpm	48/2300
Dimensions	overall width	mm	2000
	machine height (the top of the device)	mm	2710
	overall length	mm	6355
	machine height (the top of the swing arm)	mm	2617
	ground clear ance(bob-weight)	mm	985
	min.ground clearnce	mm	280
	tyre gauge	mm	1560
	wheel shaft diameter	mm	2310
	mouldboard width	mm	2024
	mouldboard height	mm	310
Operating scope	boom length	mm	3500
	arm length	mm	2000
	max.digging reach	mm	6758
	max.digging depth	mm	4721
	max.digging height	mm	6756
	max.dumping height	mm	4956
	min.swing radius	mm	2431
	rear-end seingradius	mm	1951
	max.hade digging depth	mm	4481
	max.flooring reach	mm	6603
Specifications	working pressure	Mpa	22
	rated flow	L/min	55*2
	swing speed	rpm	9.2
	travel speed	Km/h	0~30
	buckte digging force	KN	50
	arm digging force	KN	25
	max.hauling force	KN	43.2
	max.torque	N.m/rpm	230/1800
	gradeability	.	20
	fuel tank	L	125
	hydraulice oil tank	L	105
	rated acpacity	ml/r	2*25
