Hot sale SINOTRUK HOWO 6x4 Dump Truck ZZ3257N3447A1 Loading Capacity 18CBM
- Shanghai Port
- T/T Credit Card
You May Like
-
SINOTRUK HOWO ZZ3317N3867W 8X4 Dump Truck For Sale
-
Cheap Price SINOTRUK HOWO ZZ3257N3647A Tipper Truck Hot Sale in Ethiopia
-
Cheap Price 25 Ton SINOTRUK HOWO 6X4 Dump Truck ZZ3257N3647A
-
Tractor Road Broom for road construction YRS1500
-
China cheap price Tractor Road Sweeper YRS1500
-
Road Sweeper Tractor YRS1500
Product Details
Place of Origin | Shandong, China | Brand Name | SINOTUCK HOWO | |
Model Number | ZZ3317N3867W |
Product Description

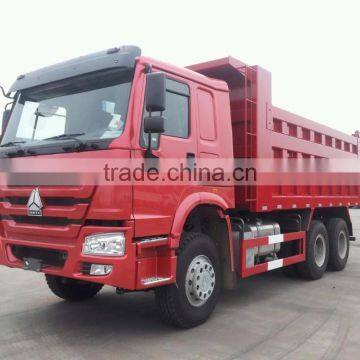

Hot sale SINOTRUK HOWO 6x4 Dump Truck ZZ3257N3447A1
30 Ton Dump Truck Loading Capacity 18CBM
Truck Model | ZZ3257N3447A1 | |||
Dimension(Lx W xH)(unloaded)(mm) | 7835×2496×3386 | |||
Cargo body size (LxWxH) (mm) | 5200x2300x1350, T middle lift,bottom 8mm, side 6mm | |||
Approaching angle/Departure angle(°) | 19/27 | |||
Overhang(front/rear) (mm) | 1500/1560 | |||
Wheel base (mm) | 3425+1350 | |||
Max speed(km/h) | 75 | |||
Curb weight(kg) | 12380 | |||
Loading Weight(kg) | 12490 | |||
Engine (Steyr technology, made in China) | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | ||
| Fuel type | Diesel | ||
| HorsePower, max(kw/rpm) | 336HP,247/2200 | ||
| Emission | EURO2 | ||
Fuel tanker capacity (L) | 300 | |||
Transmission | Model | HW15710 | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | ||
Steering system | Model | ZF8098 | ||
Front axle | HF9 Drum, Steering with double T-cross section beam | |||
Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels | |||
Tyre | 12.00R20, radial tire | |||
Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
Cab | HOWO76 cab, single-sleeper, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
